Detail SIM808 Development Board GSM GPRS GPS Bluetooth SMS Module for arduino

Features:

Voltage Range:5-18V
Lithium Battery Interface Voltage:3.4-4.4V
Operating Temperature:-40to+85℃
Storage Temperature：-45to+90℃
Size:50*50mm
GSM/GPRS Characteristic:
Bands: GSM 850,EGSM900,DCS 1800,PCS 1900
Transmit Power:
Class 4(2W)at GSM 850 and EGSM 900
Class 1(1W)at DCS 1800 and PCS 1900
GPRS Transmission Rate:
GPRS Downlink Data Transmission：max.85.6kbps
GPRS Uplink Data Transmission: max.85.6kbps
SIM Card Interface:
Support SIM card:1.8V,3V
Support 2G/3G/4G Mobile Unicom card
Serial Port:Support baud rate auto recognization
Rate:1200-115200bps
GPS Characteristic:
Horizontal Accuracy:Speed Accuracy(DGPS):0.05m/s
Acceleration Accuracy(DGPS):0.05m/s⊃2;
Timing Accuracy：10ns
Power Consumption:Acquisition:42mA (3.8V at -130dBm,GSM IDLE)
Bluetooth Characteristic:
Integrated AT Command Control
Fully Compliant with Bluetooth specification 3.0+EDR
Fully Integrated PA provide 10dbm output power
Max. support 4 way ACL link

Package List:

1pcs Development Board SIM808 GSM GPRS GPS Bluetooth SMS Module

Gambar produk

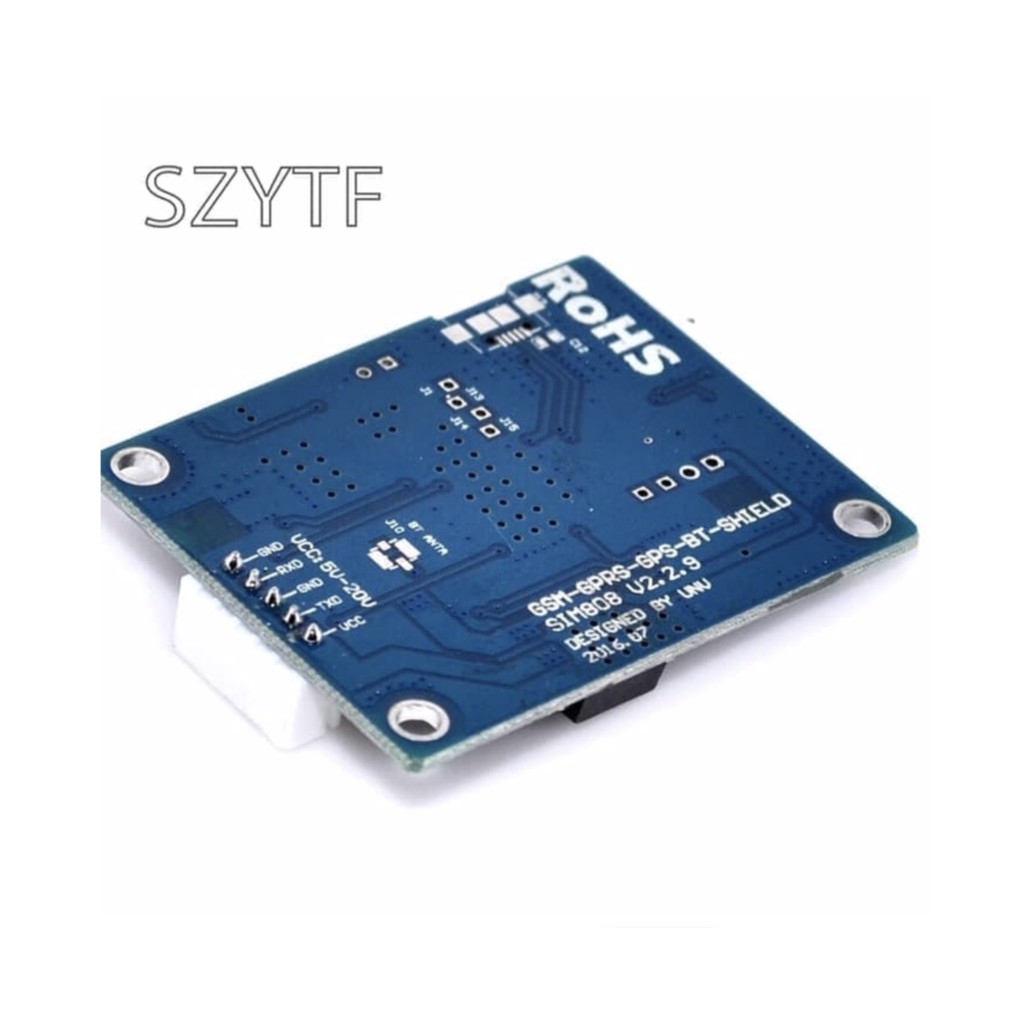

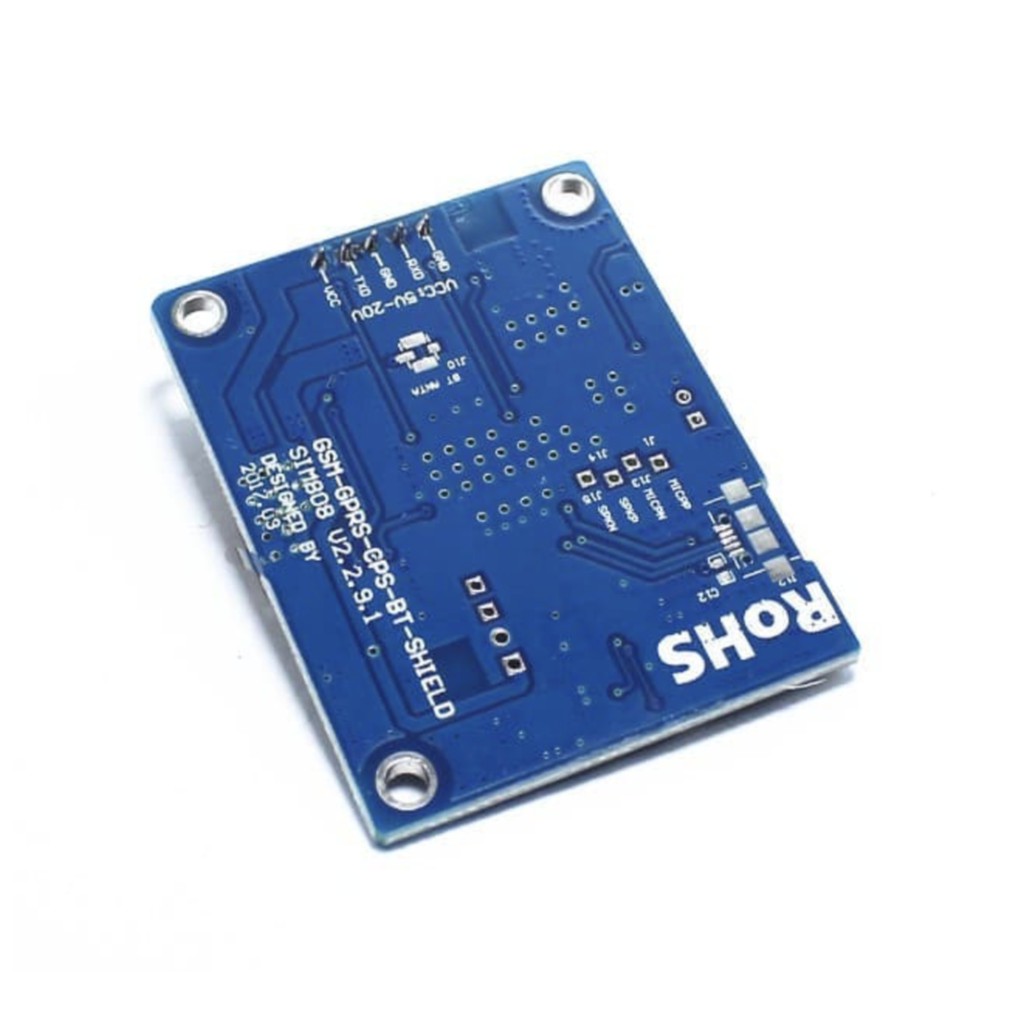

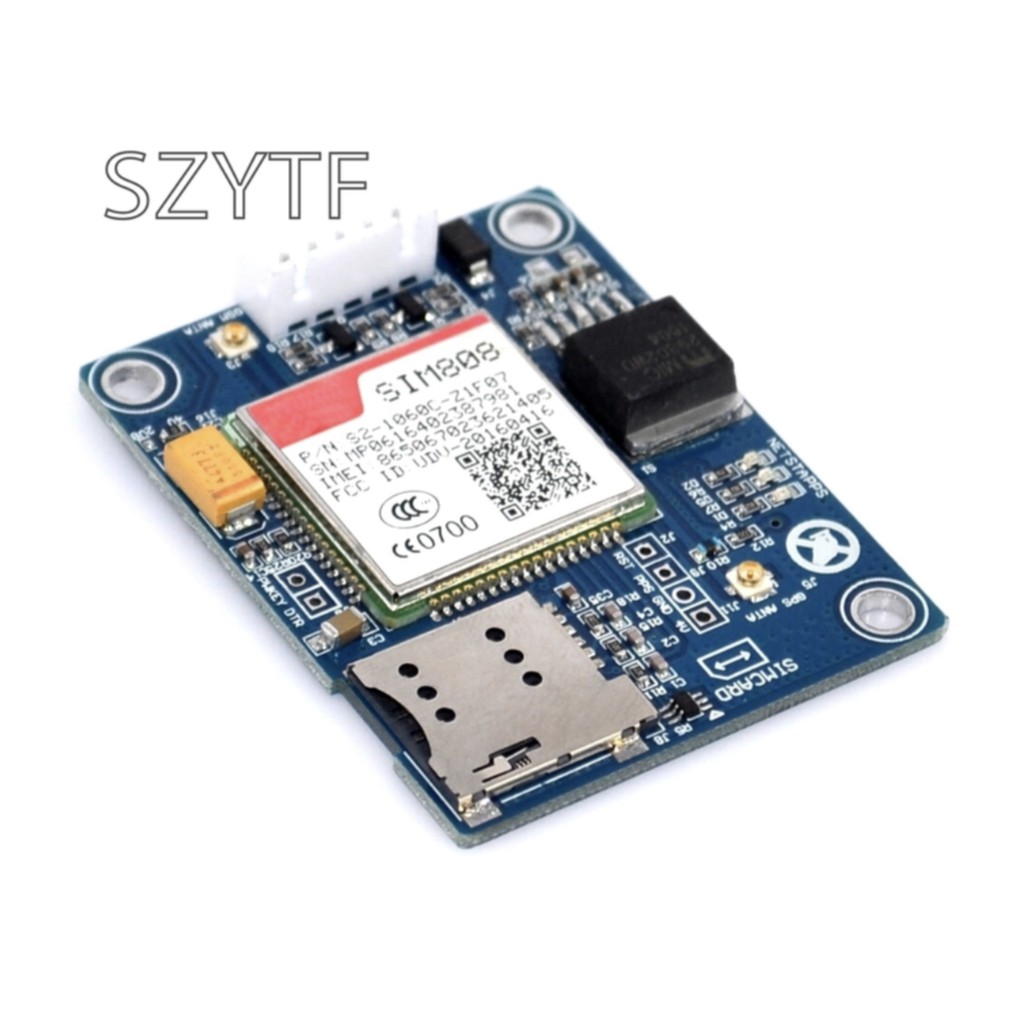

SIM808 Development Board GSM GPRS GPS Bluetooth SMS Module for arduino
SIM808 Development Board GSM GPRS GPS Bluetooth SMS Module for arduino
SIM808 Development Board GSM GPRS GPS Bluetooth SMS Module for arduino
SIM808 Development Board GSM GPRS GPS Bluetooth SMS Module for arduino
SIM808 Development Board GSM GPRS GPS Bluetooth SMS Module for arduino
SIM808 Development Board GSM GPRS GPS Bluetooth SMS Module for arduino
