SIM800L SIM800 GPRS GSM MINI BREAKOUT MODULE

Elektronik > Elektronik Lainnya > SIM800L SIM800 GPRS GSM MINI BREAKOUT MODULE
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail SIM800L SIM800 GPRS GSM MINI BREAKOUT MODULE

Hi #RekanEasyWare ...
EasyWare Part#: EP000439

*** Bismillah,
Semua produk SIM800L yang kami kirim sudah dites kembali oleh tim internal kami.

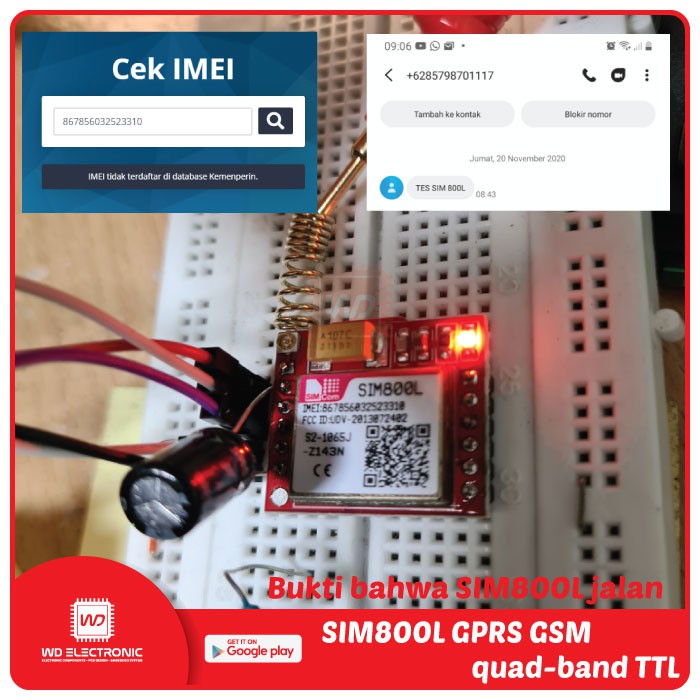

Kami sudah cek terlebih dahulu, bukti ada di gambar ke dua dan bukti ada di video. Untuk hasil maksimal silahkan tambahkan Elco 470uf-16v. ***

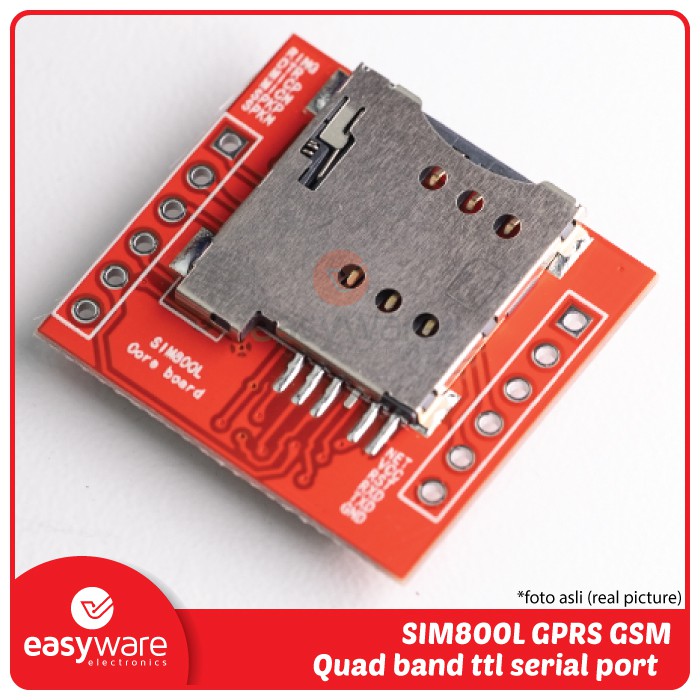

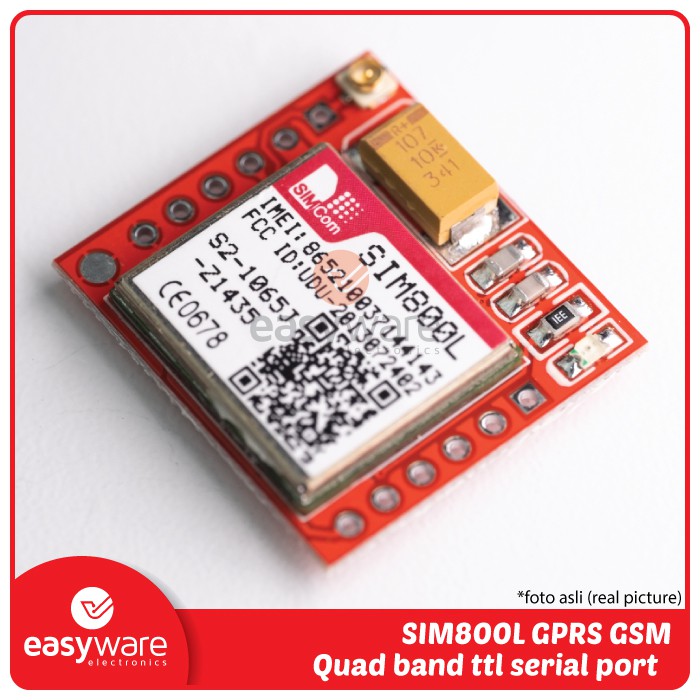

This SIM800 or SIM800L Mini GPRS GSM Breakout Module is based on SIM800L module, supports quad-band GPRS/GSM network, available for GPRS and SMS message data remote transmission.
The board features compact size and low current consumption. With power saving technique, the current consumption is as low as 1mA in sleep mode.
It communicates with microcontroller via UART port, supports command including 3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands.

FITUR DAN SPESIFIKASI :
* Quad-band 850/900/1800/1900Mhz
* Connect onto any global GSM network with any 2G SIM(in the USA, T-Mobile is suggested).
* Make and receive voice calls using a headset or an external 8 speaker and electret microphone.
* Send and receive GPRS data (TCP/IP, HTTP, etc.).
* Scan and receive FM radio broadcasts.
* Lead out buzzer and vibrational motor control port.
* AT command interface with auto baud detection.

KELENGKAPAN :

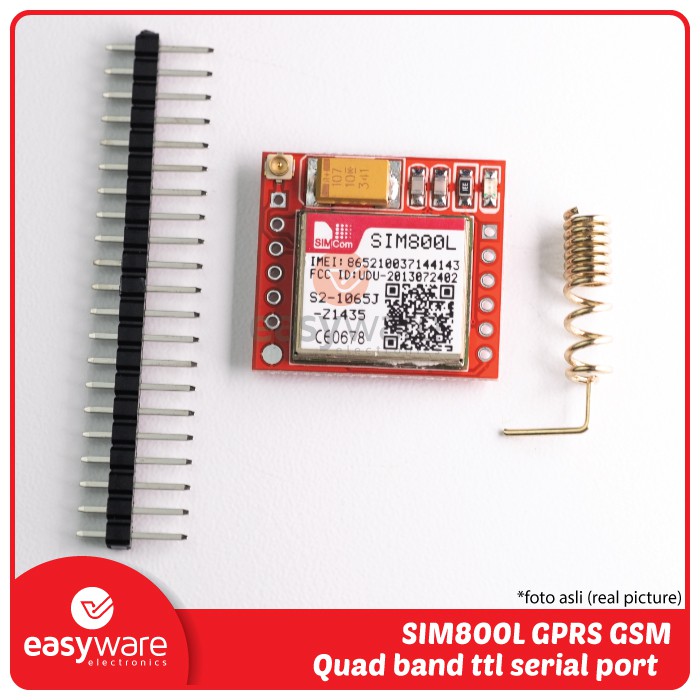

* 1pcs SIM800L Mini GPRS GSM Breakout Module

Gambar produk

SIM800L SIM800 GPRS GSM MINI BREAKOUT MODULE
SIM800L SIM800 GPRS GSM MINI BREAKOUT MODULE
SIM800L SIM800 GPRS GSM MINI BREAKOUT MODULE
SIM800L SIM800 GPRS GSM MINI BREAKOUT MODULE
SIM800L SIM800 GPRS GSM MINI BREAKOUT MODULE
SIM800L SIM800 GPRS GSM MINI BREAKOUT MODULE
SIM800L SIM800 GPRS GSM MINI BREAKOUT MODULE
SIM800L SIM800 GPRS GSM MINI BREAKOUT MODULE
