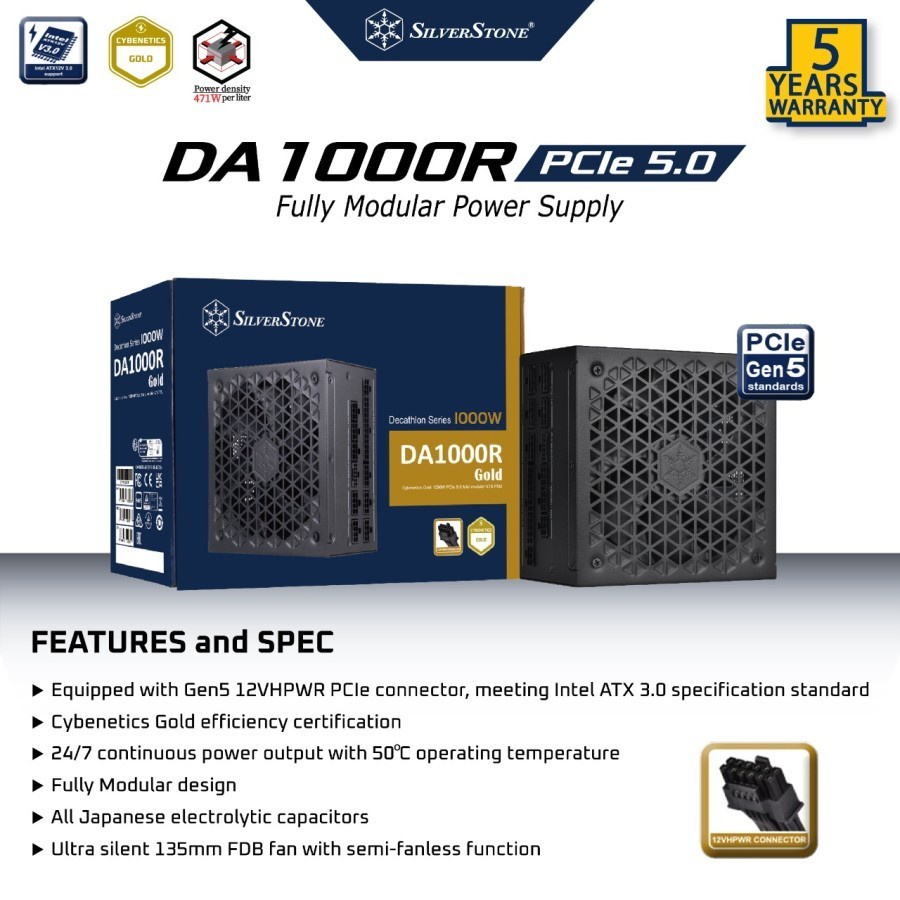

SilverStone DA1000R Cybenetics Gold - 1000W GM PCIe 5.0 PSU DA 1000R

Detail SilverStone DA1000R Cybenetics Gold - 1000W GM PCIe 5.0 PSU DA 1000R

*Notes
Untuk keamanan produk silahkan tambahkan buble ya
https://shopee.co.id/product/28339531/6732702209/

*Untuk keamanan produk yang cukup besar disarankan menggunakan packing kayu, untuk produk monitor, pc aio, pc build up, dan laptop wajib menggunakan packing kayu

*Packing kayu JNE gratis, tinggal dirubah berat volumetrik saja

*Ekspedisi lain silahkan menambah packing kayu di
https://shopee.co.id/product/28339531/6174009421/

*Silahkan tanyakan stok terlebih dahulu, karena stok terbatas


Spesifikasi:

GARANSI RESMI 5 TAHUN

Product No. : SST-DA1000R-GM

Model (safety certification) : SST-AX1000MCGD-A

Color : Black (lead-free paint)

Max. DC Output : 1000W

Power density ; 517W per liter

Load Range :
Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 22A 22A 83.5A 3A 0.3A
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±3% ±3% +5/-7% ±5% ±5%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 30mV 30mV 70mV 40mV 40mV

Combined +3.3V & +5V : 120W

Combined +12V : 1000W

Input Voltage ; 90 ~ 264 Vrms

Input Frequency Range : 47Hz ~ 63Hz

PFC : Active PFC (PF>0.9 at full load)

Efficiency : ≥87% & <89% overall efficiency

MTBF : 100,000 hours

Operating temperature : 0°C ~ 50°C

Protection :
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Under Voltage Protection
Over Temperature Protection
No load operation

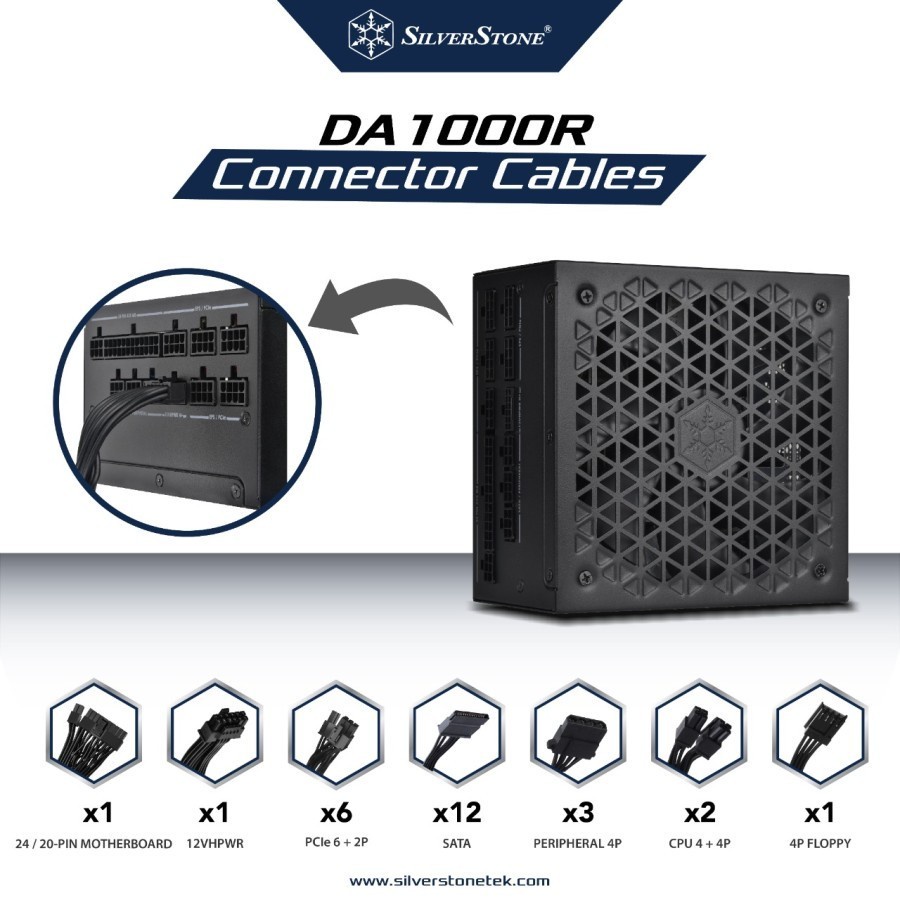

Connectors :
1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connector
6 x 8 / 6-Pin PCIe connectors

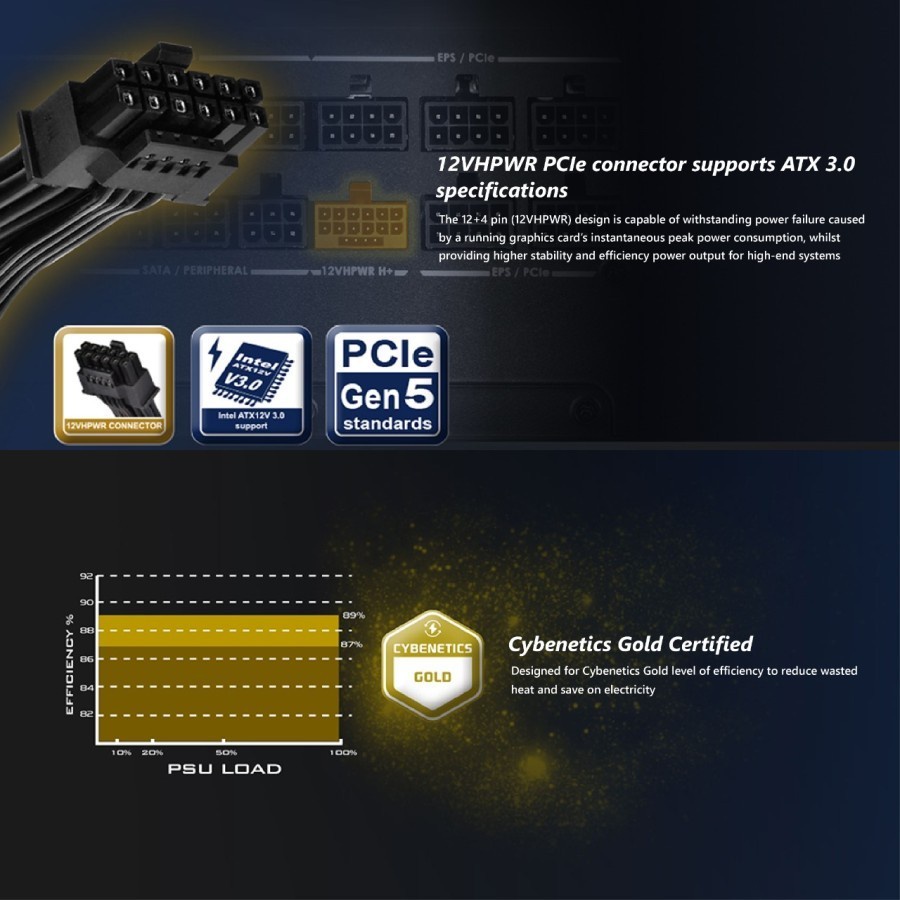

1 x 12+4-Pin 12VHPWR connector
12 x SATA connectors
3 x 4-Pin Peripheral connector
1 x 4-Pin Floppy connector

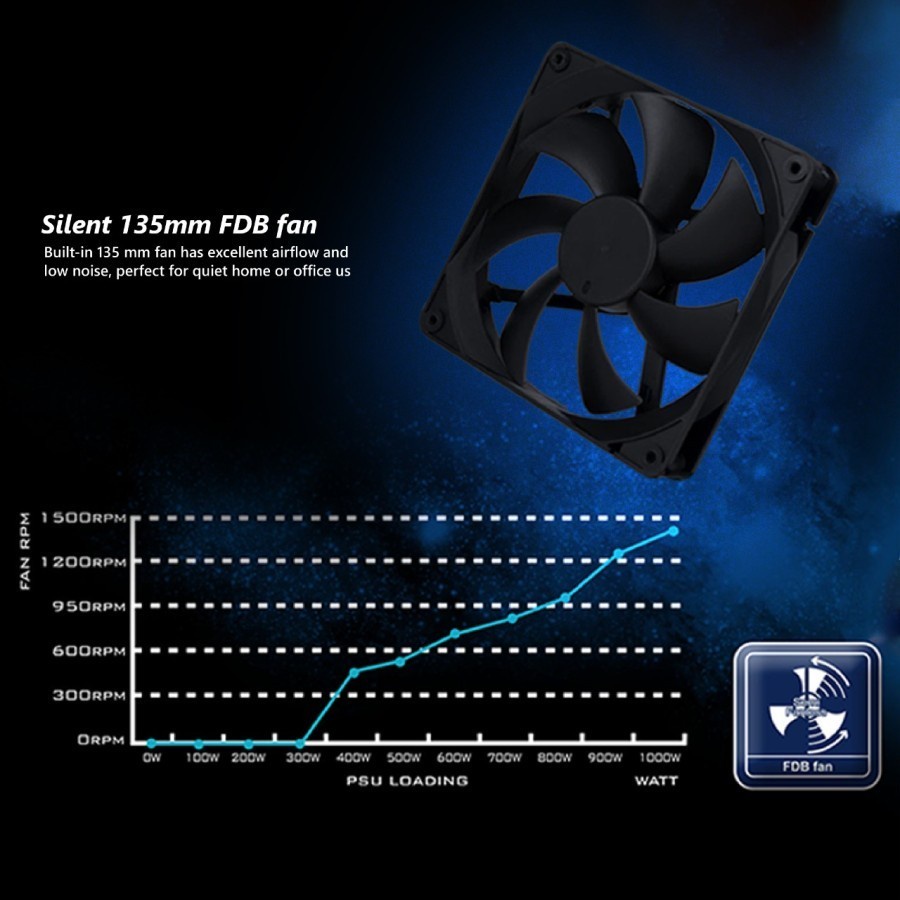

Cooling System : Silent 135mm FDB fan

Noise Level : 0 dBA minimum

Certification : Cybenetics Gold

Form factor : ATX (PS2)

Dimension ; 150mm (W) × 86mm (H) × 150mm (D)
5.91" (W) x 3.39" (H) x 5.91" (D)

Weight ; 2.88 kg

Gambar produk
