Signal Generator Current Voltage Calibrator 4-20mA/0-10V/mV LCD LB02

Detail Signal Generator Current Voltage Calibrator 4-20mA/0-10V/mV LCD LB02

Video perkenalan produk Signal Generator Current Voltage Calibrator 4-20mA/0-10V/mV LCD LB02. Sumber: Shopee.

Ready Stok langsung order saja
100% unit BARU
-----
Garansi quality CHECK sebelum kirim
GARANSI toko 1BULAN
-----
Dikirim dari JOGJA
Garansi packing AMAN (GRATIS bublewarp/kardus)

Process Calibrator multifungsi ini memiliki bentuk praktikal, kokoh, dan mudah digunakan.
Dapat berfungsi sebagai Multimeter, Source Calibrator atau Signal Generator:
- DC V/mV
- DC mA
- Ohm
- Thermocouple Type K, R, S, B, E, J, T, N
- RTD PT-100, CU-50
- 24 VDC

Features:
1. Increase disposable fast blow fuse, to avoid false instrument damage caused by voltage 220V plug
2. All functions all use internal electronic switch, input and output has a corresponding button

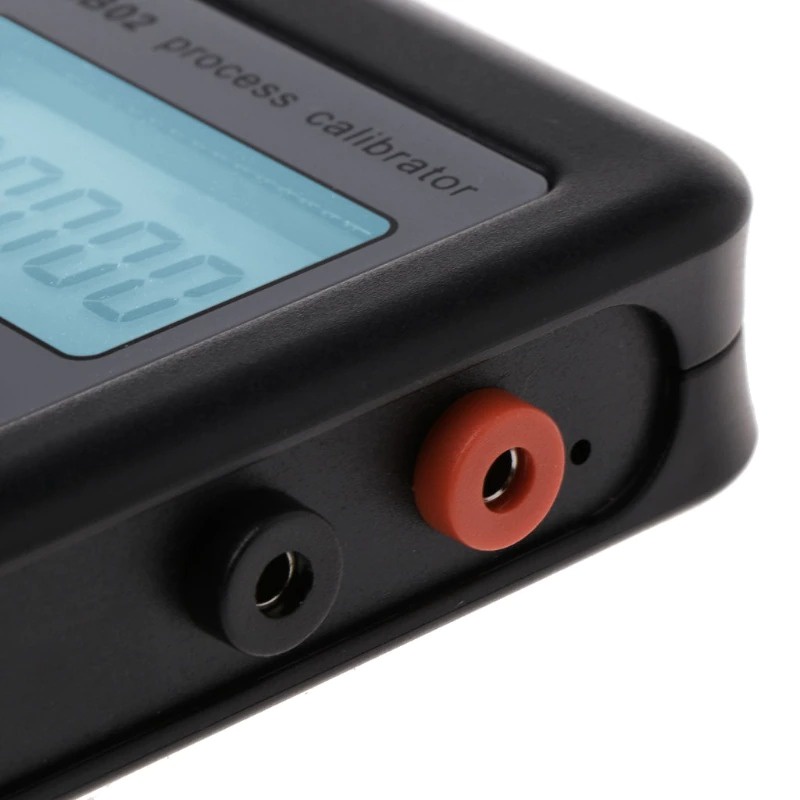

3. Two connector terminals can be used regardless of input and output. It is easy to operate.
4. In addition to having a conventional signal input and output functions,resistance, PT100.Cu50 RTD, thermocouple eight kinds of signals can be input and output, measure negative temperature.
5. The sensitivity of thermal resistance and resistance to external excitation output current is reduced.
6. Increase the output and the measurement accuracy.
For both constant and non-constant resistance measurement method, expanding the usage of the instrument.
7. V, mV, mA, input and output has a corresponding button, directly call without advance menu, no combination of keys.

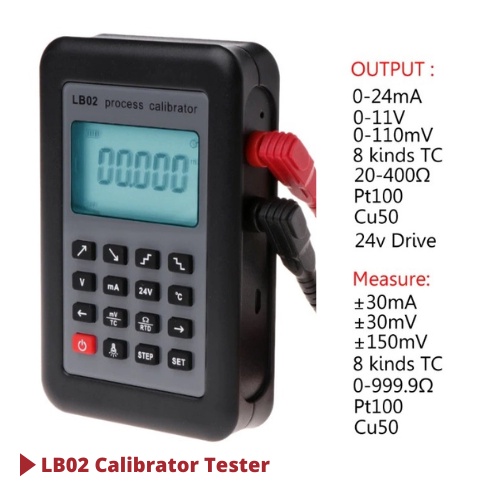

Specification:
- Model: LB02
- Current Output: 0-24 mA
- Voltage(V) Output:0-11 V
- Voltage(mV) Output: 0-110 mV
- Resistance Output:20-4000
- Current Measurement Range: 30 mA
- Voltage(V) Measurement Range: 30 V
- Voltage(mV) Measurement Range: 150 mV
- Resistance Measurement Range: 0-999.9

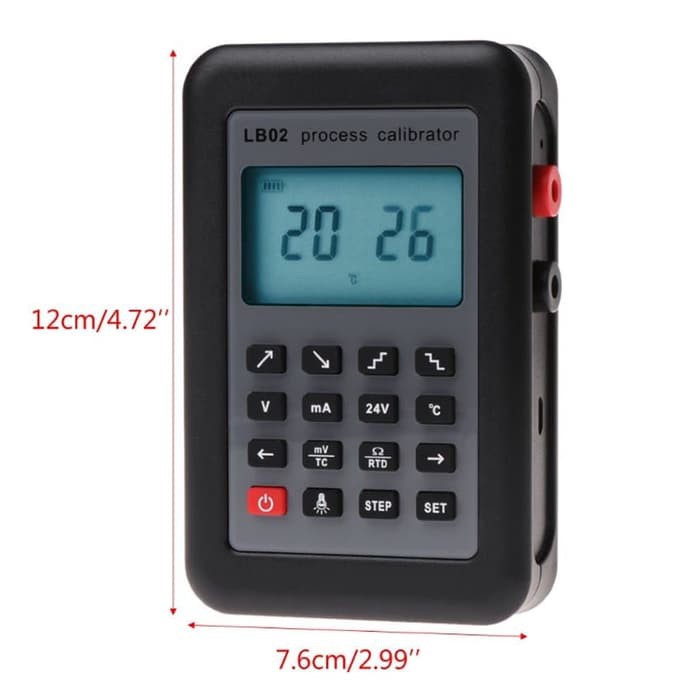

- Size: app.7.6x12cm/2.99x4.72in(WxH)
- Quantity: 5 Pcs/Set

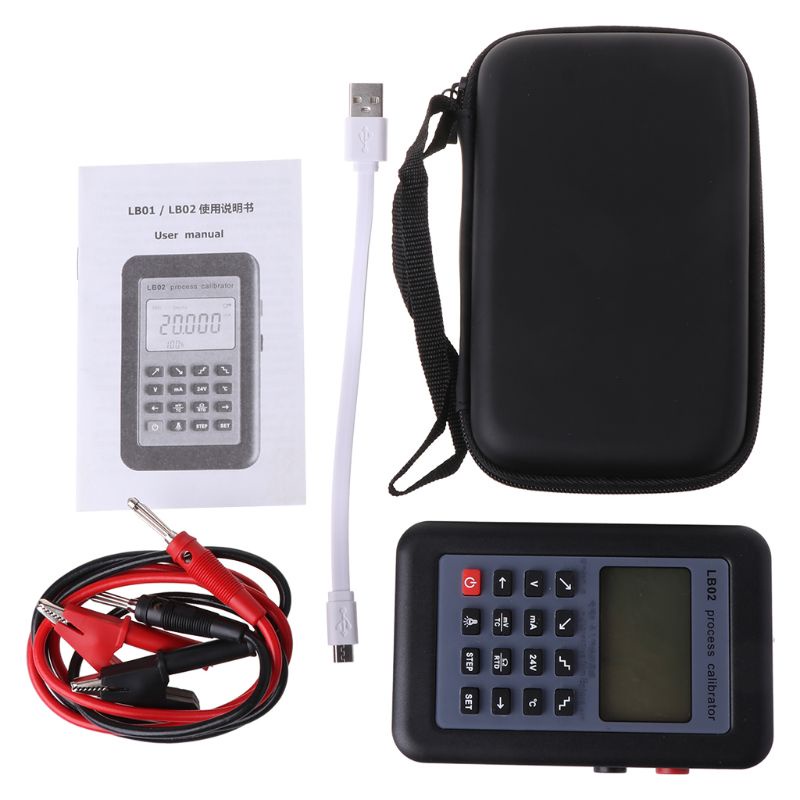

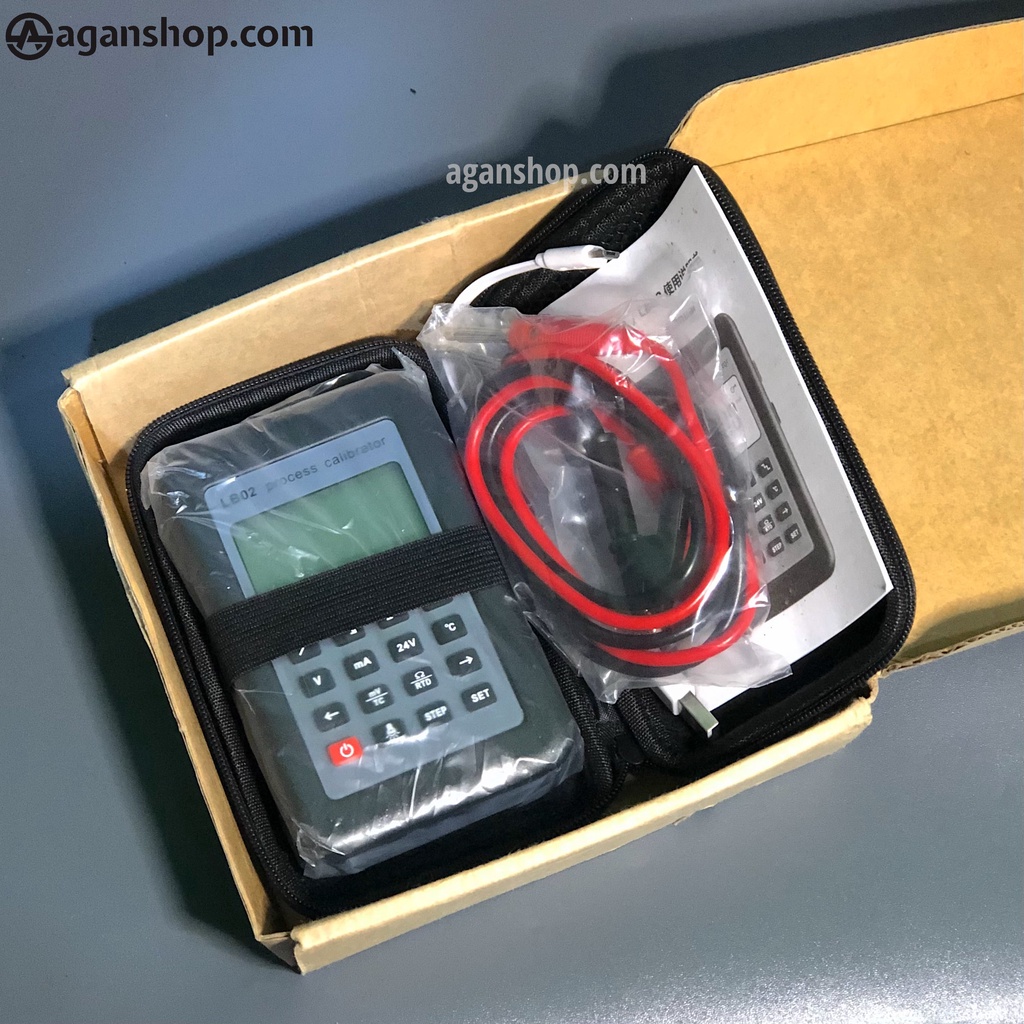

Isi dalam paket:
1 x LB02 Calibrator
1 x Pair Test Cable

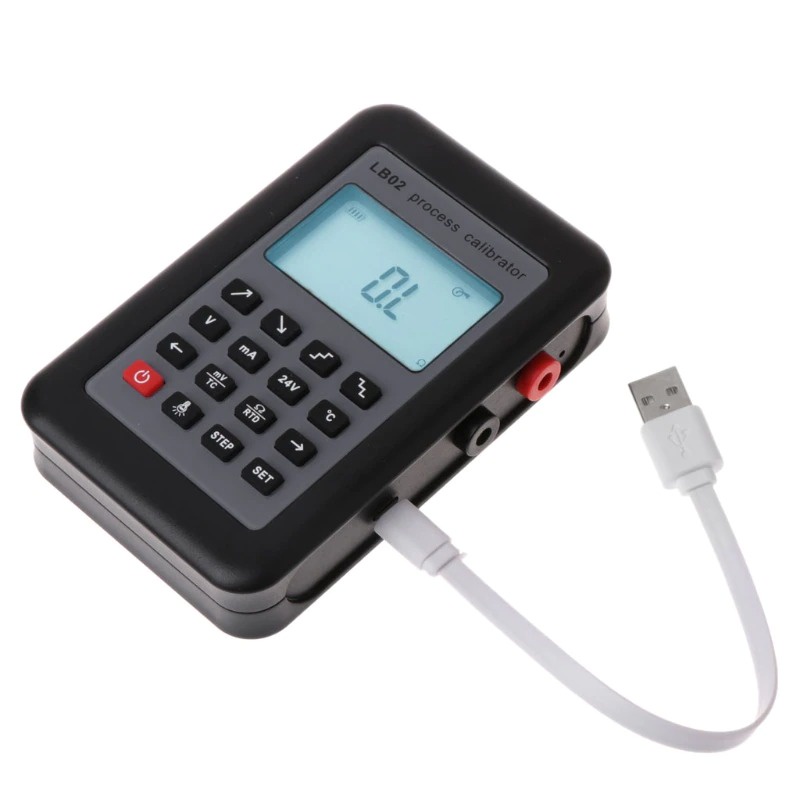

1 x USB line

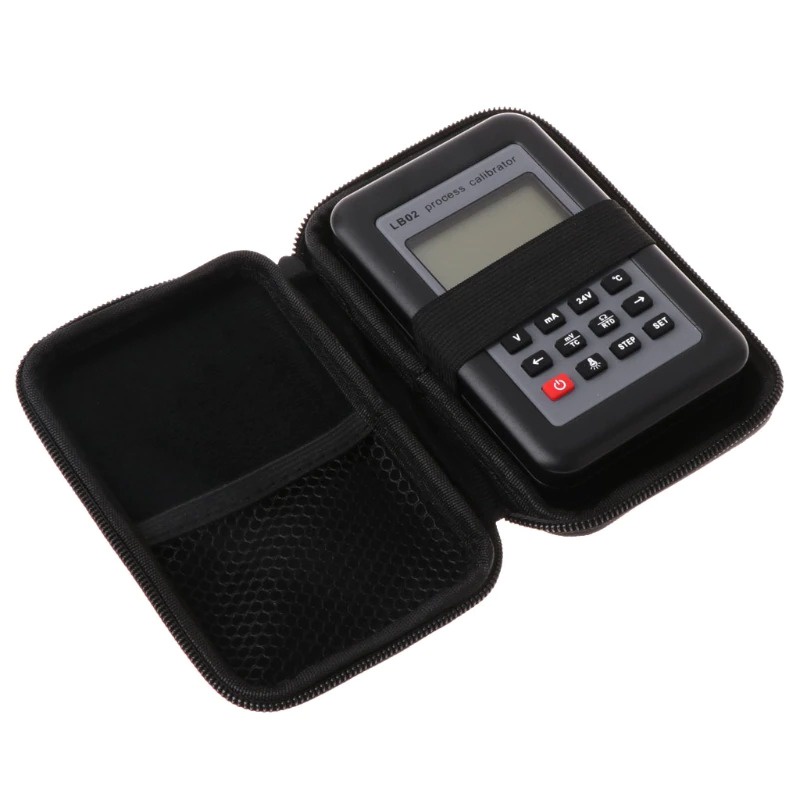

1 x Carrying Box
1 x User Manual

------
Terimakasih sudah mengunjungi toko kami
Kita tunggu orderannya ya 🤝

Gambar produk
