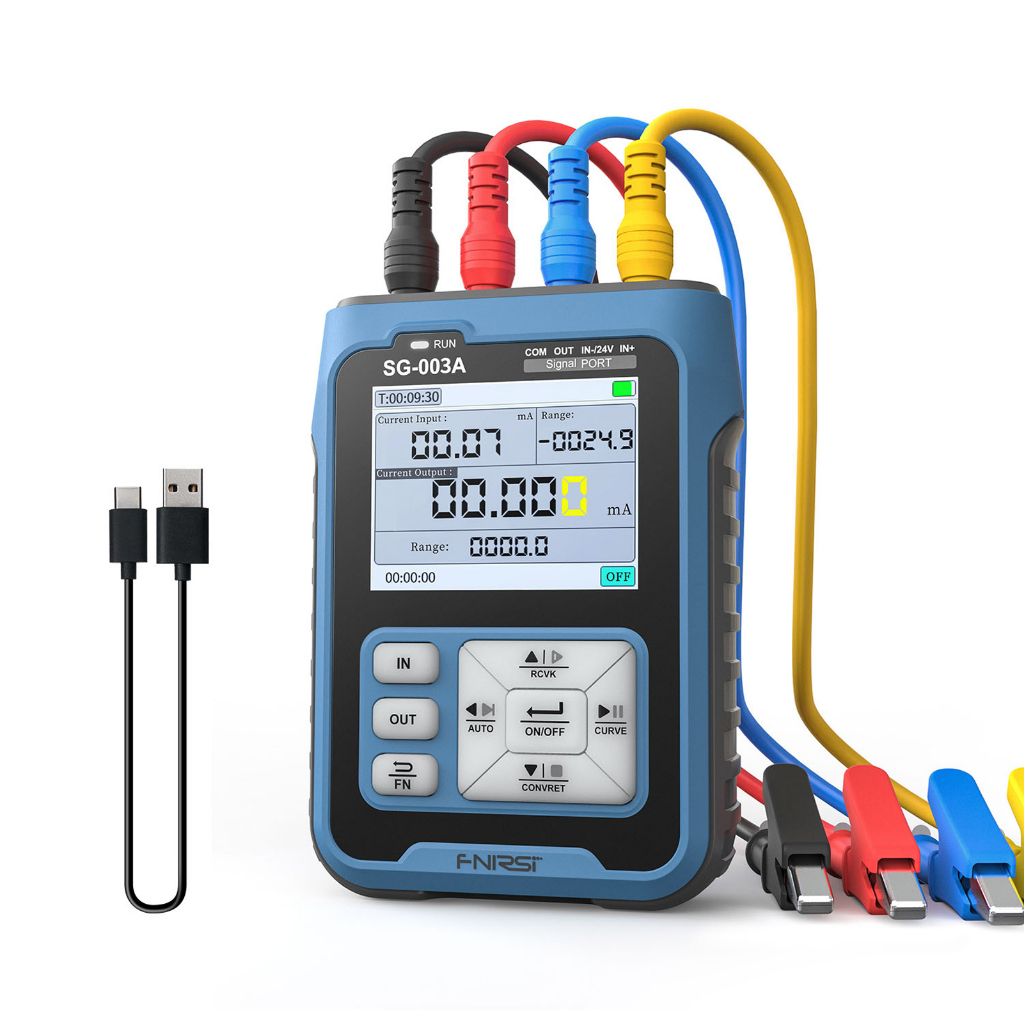

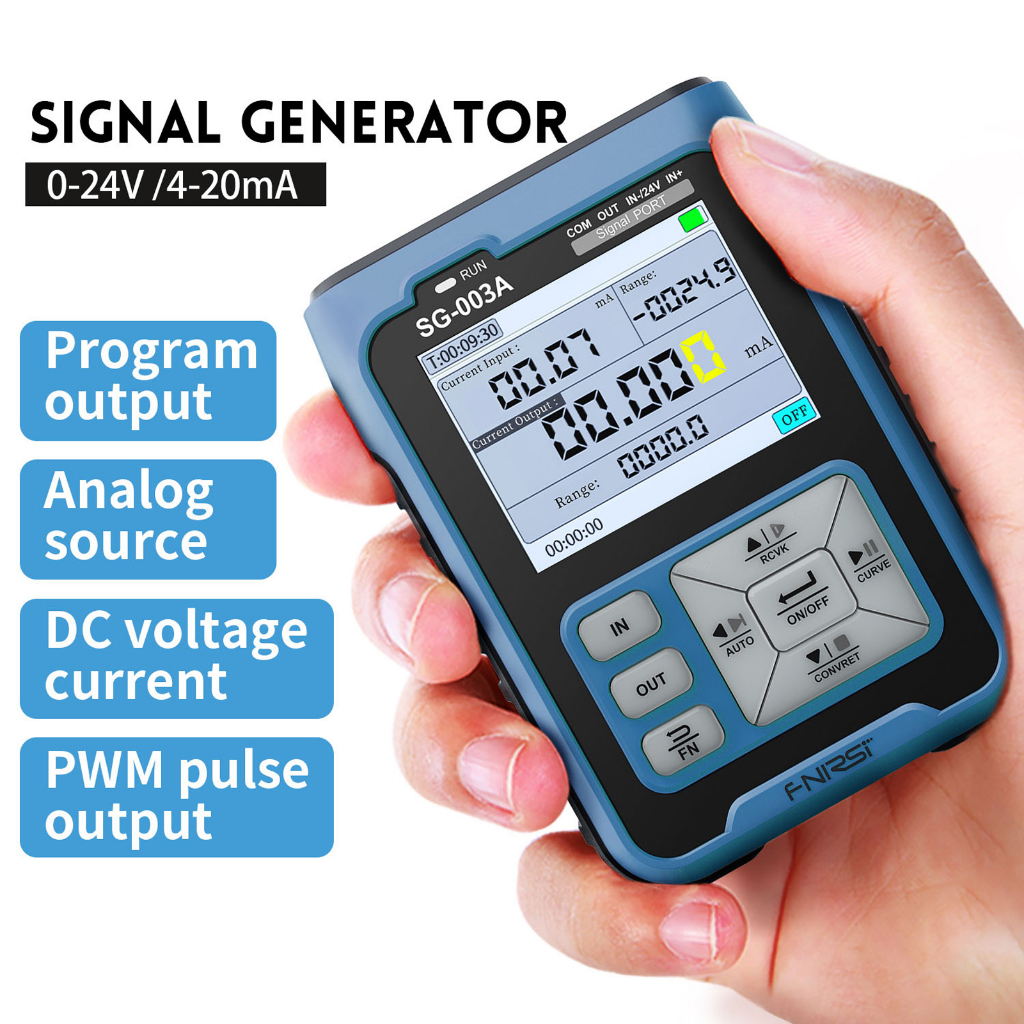

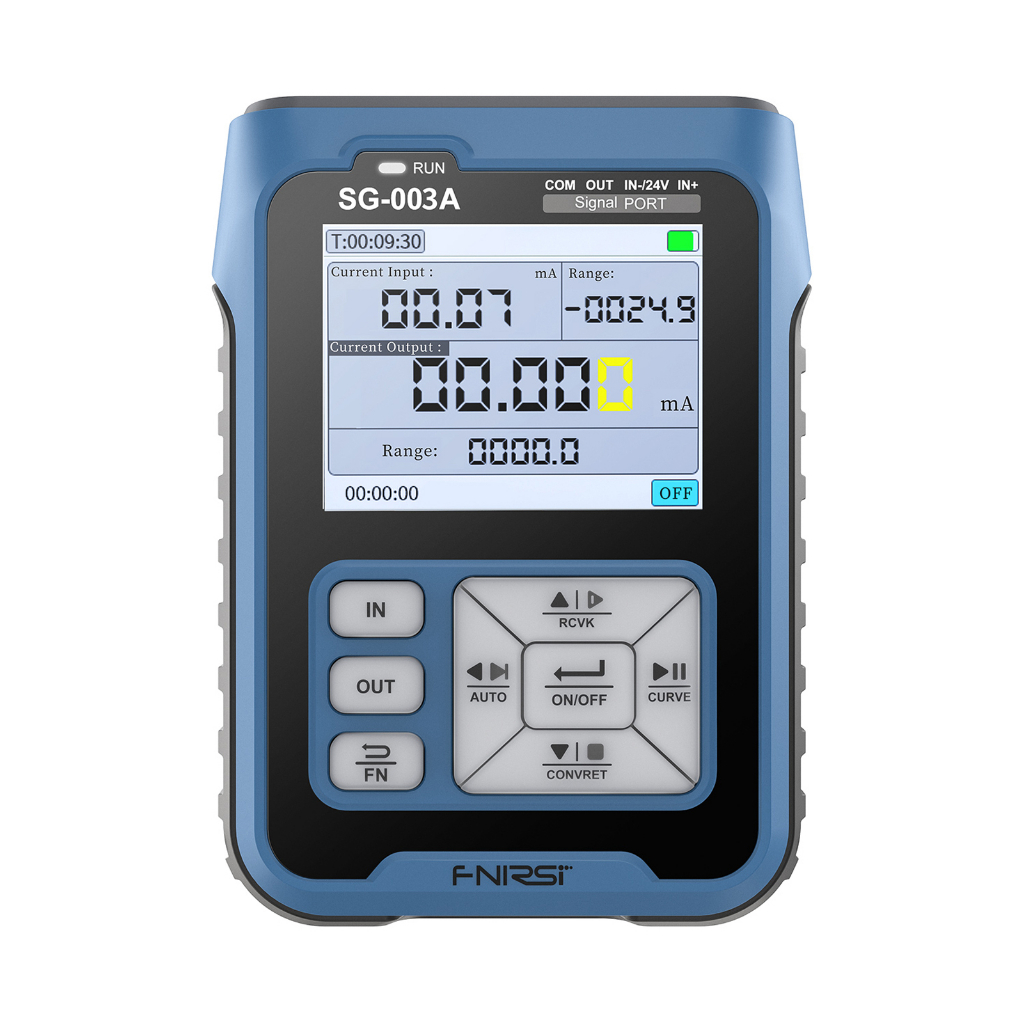

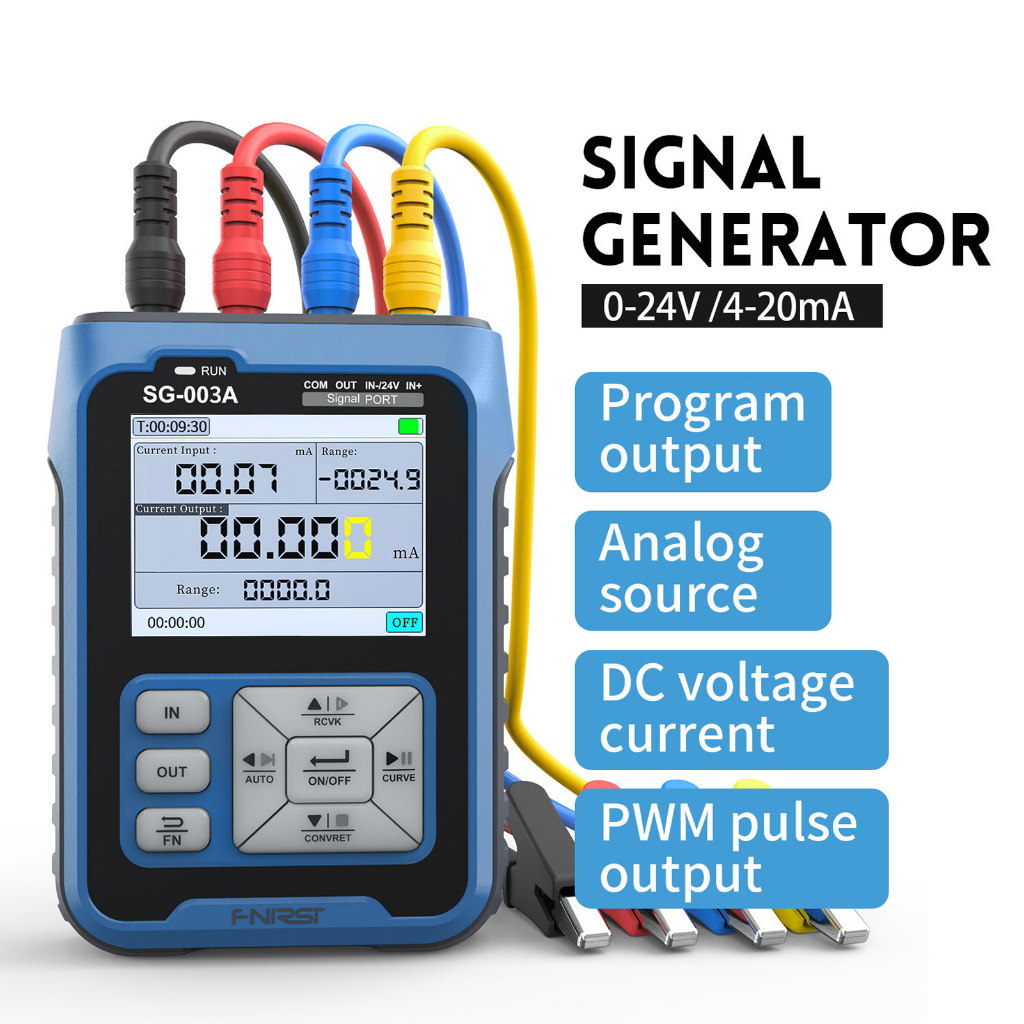

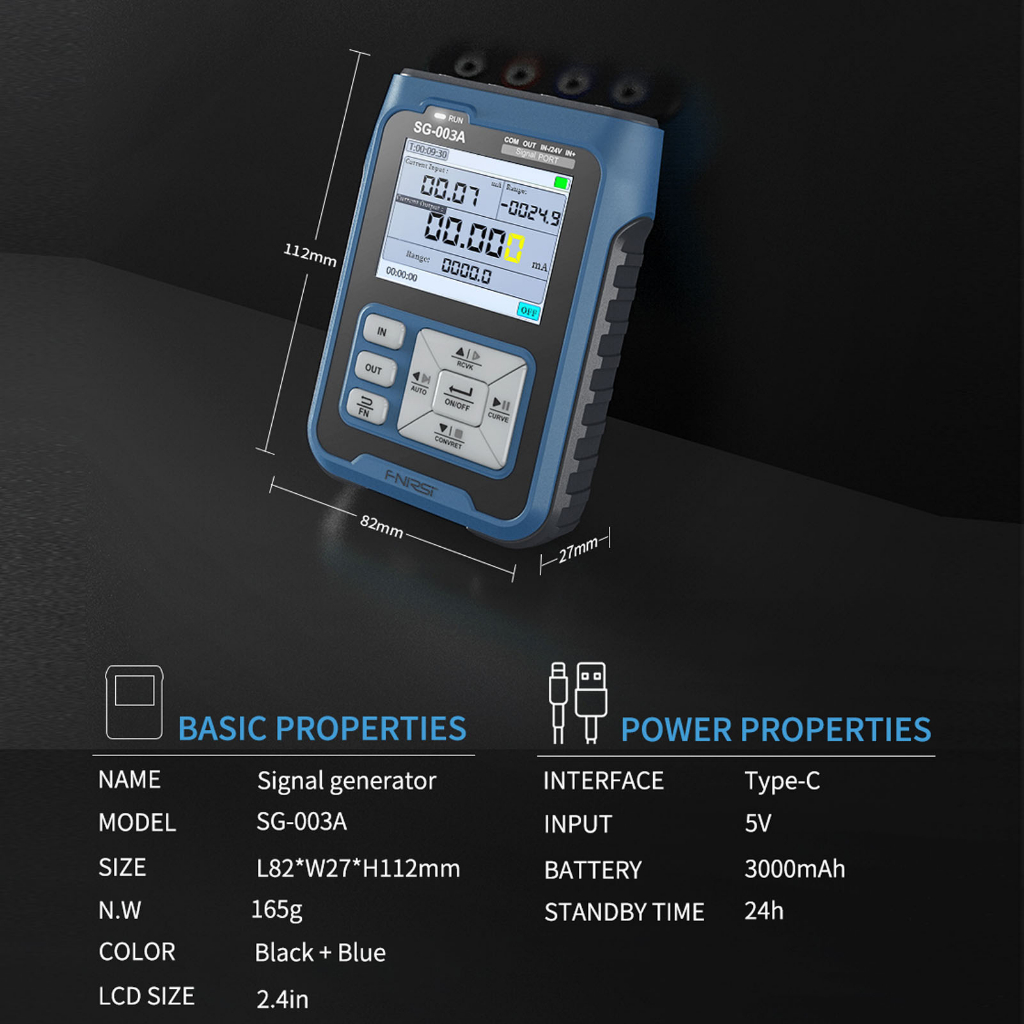

Signal Generator 0-10V Adjustable Current Voltage Simulator FNIRSI SG-003A

Detail Signal Generator 0-10V Adjustable Current Voltage Simulator FNIRSI SG-003A

Signal Generator 0-10V Adjustable Current Voltage Simulator FNIRSI SG-003A

Ready Stok langsung order saja
100% unit BARU
-----
Garansi quality CHECK sebelum kirim
GARANSI toko 1BULAN
-----
Dikirim dari JOGJA
Garansi packing AMAN (GRATIS bubblewrap/kardus)

Specifications:
Material: ABS
Active current output:
Ranges: 0~24mA
Resolution: 0.01 mA
Maximum load: 750Ω
Precisions:±(0.1%+0.005)
Passive current output:
Ranges: 0-24 mA
Resolution: 0.01 mA
External power supply up to 30V
Precisions:±(0.1%+0.005)
Voltage output:
Ranges: 0-24V
Resolution: 0.01V
Maximum current 30mA
Precisions:±(0.1%+0.005)
24V voltage output:
Drive current: 24mA
Resolution: 0.01 mA
Precisions:±(0.1%+0.005)
Current input measurement:
Ranges: 0-24 mA
Resolution: 0.01 mA
Input impedance: 100Ω
Precisions:±(0.1%+0.05)
Voltage input measurement:
Ranges: 0-30 V
Resolution: 0.01 V
Input impedance: 2MΩ
Precisions:±(0.1%+0.05)
PWM output (frequency) ranges: 0-9999Hz
Battery: 1 * lithium battery, 3.7V 3000mAh (included)
Package size: 150 * 145 * 80mm / 5.9 * 5.7 * 2.0in
Package weight: 474.6g / 1.0lb

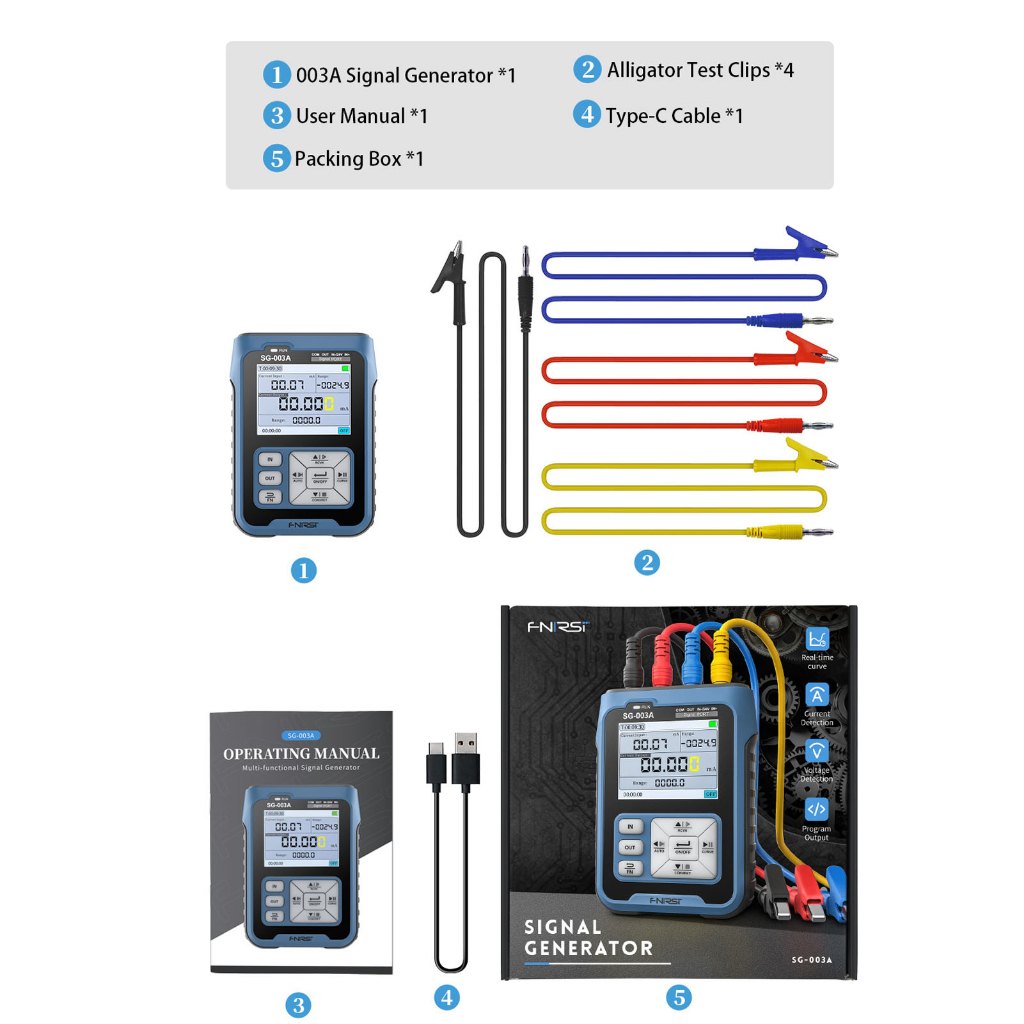

Packing list:
1 x Signal Generator Calibrator
4 x Test Clip
1 x Type-C Recharging Cable

------
