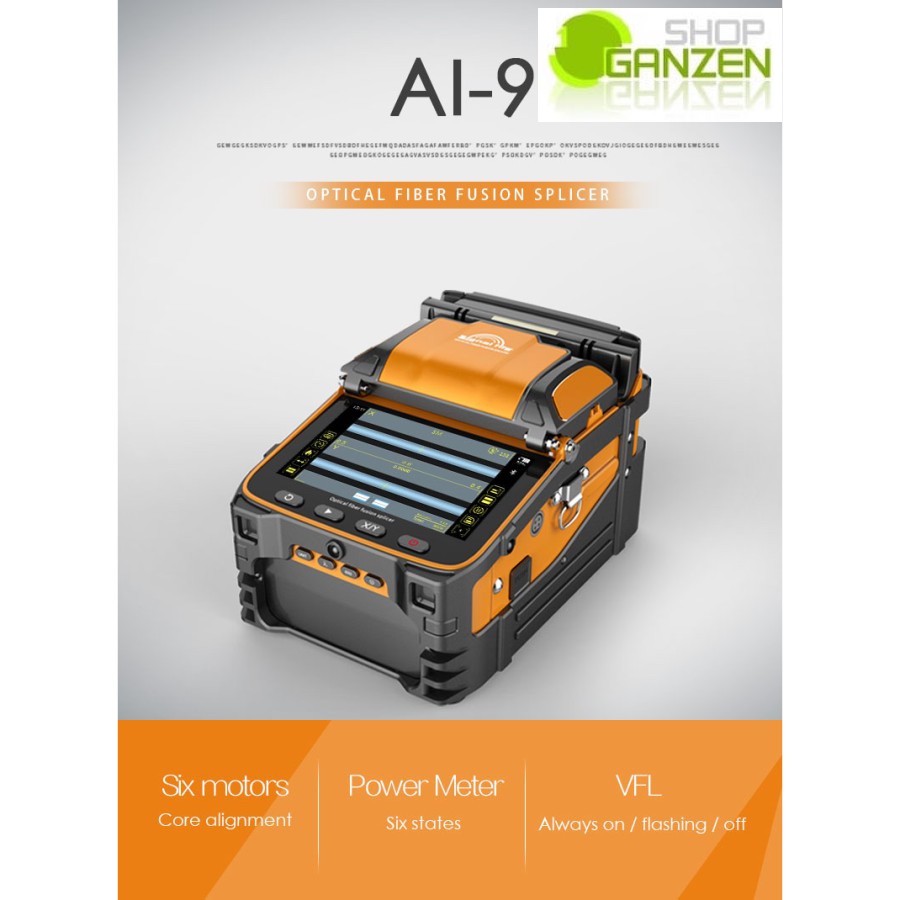

Signal fire AI-9 FTTH Fiber Optical Automatic Fusion Splicer

Detail Signal fire AI-9 FTTH Fiber Optical Automatic Fusion Splicer

Signalfire AI-9 FTTH Fiber Optic Welding Splicing Machine Optical Fiber Fusion Splicer AI-9

belum termasuk soc holder

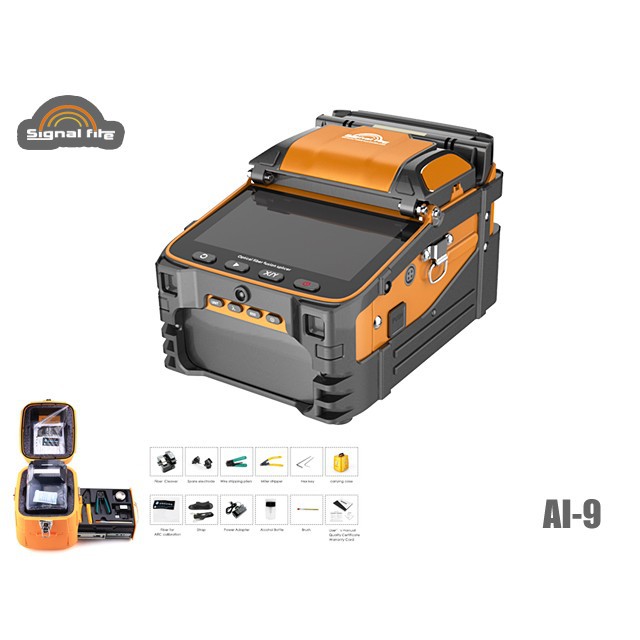

*Signal Fire AI-9 fusion splicer
*toolbox
*set of spare electrodes
*fiber cleaver
*universal stripper
*stripper for flat cables
*bottle with dispenser
*cleaning brush
*carrying belts (for the splicer and the box)
*AC charger with USB adapter

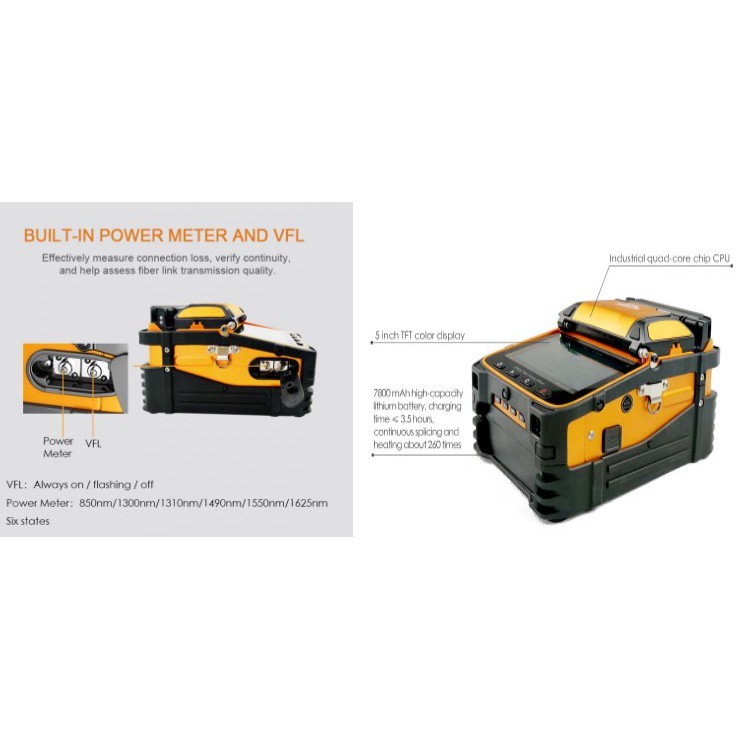

the new generation of optical fiber fusion splicer will bring you a reliable and comfortable user experience. ● It is a six-motor machine which built-in power meter and VFL. The splicing time is 5 seconds and the heating time is 15 seconds. This machine is perfect for medium and short distance trunk construction, Ftth project and monitoring system. ● Core to core alignment, adopt PAS fiber adjustment (alignment) technology ● 5 inch TFT color display ● Six motors Auto focus ● Splice Loss: 0.025dB (SM), 0.01dB(MM) 0.04dB (DS/NZDS) ● 7800 mA high-capacity lithium battery, charging time ≤ 3.5 hours, continuous splicing and heating about 240 times ● Power: Input AC100-240V 50 / 60HZ, Output DC13.5V / 4.8A ● Temperature -15 ~ +50 ℃, humidity: <95% RH (no condensation) ● Working altitude: 0 ～ 5000m.

Gambar produk
