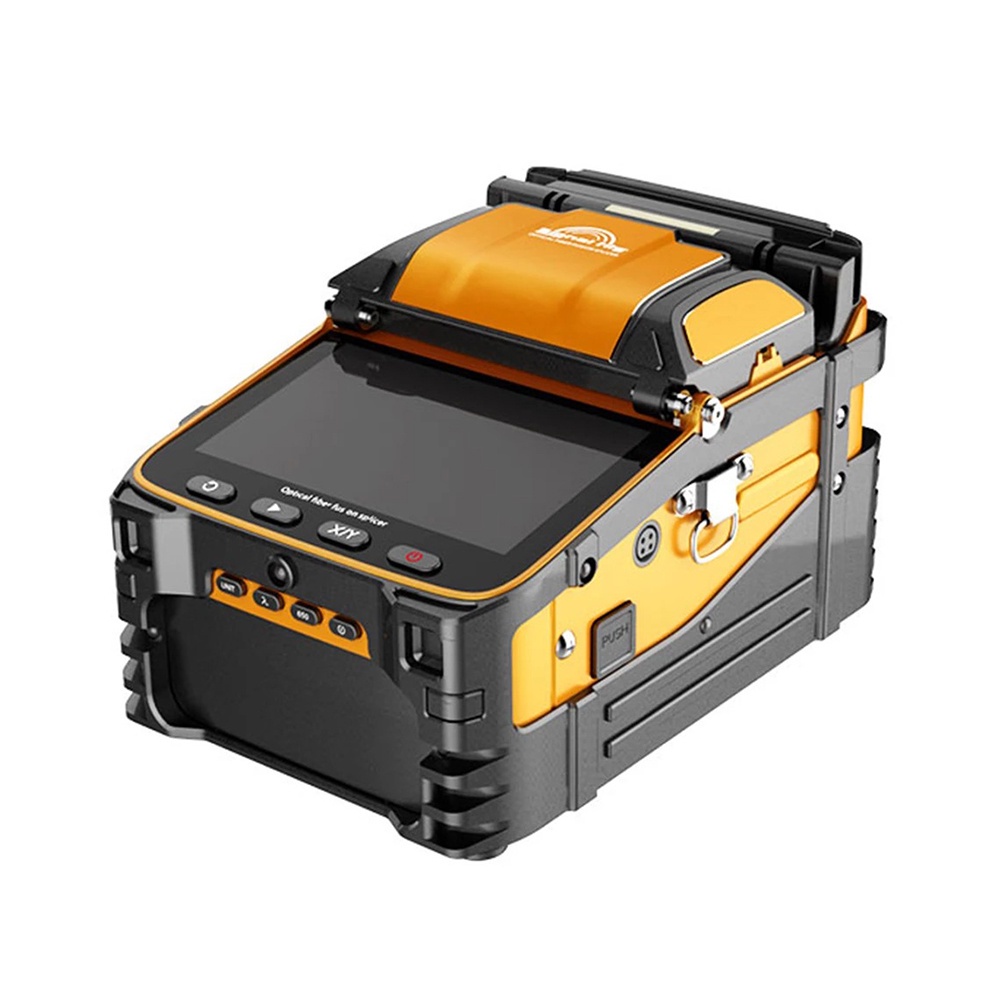

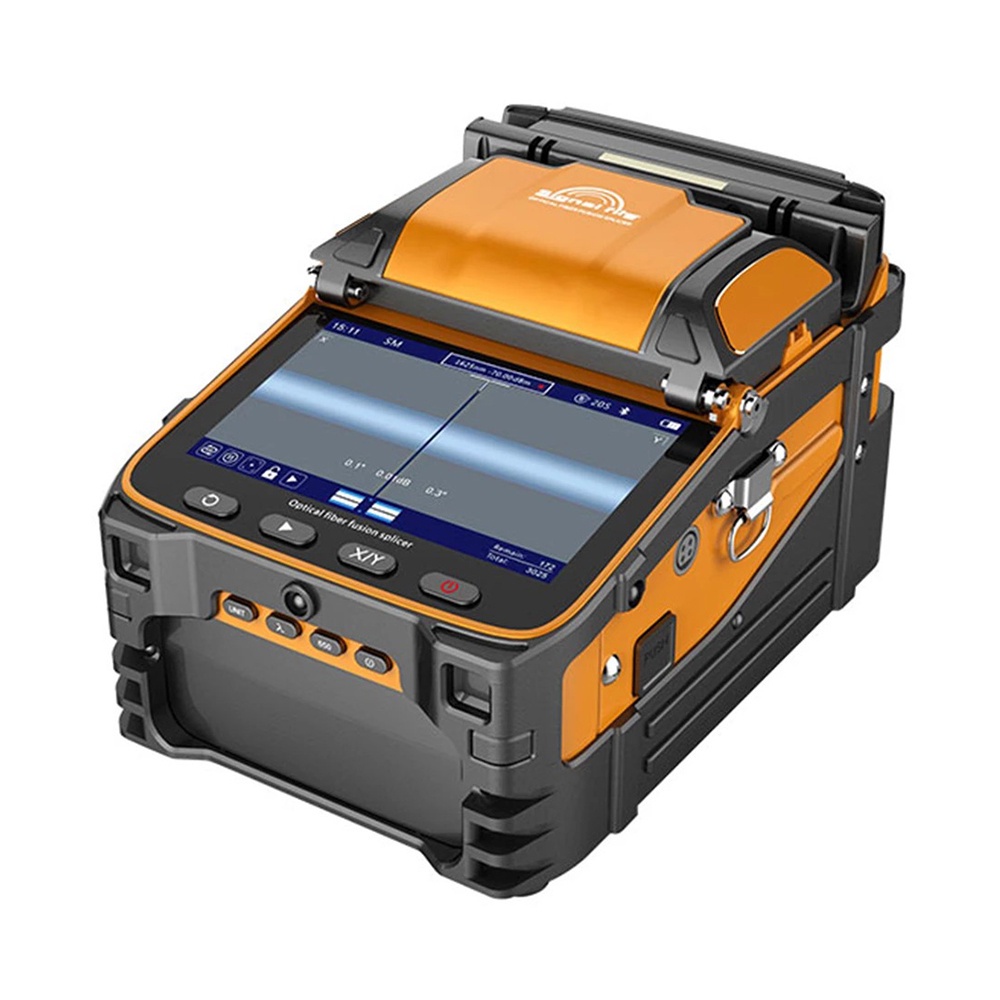

FO - Signal Fire AI-9 FTTH Fiber Optical Automatic Fusion Splicer OPM VFL

Detail FO - Signal Fire AI-9 FTTH Fiber Optical Automatic Fusion Splicer OPM VFL

Signalfire AI-9 FTTH Fiber Optic Welding Splicing Machine Optical Fiber Fusion
Splicer AI-9

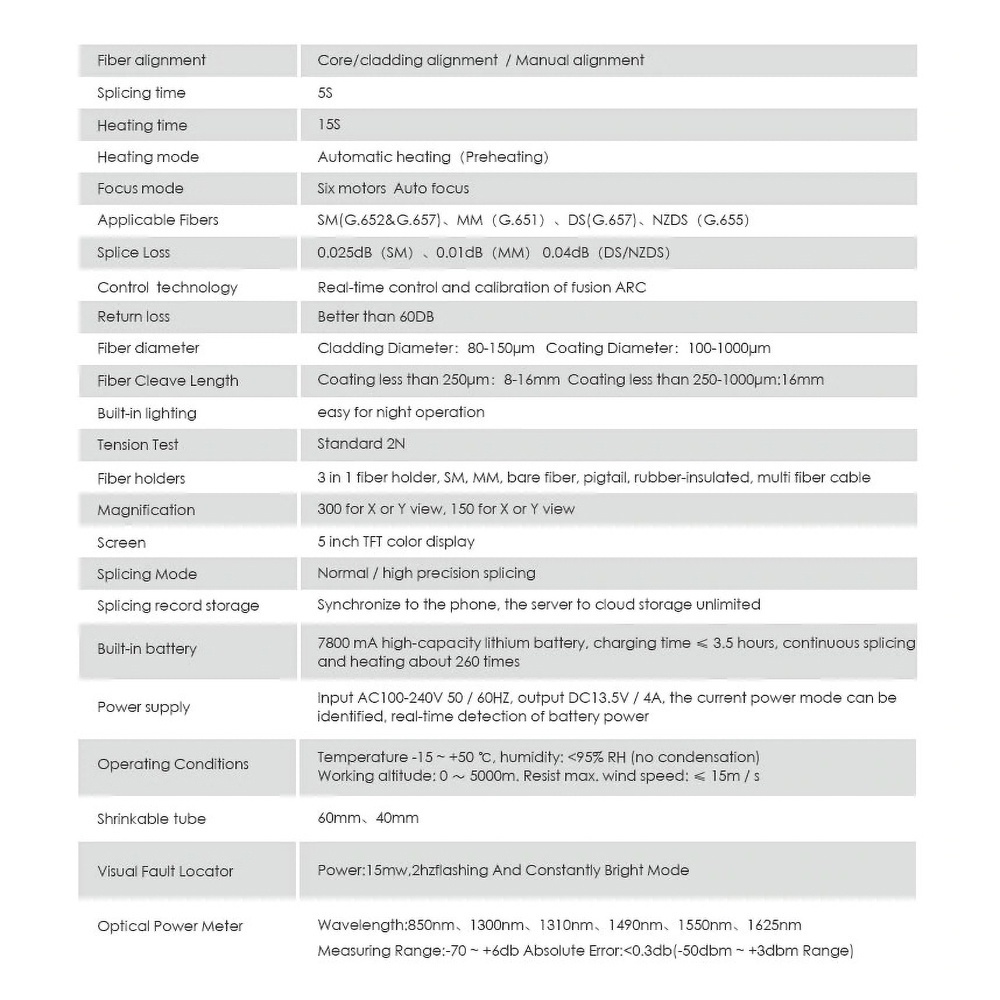

 ● It is a six-motor machine which built-in power meter and VFL. The splicing
time is 5 seconds and the heating time is 15 seconds. This machine is perfect
for medium and short distance trunk construction, Ftth project and monitoring
system.

● Core to core alignment, adopt PAS fiber adjustment (alignment) technology

● 5 inch TFT color display

● Six motors Auto focus

● Splice Loss: 0.025dB (SM), 0.01dB(MM) 0.04dB (DS/NZDS)

● 7800 mA high-capacity lithium battery, charging time ≤ 3.5 hours, continuous
splicing and heating about 240 times

● Power: Input AC100-240V 50 / 60HZ, Output DC13.5V / 4.8A

● Temperature -15 ~ +50 ℃, humidity: <95% RH (no condensation)

● Working altitude: 0 ～ 5000m.

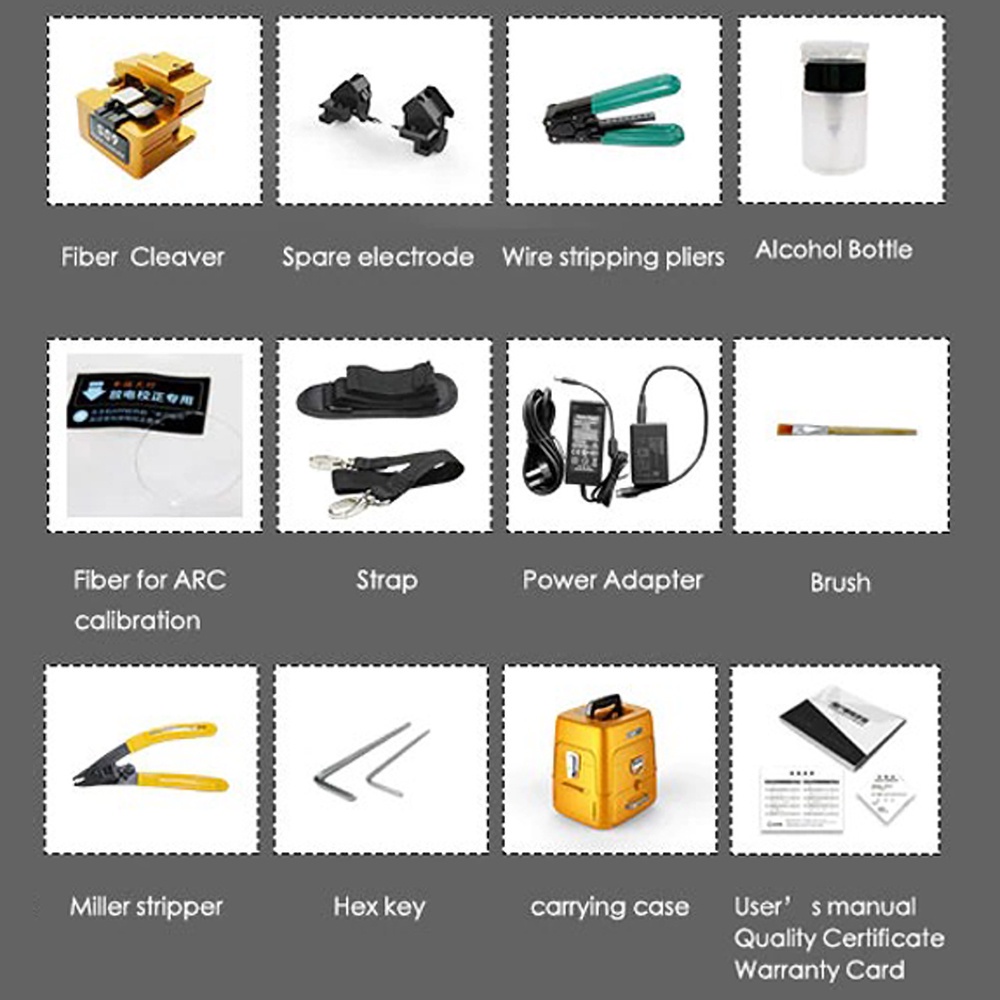

Accecories:

*Signal Fire AI-9 fusion splicer

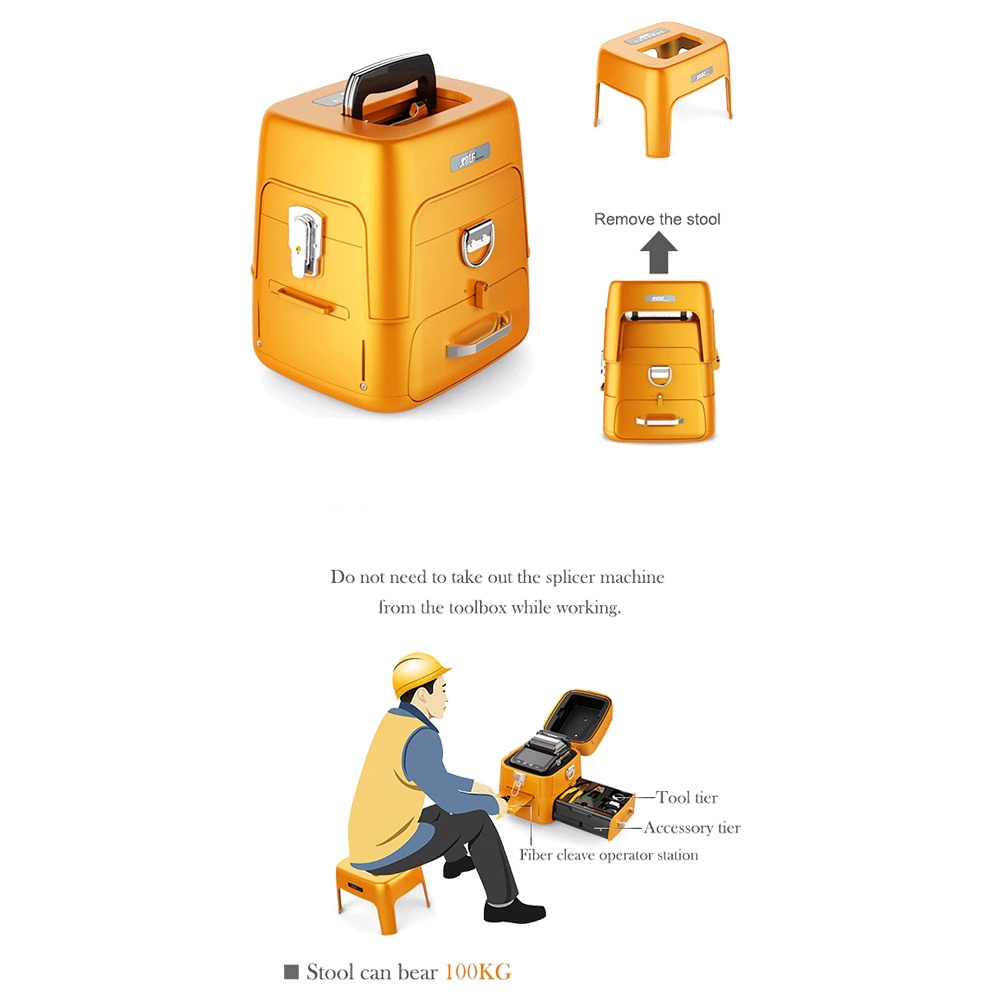

*toolbox

*set of spare electrodes

*fiber cleaver

*universal stripper

*stripper for flat cables

*bottle with dispenser

*cleaning brush

*carrying belts (for the splicer and the box)

*AC charger with USB adapter  the new generation of optical fiber fusion splicer
will bring you a reliable and comfortable user experience.
