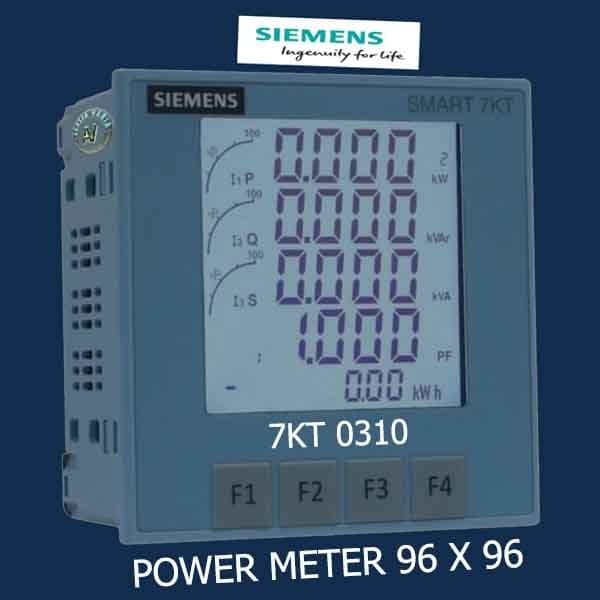

Detail SIEMENS 7KT0310 Power Meter/KWH Meter/Smart Multi Function Meter D96mm
Power Meter merek Siemens dapat digunakan pada Panel LV dan Panel MV Description for Smart 7KT Multi Function Meter General Features : - - MLFB : 7KT0310 - Mounting Type : Panel - Terminal : Screw Type - Dimension : 96 x 96 x 50 mm - IP Protection : IP65 on front when installed - Display Type : LCD with Bar Graph display - Temperature : -20 derajat to +60 derajat celcius - Humidity : 0 % to 95 % without condensation - Password Protection : Yes
Measuring Range - Nominal Current : 3 x 0 - 5 A with Max 20% overload - CT Primary 1A - 10000 A - CT Secondary Selectable - 1A or 5A - Input Voltage : 480 V / 276 V - Frequency : 50/60 Hz - Network : 1P2W , 3P3W , 3P4W
Control Supply : Input voltage range : 95 - 240V AC +-10% Consumption : 8VA max Frequency : 45 - 65Hz
