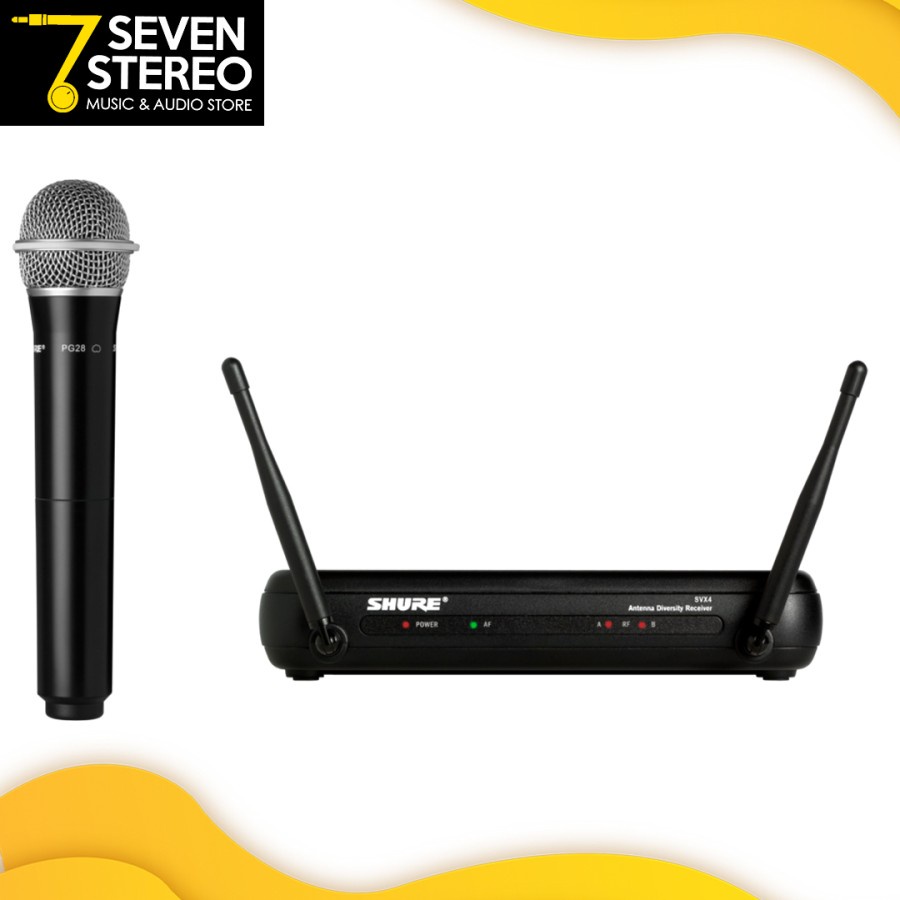

Detail Shure SVX24/PG28 Handheld Mic Wireless System
Mic Wireless Shure SVX 24 / PG 28
Single channel receiver for use with Shure SVX Wireless systems. Features Up to 8 selectable channels Up to 4 compatible systems* Antenna Switching Diversity Adjustable Squelch Level Mic / Line Switch 2 Audio Output: 1/4" Connector XLR Connector Available with Handheld and Lavalier system packages
Features RF Level Switch between 1mW and 10mW 2 AA batteries Up to 10 hours of battery life Bottom on/off switch design Anti-rolling ring on grille for PG28 Power and battery status LED 6 color rings for microphone identification
Tech Specs Transmitter Type: Handheld Dimensions: 254 mm X 51 mm diameter RF Output Power: 1 Battery, endurance: 10 h Weight: 270 g
Further Technical Specs Audio Input Level: 20 dBV maximum Input Impedance: 22 k RF Output (dependent on applicable country regulations): HI power mode: 10 mW maximum LO power mode: 1 mW maximum Weight: 270 g (10.2 oz.)(without batteries) Housing: Molded ABS Power Requirements: 2 AA size alkaline or rechargeable batteries
