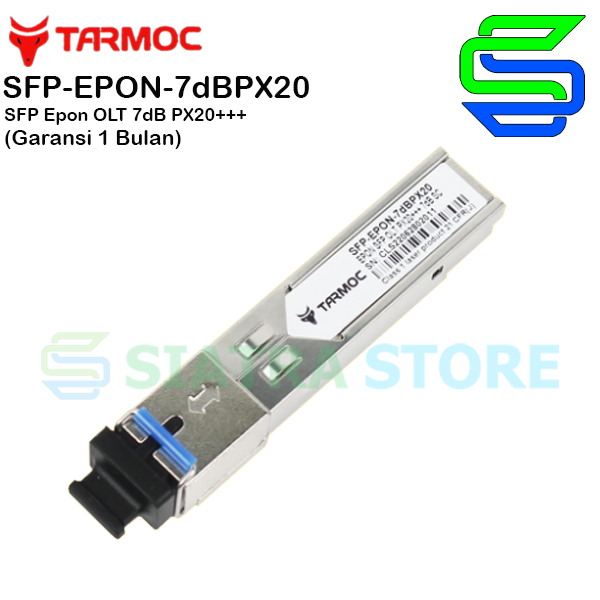

SFP Epon OLT PX20+++ 7dB 1.25G 20KM

Detail SFP Epon OLT PX20+++ 7dB 1.25G 20KM

Deskripsi : SFP-EPON-7dBPX20
SFP Epon OLT PX20+++ 7dB 1.25G 20KM

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

***GARANSI 1 BULAN***
Harga 1 Unit ( Hanya Dapat 1 unit )

Compatible dengan OLT EPON 2, 4 dan 8 PON, HIOSO, NETFO, HSGQ, dll

Model SFP-EPON-7dBPX20
Connector SC
Power 7dB
Format SFP
Mode SM
Tested Ambient Temperature 0 - 70C
Wavelength Rx1310nm/Tx1490nm
Compatible Brands HIOSO, HSGQ, NETFO
Product Size 75*13mm
Product Weight 16g
Qty per Box 200pcs
Box weight 3.7kg
Box Size 26x15x18cm

EPON OLT PX20+++ is an SFP packaged hot-swappable optical module (compliant with IEEE 802.3ah 1000BASE-PX20+) used to connect optical data communication links. It adopts a single-fiber bidirectional design, and the uplink and downlink rates can reach up to 1.25Gbps, which is widely compatible with the market. Mainstream brand OLT equipment.

EPON OLT PX20+++
o Single-fiber bidirectional hot-swappable SFP with SC/UPC interface
o Up to 1.25Gbps operating rate
o 1490nm DFB-LD transmitter and 1310nm burst mode APD-TIA receiver
o Support DDM which can provide diagnostic and testing functions for power supply temperature transmitting and receiving status and service life.
o Transmission distance up to 20KM
o Comply with MSA SFP specification SFF-8472
o Conforms to IEEE 802.3ah

Gambar produk
