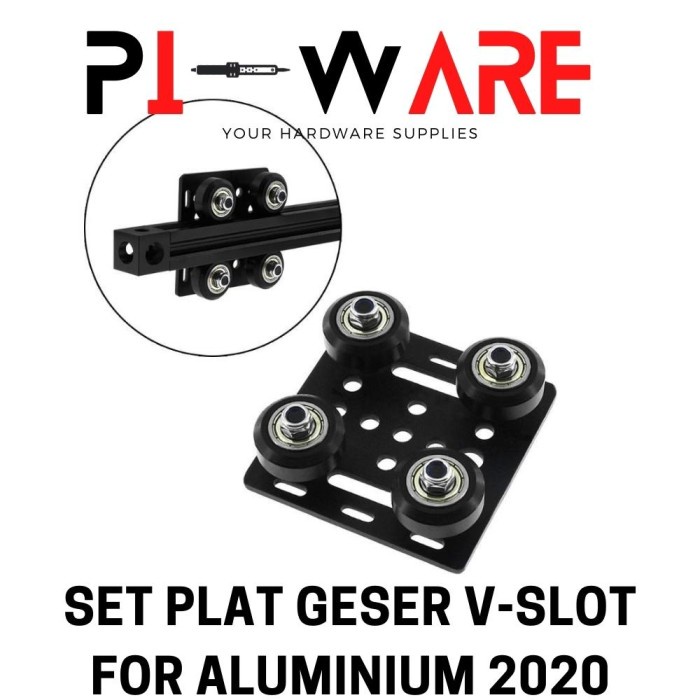

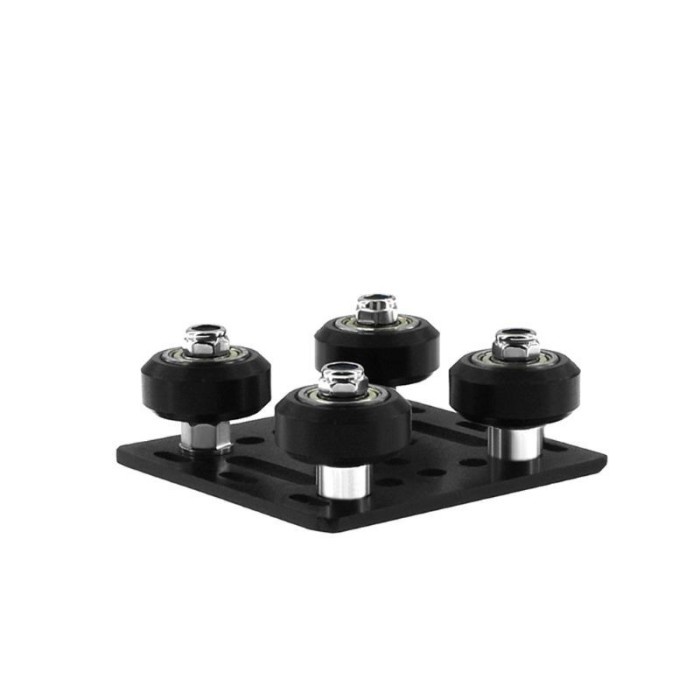

Set Plat Geser For CNC Printer 3D 2020 Openbuild V-Slot Gantry 20mm

Detail Set Plat Geser For CNC Printer 3D 2020 Openbuild V-Slot Gantry 20mm

Harga 1 Unit

Features:
- Quick assembly of motion system.
- Fold-through slots allow for easy belt threading.

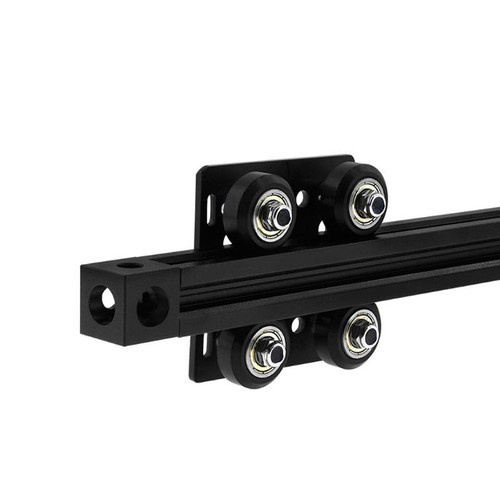

- The V-Slot Gantry Plate- 20mm has been designed to work on all 20mm sides of V-Slot Linear Rail .
- 5mm slots suitable for spacers to accompany a 90 degree belt mount on either side of the plate.
- Suitable for 2020 v-slot aluminum profile.
- Easy to install.
- Durable and long service life.
- V-Slot Gantry Plates available in various sizes.
- This plate was designed to fit on all standard V-Slot Linear Rail.

Specification:
Material: 6061 – T5 Aluminum
Finish: Brushed and anodized
Color: Black

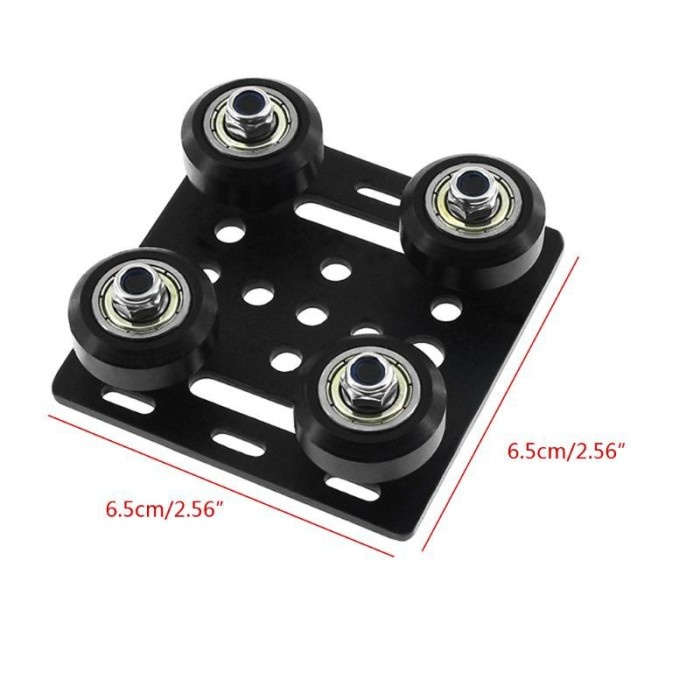

Size: 65 x 65 mm 2.5 x 2.5”
Thickness: 3mm 1/8"
Version: V3
ultimates tensile strength of at least 190 MPa 28,000 psi
For V-Slot rail, DIY CNC or other systems.

Gambar produk
