Servo L298N DC Stepper Motor Driver Module Dual H Bridge Control Board DC

Detail Servo L298N DC Stepper Motor Driver Module Dual H Bridge Control Board DC

kelebihan:
-modul ini memiliki kemampuan pengontrol yang kuat, panas rendah, kemampuan anti-interferensi yang kuat.Driver tipe dual channel H-bridge, tegangan drive 5V hingga 35V, arus penggerak adalah 2A.Ada heat sink besar l untuk pembuangan panas yang lebih baik.Nyaman digunakan, dirancang dengan terminal sekrup untuk kabel yang mudah.Ini biasanya digunakan untuk mengendarai motor di mobil pintar atau robot.

Main Control Chip: L298N
Logic Voltage: 5V
Drive Voltage: 5V-35V
Logic Current: 0mA-36mA
Drive Current: 2A(MAX single-bridge)
Storage Temperature: -20℃ to +135℃
Max. Power: 25W

Notes:
1. When driving voltage is 7V-12V, it can use on-board 5V logic voltage as power supply; when using on-board 5V as power supply, do not input voltage on the +5V terminal,however,it can lead to 5V voltage for external use. (this is a regular application)
2. When driving voltage is higher than 12V and less than or equal to 24V, for example, to drive motor with a rated voltage of 18V, first of all, you must pull out the jumper of on-board 5V output enable.Then connect 5V to the 5V output port external.
5V enable is a control signal with a 5V level; when the input signal is valid and power supply of motor drive module is normal, motor driver module outputs current. Otherwise, even if the power supply is normal, there is no current on motor.

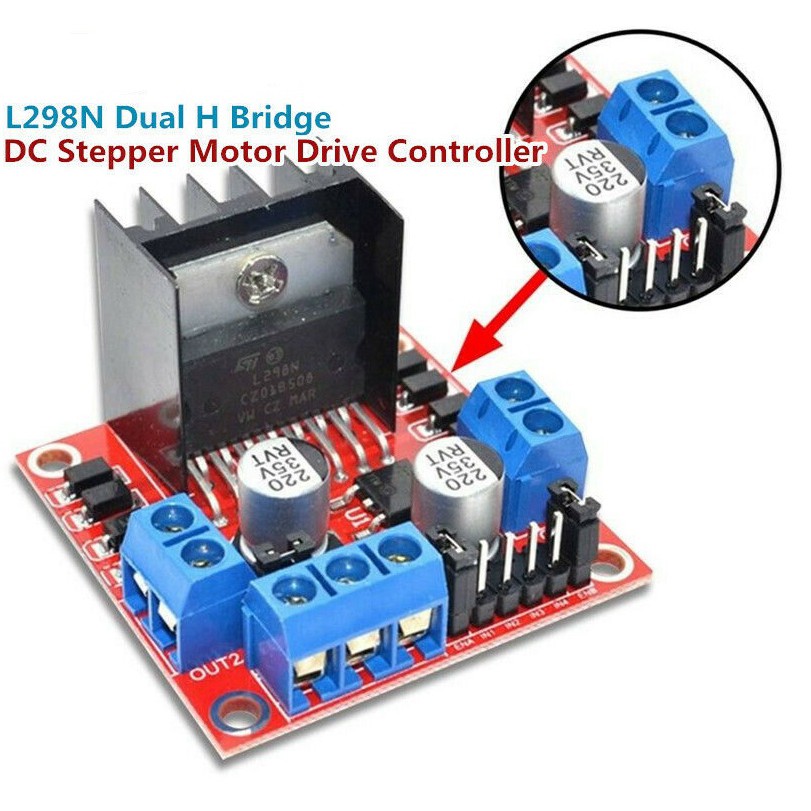

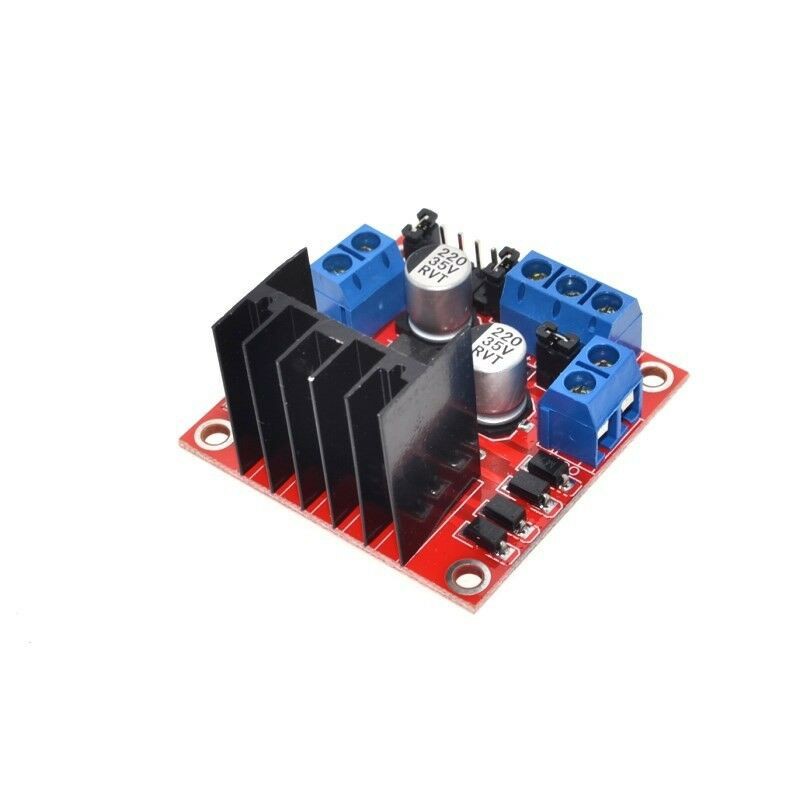

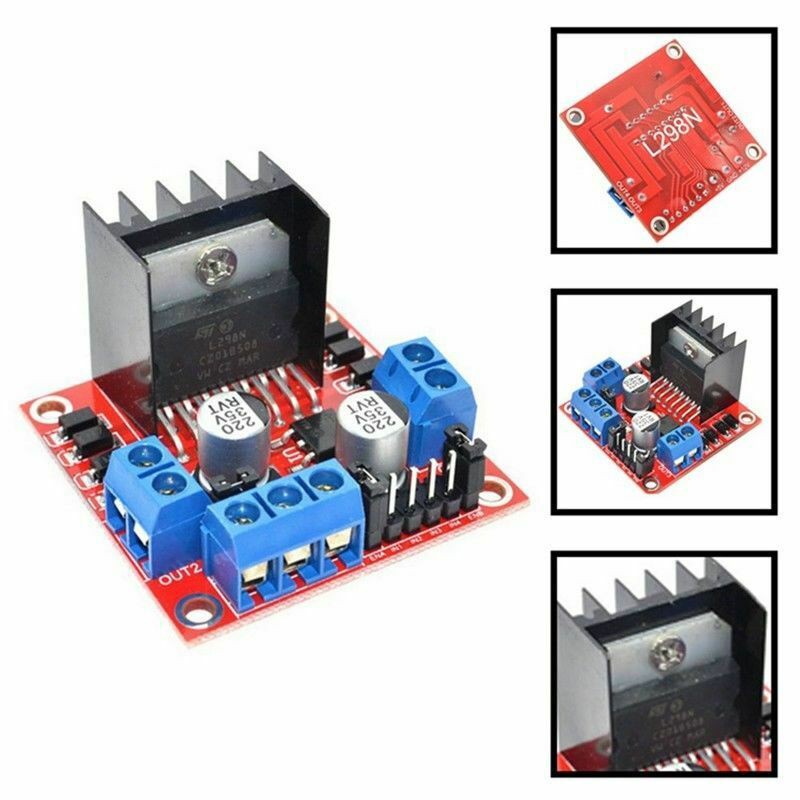

Gambar produk
