Sepasang TPLINK TL-FC311A-20 Plus TL-FC311B-20 Media Converter FO to LAN 10-100-1000Mbps AB - Sepasang TP Link Gigabit WDM Media Converter

Detail Sepasang TPLINK TL-FC311A-20 Plus TL-FC311B-20 Media Converter FO to LAN 10-100-1000Mbps AB - Sepasang TP Link Gigabit WDM Media Converter

Sepasang TPLINK TL-FC311A-20 Plus TL-FC311B-20 Media Converter FO to LAN 10-100-1000Mbps AB -

Sepasang TP Link Gigabit WDM Media Converter 10/100/1000M RJ45 to 1000M single-mode SC fiber Converter

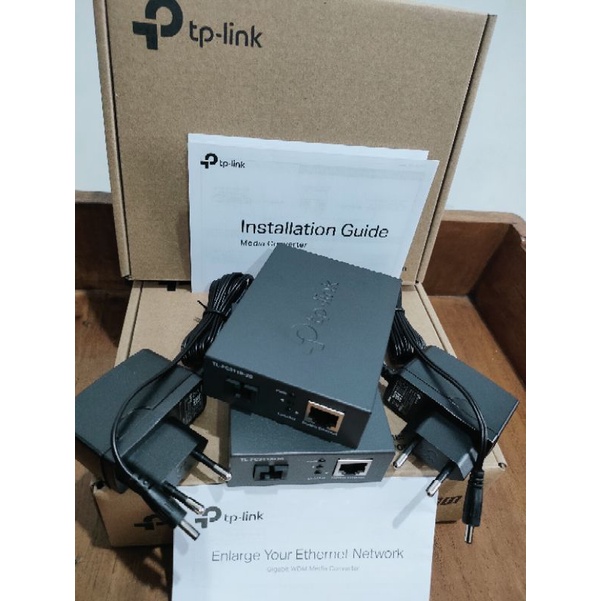

Sepasang Media Converter TPLink ini terdiri dari 1 pcs FC311A-20 beserta adaptornya dan 1 pcs FC311B-20 beserta adaptornya

GARANSI RESMI TPLINK INDONESIA

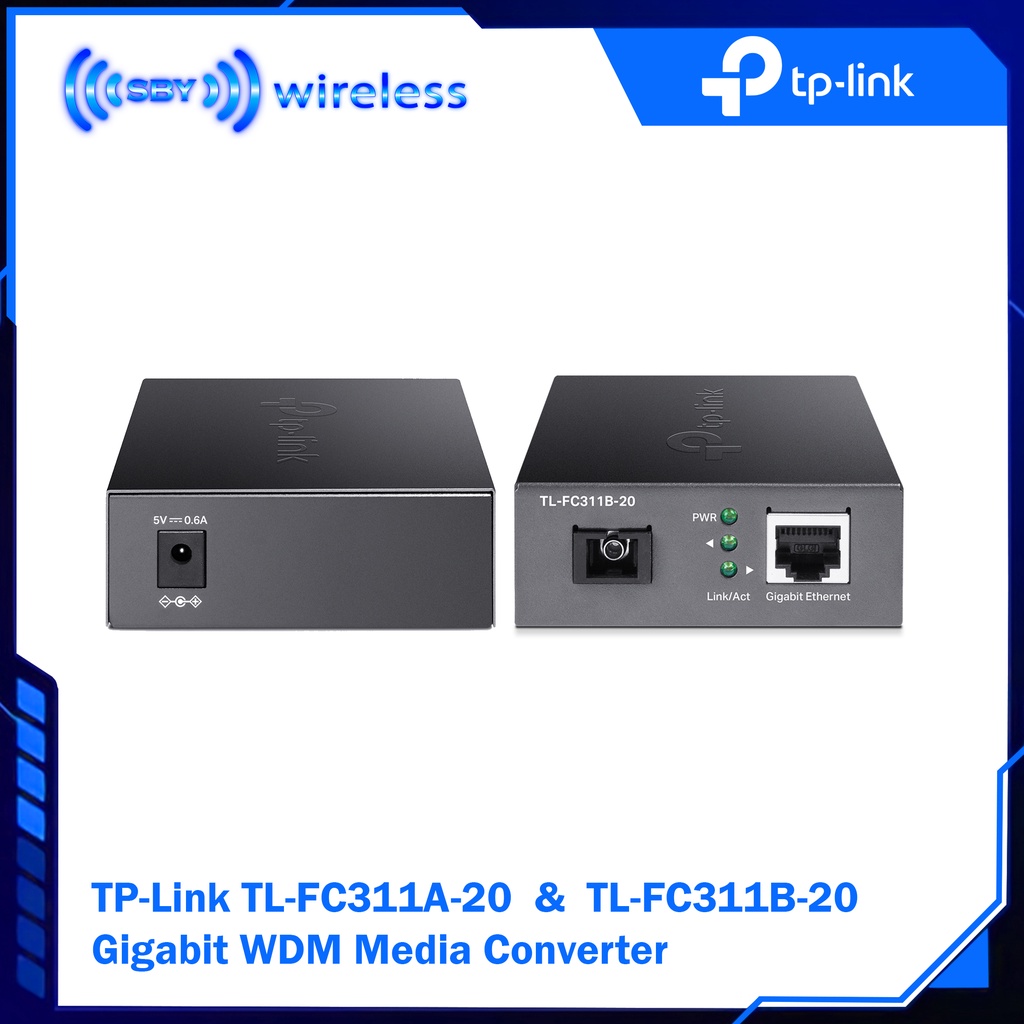

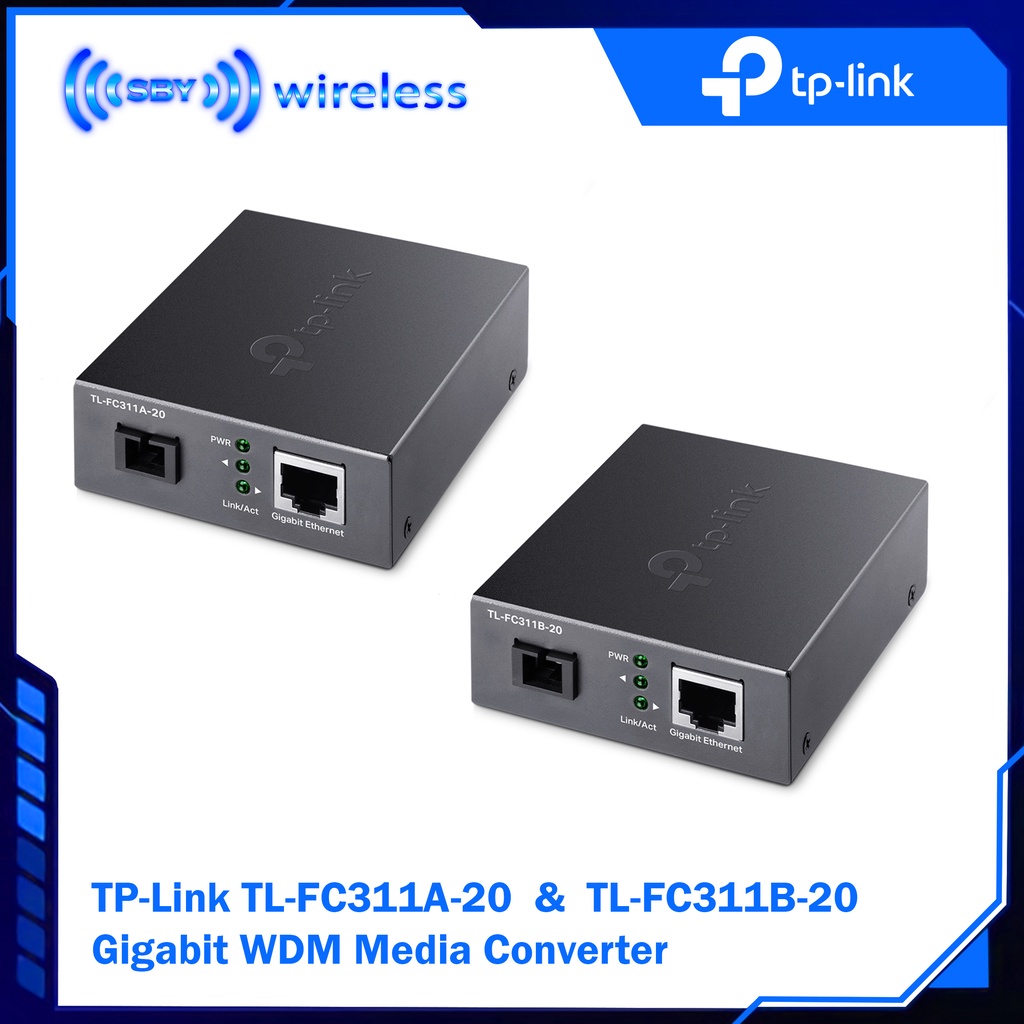

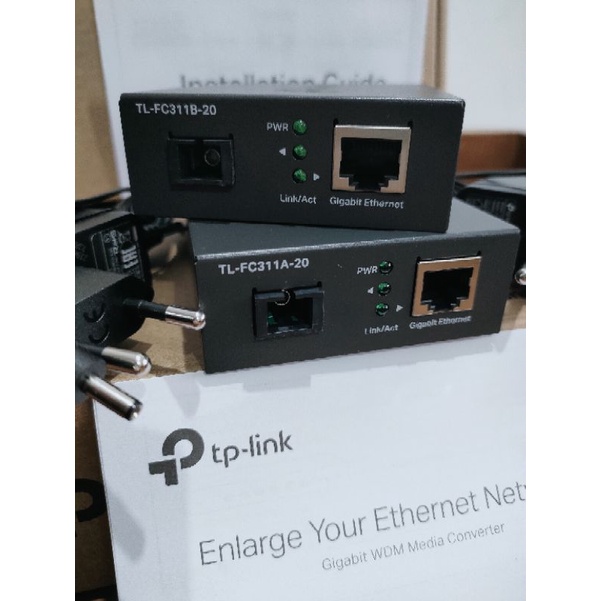

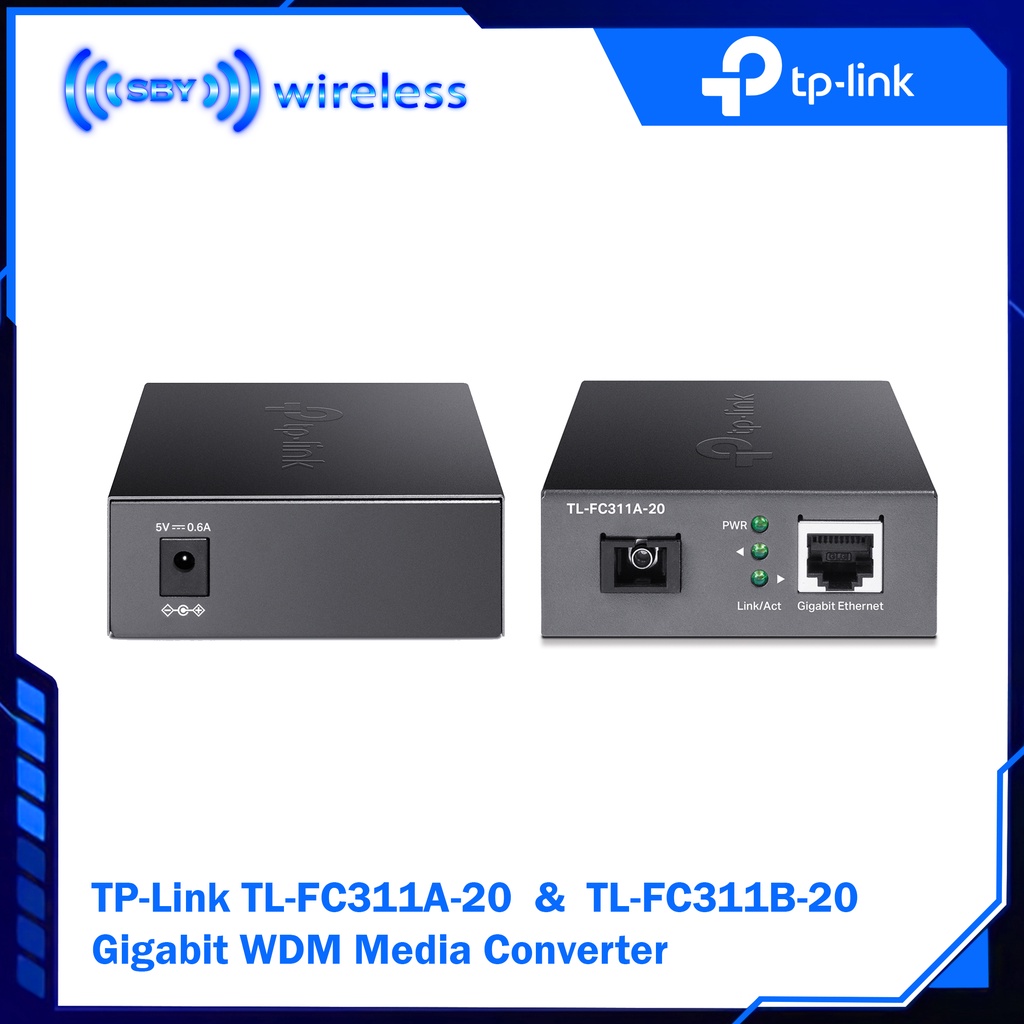

The TP-Link TL-FC311A-20 and TL-FC311B-20 are an gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port,
which can convert between electrical and optical signals.
And long-distance data transmission through optical fiber can be applied to commercial scenarios such as remote video surveillance system and wireless networking.

The TP-Link TL-FC311A-20 and TL-FC311B-20 adopts WDM (wavelength division multiplexing) technology,
helping send and receive data at a distance of up to 20 km with only one single mode fiber,
which saves half of the cable deployment cost for customers compares to dual-fiber deployment.
TL-FC311A-20 dan TL-FC311B-20 transmits data at 1550 nm wavelength and receives data at 1310 nm wavelength on optical fiber.
Therefore, the terminal device used in conjunction with the TL-FC311A-20 and TL-FC311B-20 should send data at a wavelength of 1310 nm and receive data at a wavelength of 1550 nm.

TP-Link another media converter TL-FC311B-20 is one of the products that can cooperate with TL-FC311A-20.

CONDITION
Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

WARRANTY
This item comes with 12-month manufacturer's warranty.

FEATURES
• 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
• Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
• Adopts WDM technology, transmitting and receiving data on one single fiber
• Extends fiber distance up to 20 km (12.4 miles)

QUICK SPECIFICATIONS

• Brand: TP-Link
• Standards and Protocols: IEEE 802.3i, 802.3u, 802.3ab, 802.3z
• Operating Temperature: 0˚C to 50˚C (32˚F to 122˚F)
• Storage Temperature: -40˚C to 70˚C (-40˚F to 158˚F)
• Operating Humidity: 10% to 90% RH non-condensing
• Storage Humidity: 5% to 90% RH non-condensing
• Interface: 1× Gigabit SC Fiber Port and 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)
• Network Media: Single-mode Fiber and UTP category 5, 5e cable (maximum 100m)
• Power Supply: External Power Adapter: 5 V/0.6 A
• LED: PWR, Link/Act
• Dimensions: ( W x D x H ) 3.7 × 2.9 × 1.1 in and (94.5×73.0×27.0 mm)
• Wave Length: 1550 nm TX, 1310 nm RX
• Fiber Type: 9/125 μm single-mode fiber
