Detail Senter Joinwit JW3105A VFL (visual fault locator) 20 mw senter fo 20km

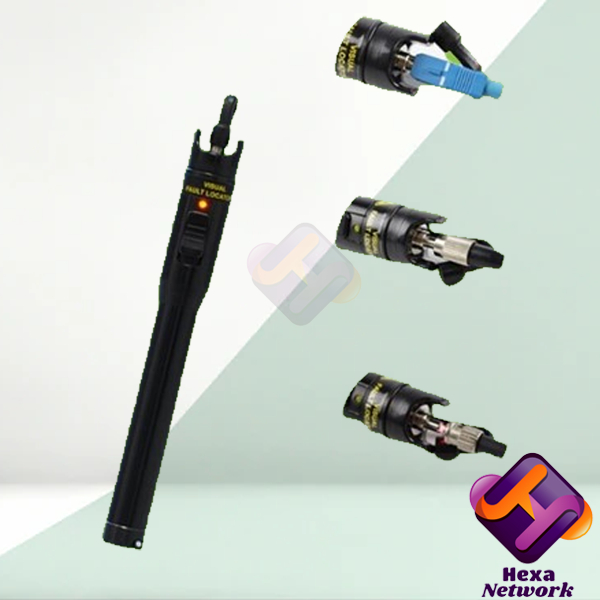

Deskripsi : JW3105A Pen-type Visual Fault Locator (VFL) 20mw 20km

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

Garansi 1 Minggu
Harga 1 Pcs

Type
JW3105A pen-type Visual Fault Locator
Central Wavelength 650nm10nm (635nm can be required on request)
Emitter Type FP-LD
Output Power Optional choice for 1mw, 10mw on actual needs
Optical Connector 2.5mm universal connectorFor 1.25mm connectors, FC (Male)-LC (Female) convertor can be optional on customer requests
Operating Model Both CW and Pulse available
Pulse Frequency 2~3Hz
Power Supply 2 AA alkaline batteries
Battery Operating Time
650nm@1mw 65hou
r650nm@10mw15hour

Test with Panasonic LR6 AA ALKALINE battery
Operating Temperature -10~+45 ()
Storage Temperature -40~+70 ()
Dimension (mm)
A172*24mm (Cylindrical)
B180*19mm
Weight 125g( Including battery )
