Sensor Ultrasonic HY SRF05 Distance Module Sensor Jarak Arduino SR 05

Komputer & Aksesoris > Proyektor & Aksesoris > Pointer > Sensor Ultrasonic HY SRF05 Distance Module Sensor Jarak Arduino SR 05

Tersedia

Periksa harganya...

Lihat tempat menjual

Toko:Pi ToserbaLihat semua produk Elektronik oleh Pi Toserba

Pengiriman Ekspres
Barang yang diperiksa
Bayar di tempat berlaku
Kualitas, Prestise
Pengembalian produk
Dukung pembuatan faktur

Deskripsi Produk Spesifikasi

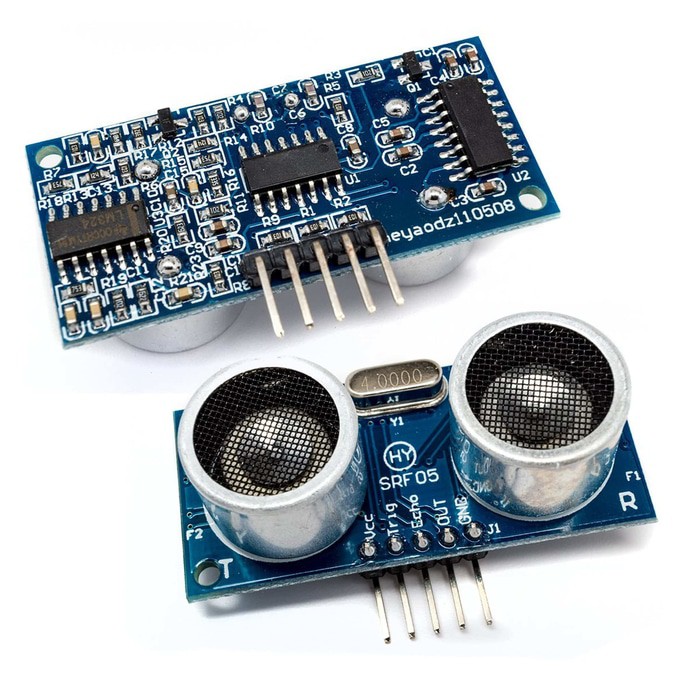

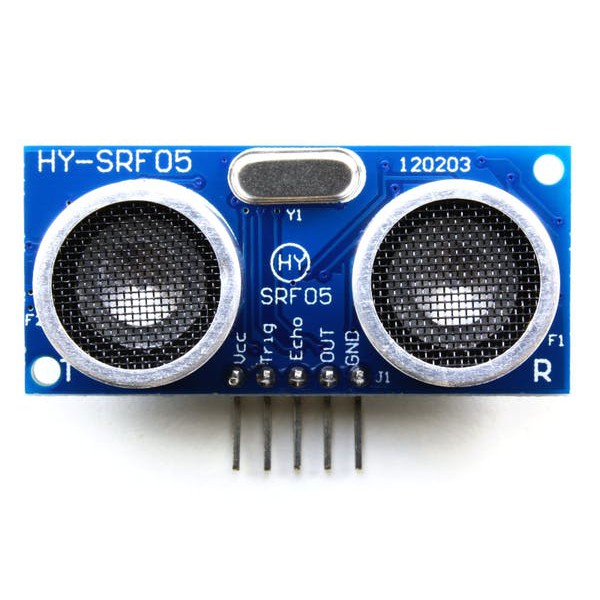

Detail Sensor Ultrasonic HY SRF05 Distance Module Sensor Jarak Arduino SR 05

Detecting range: 3cm-4M
Best in 30 degree angle
Electronic brick compatible interface
5VDC power supply
Breadboard friendly
Dual transducer
library ready

Specification:

Working Voltage: 5V (DC)
Static current: Less than 2mA.
Output signal: Electric frequency signal, high level 5V, low level 0V
Sensor angle: Not more than 15 degrees.
Detection distance: 2cm-450cm.
High precision: Up to 0.3cm
Working tempter:-20C___+60C
Weight: 10
Size: 45x 21mm (L x W)

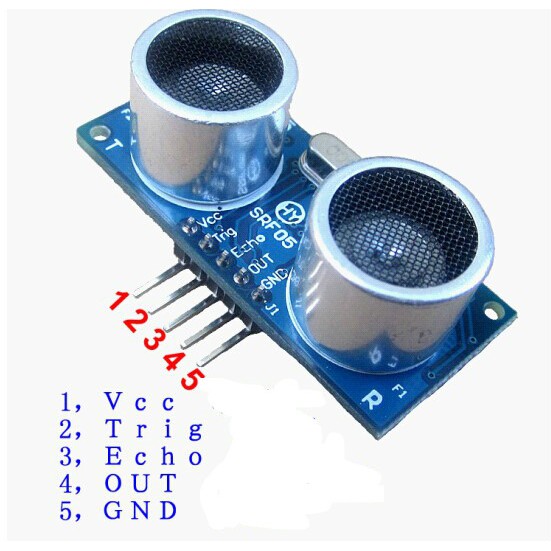

Connector Pin:

VCC
Trig (T)
Echo(R)
OUT
GND

Package Included:
1 X HY-SRF05 Ultrasonic Ranging Sensor Module
