Detail Sensor Transformer Arus Mikro Presisi Biru 5A / 5mA

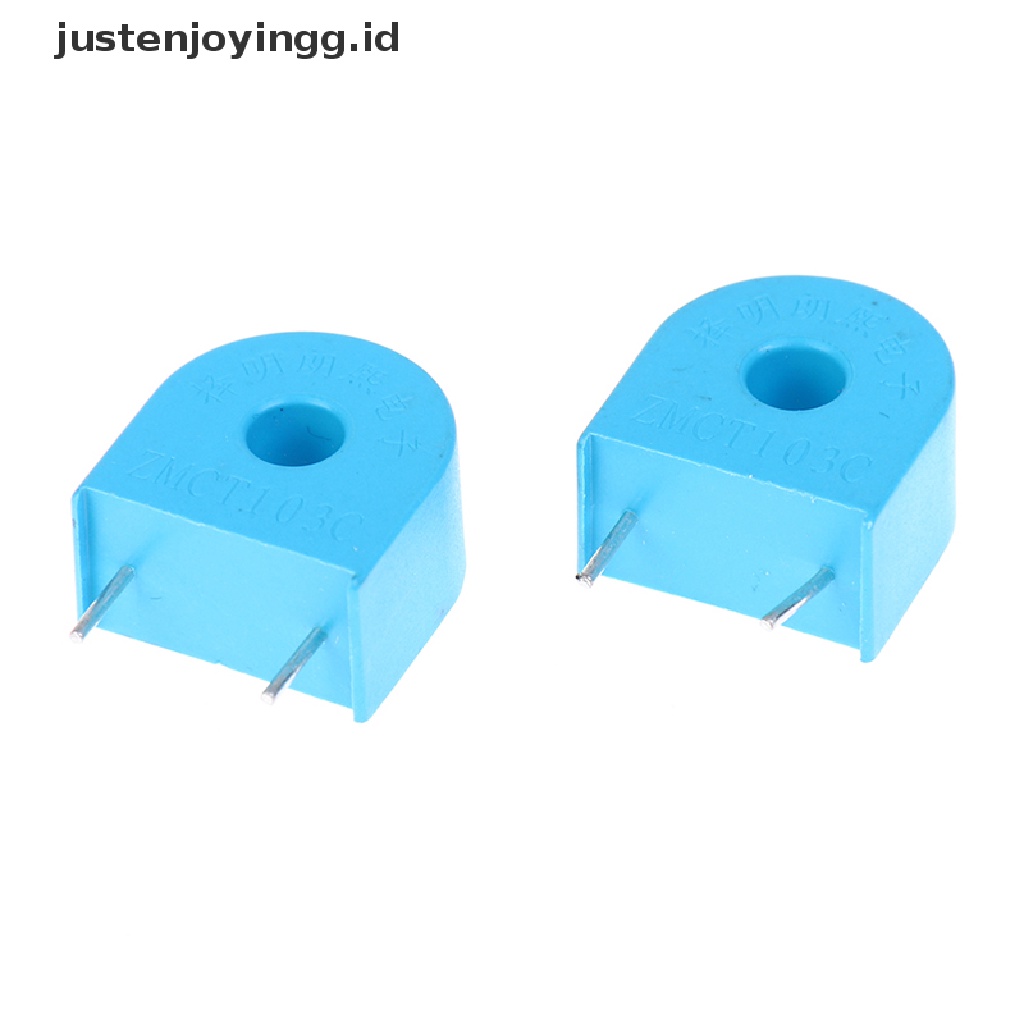

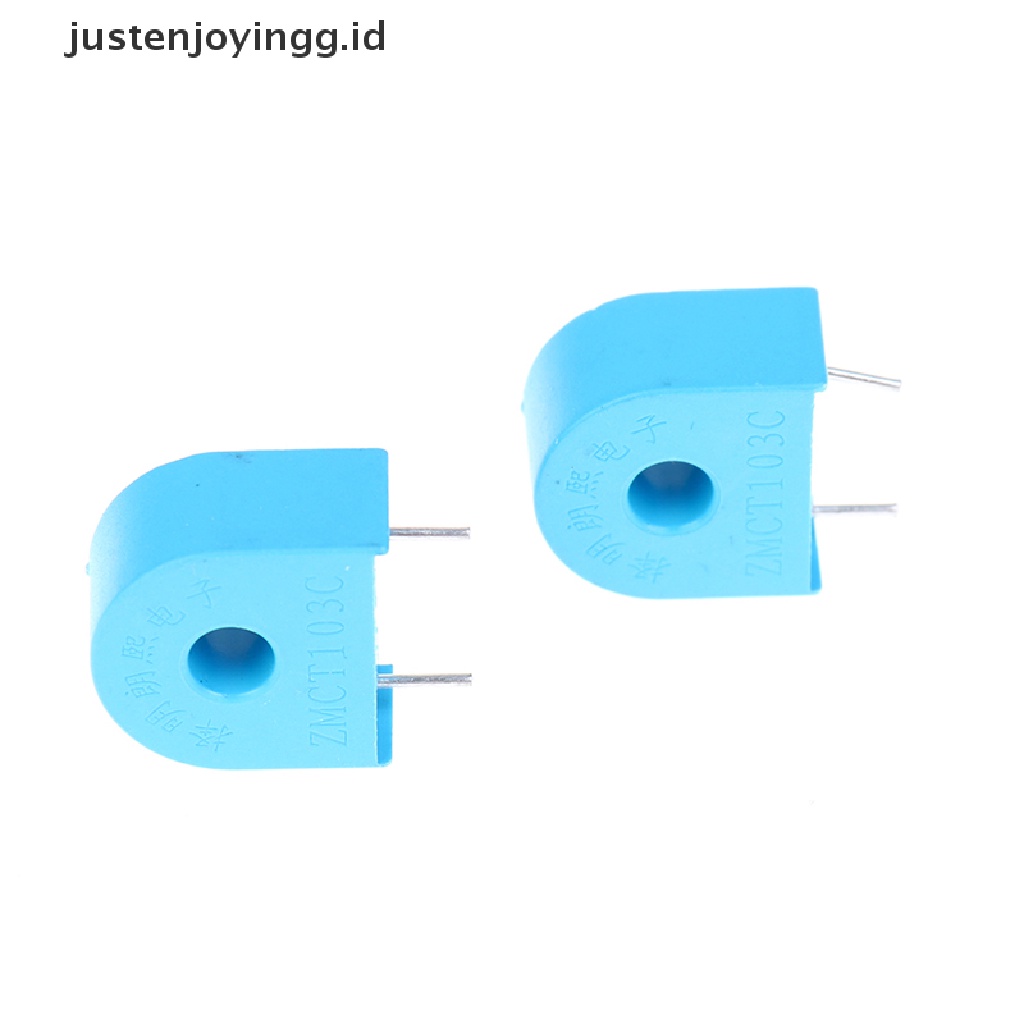

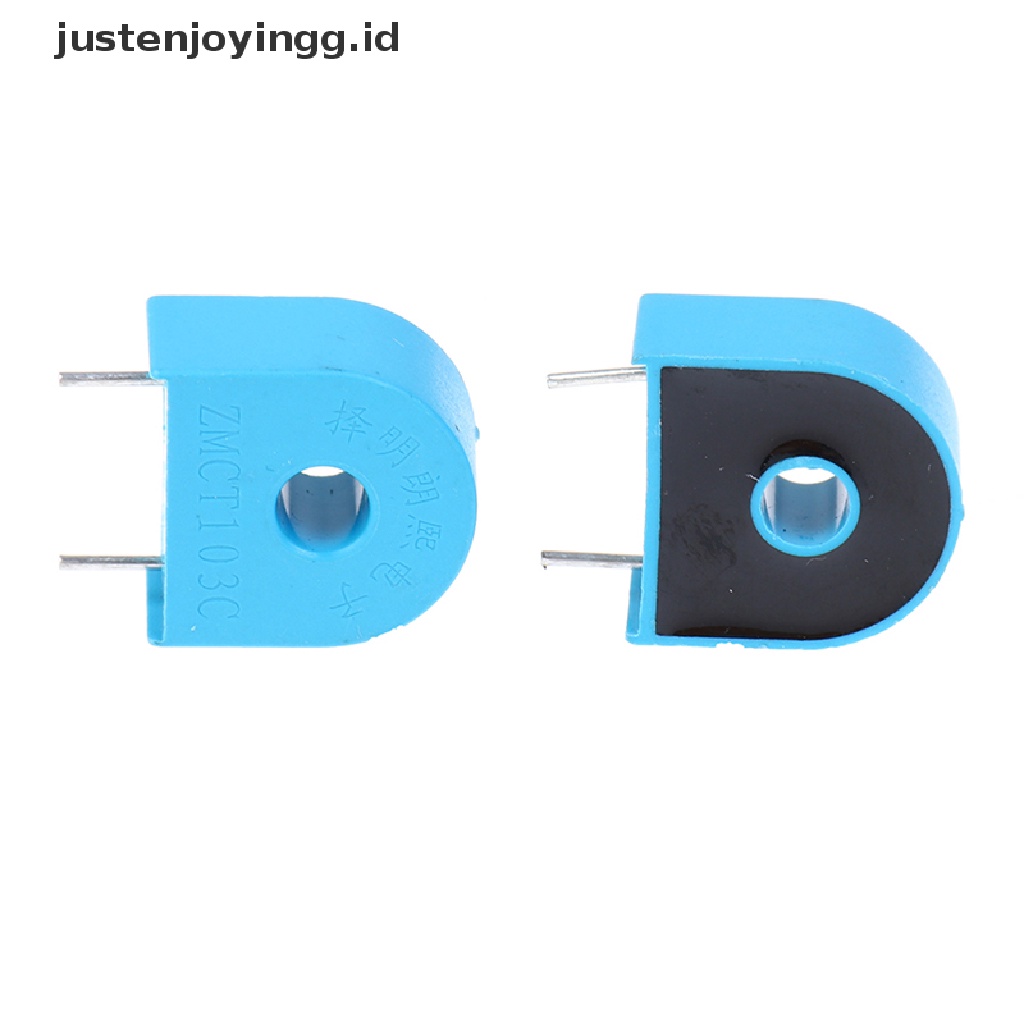

ZMCT103C Micro Precision Blue Current Transformer 5A/5mA Sensor
Feature:
Product model: ZMCT103C
Rated Input Current: 5A
Rated output current: 5mA
Ratio: 1000:1
Phase (when the rated input) : <= 15(100 ohm)
The linear range: 0-15A(100 ohm)
Linearity :0.2%
Isolation voltage: 4500V
Uses: For Current and power measurement
Sealing material: epoxy resin
Installation method: printed board installation
Working temperature: -40 to +85 degrees
Shell material: ABS
Package Include:
1 Pcs Current Transformer
