Sensor Timbangan Digital Load Cell Loadcell 350Kg

Detail Sensor Timbangan Digital Load Cell Loadcell 350Kg

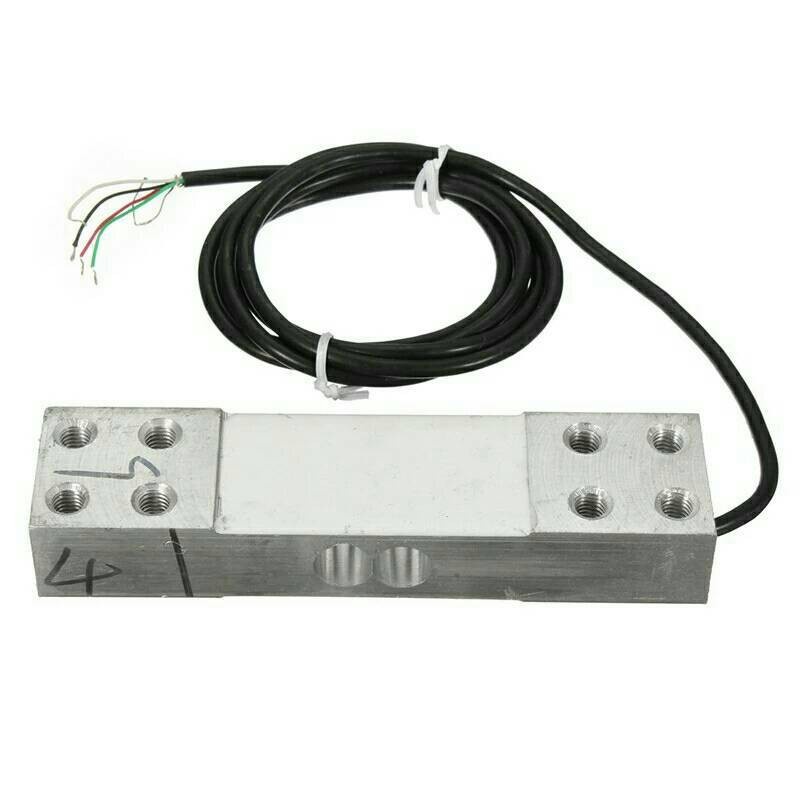

Loadcell 350kg
Panjang kabel: 1.5 meter
Dimensi: 14.6 x 4 x 2.3 cm
Jarak lubang baut depan ke depan dari as ke as: 3 cm
Jarak lubang baut depan ke belakang dari as ke as: 2 cm

Ready Stok langsung order saja
100% unit BARU
-----
Garansi quality CHECK sebelum kirim
GARANSI toko 1BULAN
-----
Dikirim dari JOGJA
Garansi packing AMAN (GRATIS bubble wrap/kardus)

LOAD CELL 350 KG

Technical parameters:
- Comprehensive error : 0.02% F.S
- Sensitivity :1.0 0.1mv / v
- Nonlinearity: 0.02% F.S
- Hysteresis: 0.02% F.S
- Importance of :0.02% F.S
- Creep: 0.02% F.S/10min
- 0:00 Output :2% F.S
- Input Impedance :405 10
- Output impedance :350 3
- Insulation resistance :5000M (100VDC)
- Excitation voltage :5VDC ~ 12VDC
- Temperature compensation range :10 ~ +40
- Operating temperature range: -20 ~ +60
- Temperature effect on zero 0.03% F.S/10
- Temmp.effect 0.02% F.S/10
- Safe overload 120%
- Ultimate Overload 150%
- Protection class IP65
- Panjang kabel 1.5meter

Wiring
Black Power (Exc +)
White Power (Exc - )
Red Signal +
green signal -

------
Terimakasih sudah mengunjungi toko kami
Kita tunggu orderannya ya

Gambar produk
