Sensor Timbangan Digital Load Cell Loadcell 20Kg

Detail Sensor Timbangan Digital Load Cell Loadcell 20Kg

Sensor Timbangan Digital Load Cell Loadcell 20Kg
Ready Stok langsung order saja
100% unit BARU
-----
Garansi quality CHECK sebelum kirim
GARANSI toko 1BULAN
-----
Dikirim dari JOGJA
Garansi packing AMAN (GRATIS bublewarp/kardus)

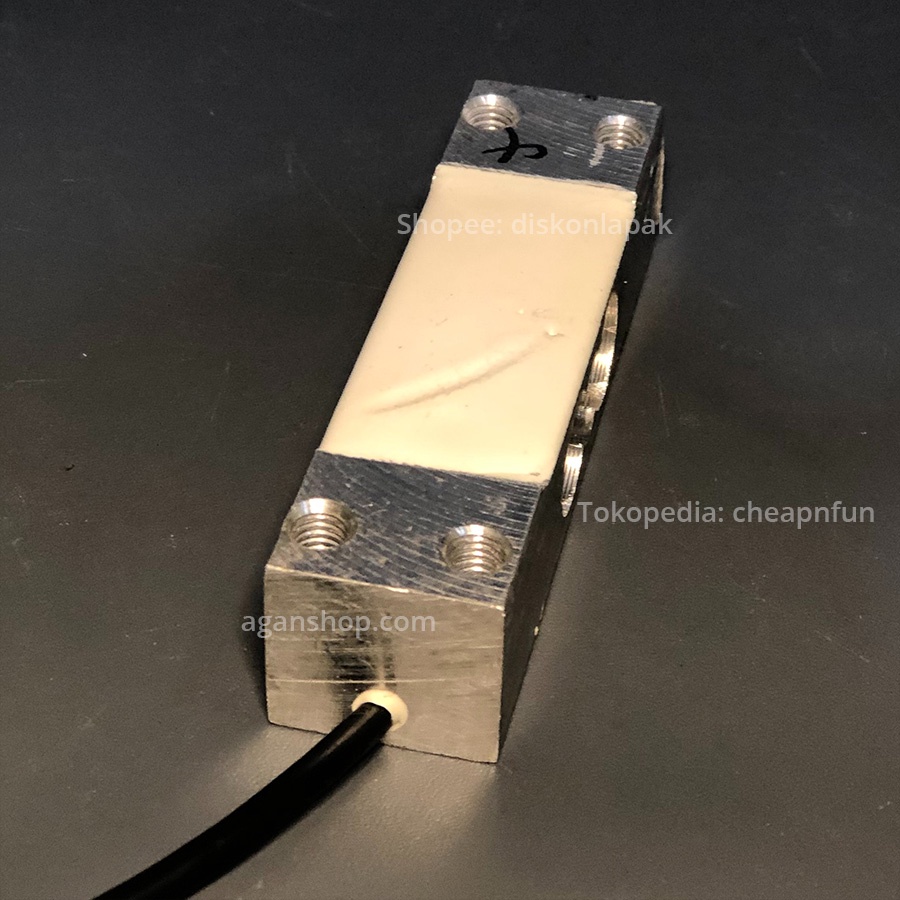

Load Cell 20Kg
Panjang kabel: 24cm
Dimensi: 9 x 2.3 x 2.1 cm

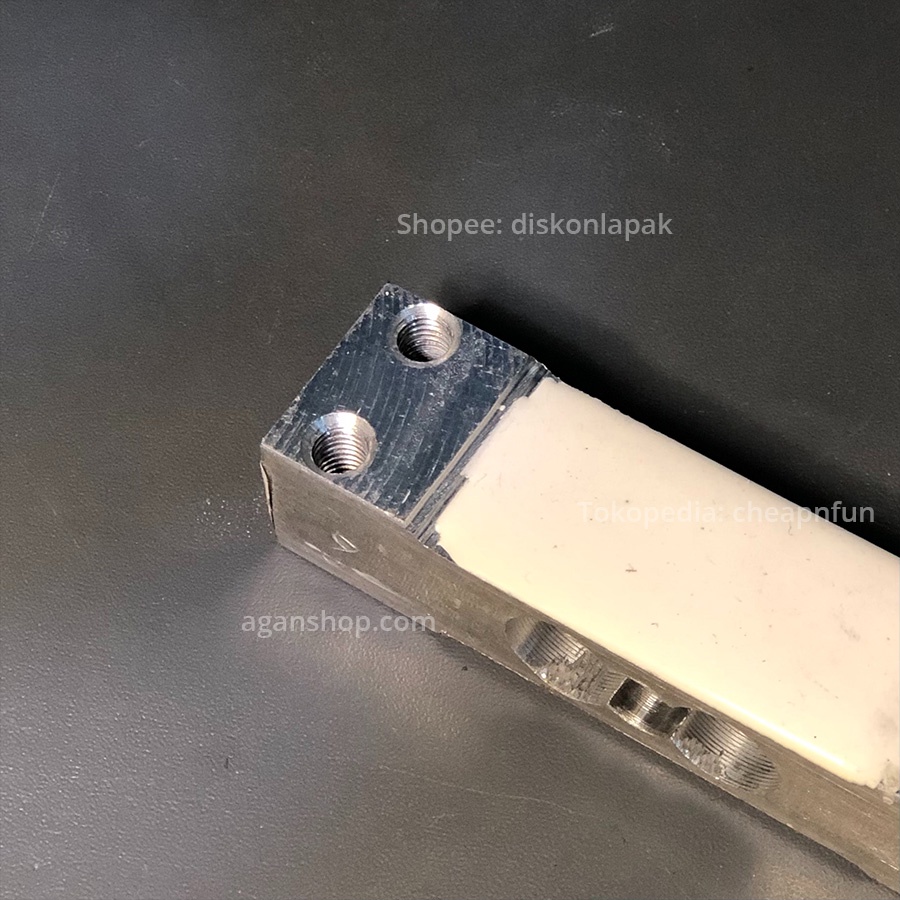

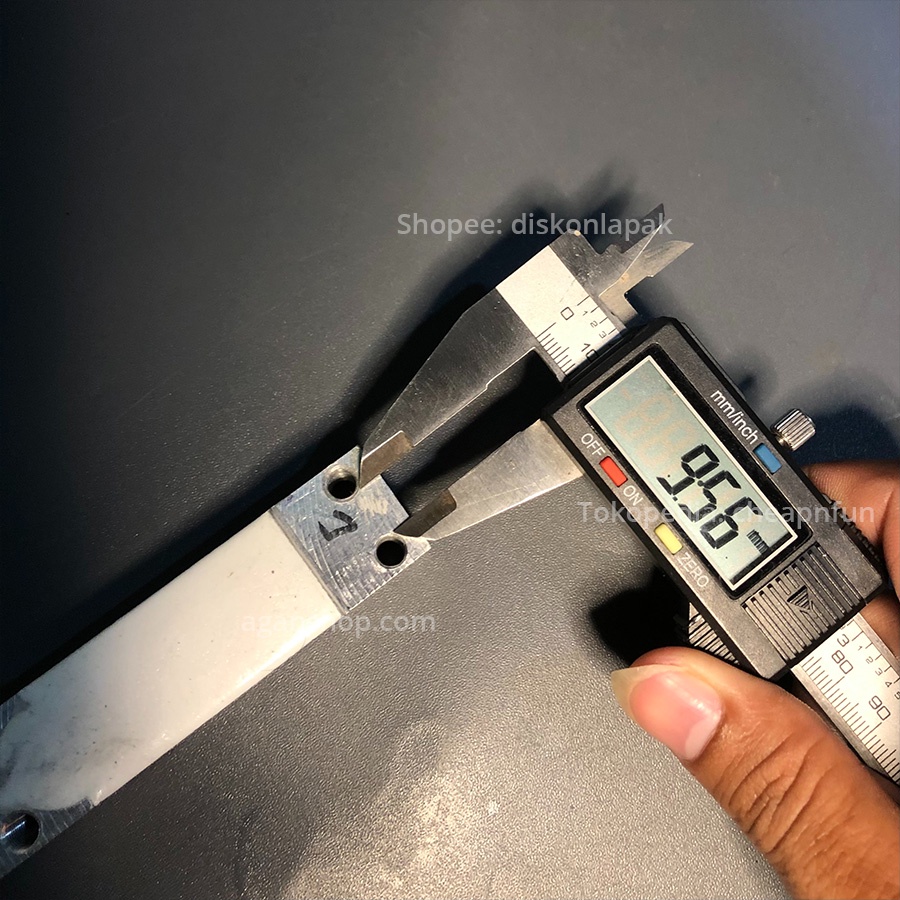

Jarak lubang baut dari as ke as: 1.5 cm

Technical parameters:
Comprehensive error : 0.02% F.S
Sensitivity :1.0 0.1mv / v
Nonlinearity: 0.02% F.S
Hysteresis: 0.02% F.S
Importance of :0.02% F.S
Creep: 0.02% F.S/10min
0:00 Output :2% F.S
Input Impedance :405 10
Output impedance :350 3
Insulation resistance :5000M (100VDC)
Excitation voltage :5VDC ~ 12VDC
Temperature compensation range :10 ~ +40
Operating temperature range: -20 ~ +60
Temperature effect on zero 0.03% F.S/10
Temmp.effect 0.02% F.S/10
Safe overload 120%
Ultimate Overload 150%
Protection class IP65
Panjang kabel 1.5meter

Wiring
Black Power (Exc +)
White Power (Exc - )
Red Signal +
green signal -

------
Terimakasih sudah mengunjungi toko kami
Kita tunggu orderannya ya

Gambar produk
