Sensor Timbangan Digital Load Cell Loadcell 200Kg Kapasitas 200kg

Detail Sensor Timbangan Digital Load Cell Loadcell 200Kg Kapasitas 200kg

Loadcell 200kg

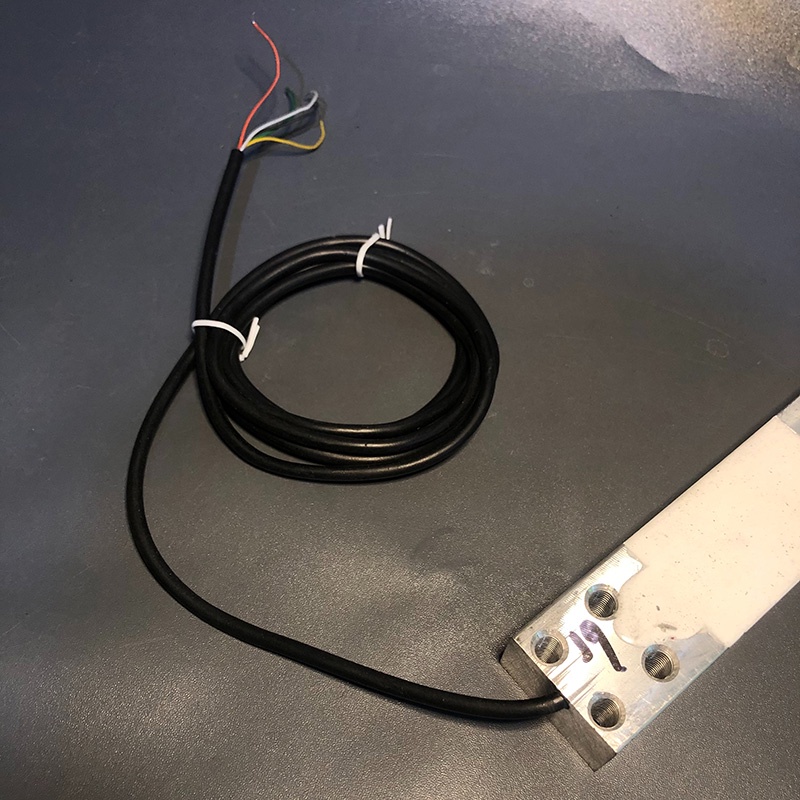

Panjang kabel: 1.5 meter

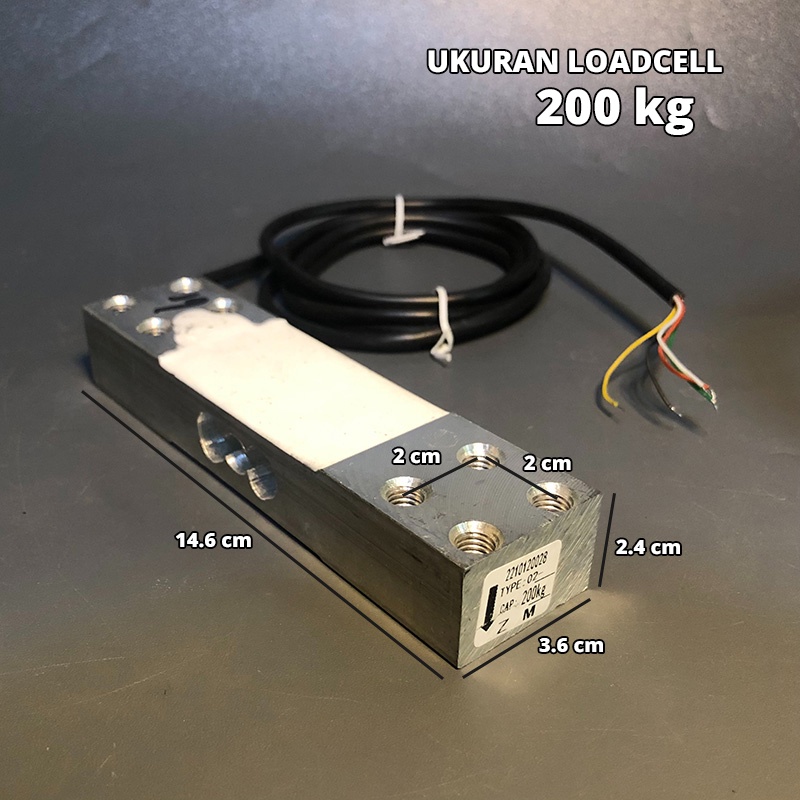

Dimensi: 14.6 x 3.6 x 2.4 cm
Jarak lubang baut depan ke depan dari as ke as: 2 cm
Jarak lubang baut depan ke belakang dari as ke as: 2 cm

Technical parameters:

Comprehensive error : 0.02% F.S
Sensitivity :1.0 0.1mv / v
Nonlinearity: 0.02% F.S
Hysteresis: 0.02% F.S
Importance of :0.02% F.S
Creep: 0.02% F.S/10min
0:00 Output :2% F.S
Input Impedance :405 10
Output impedance :350 3
Insulation resistance :5000M (100VDC)
Excitation voltage :5VDC ~ 12VDC
Temperature compensation range :10 ~ +40
Operating temperature range: -20 ~ +60
Temperature effect on zero 0.03% F.S/10
Temmp.effect 0.02% F.S/10
Safe overload 120%
Ultimate Overload 150%
Protection class IP65

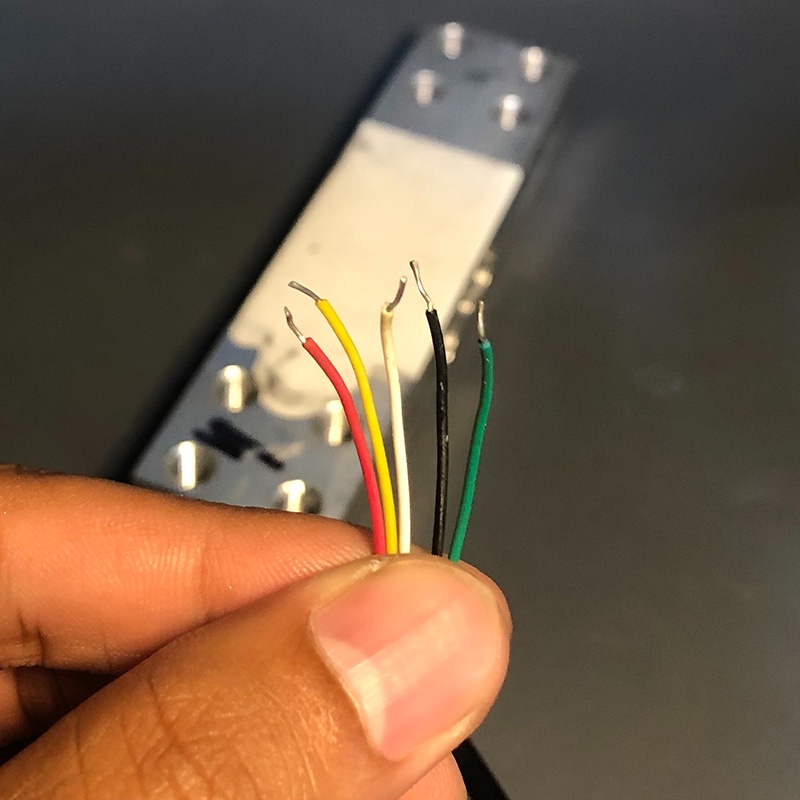

Wiring
Black Power (Exc +)
White Power (Exc - )
Red Signal +
green signal -

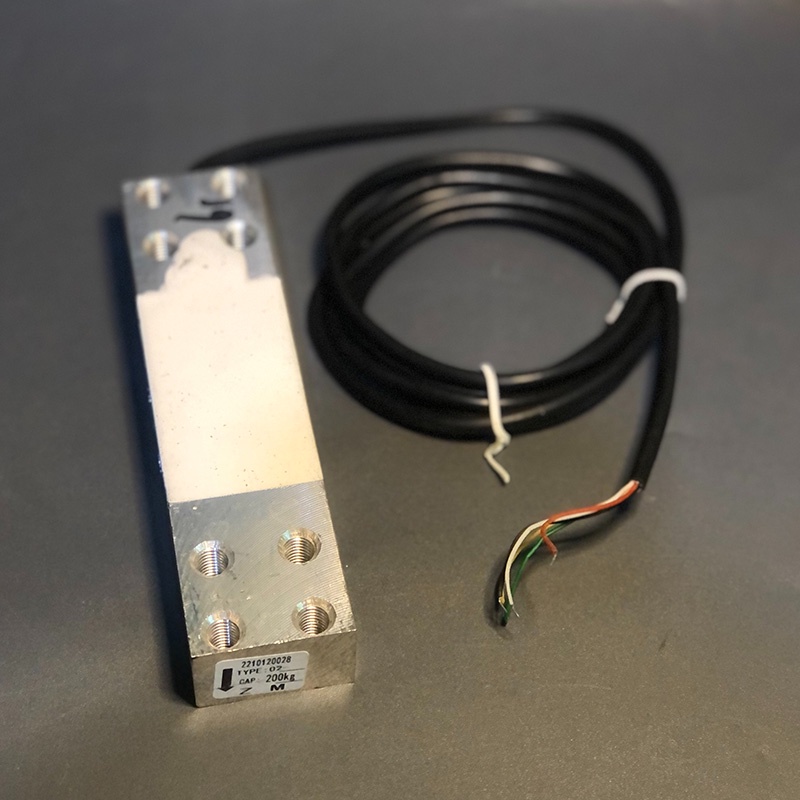

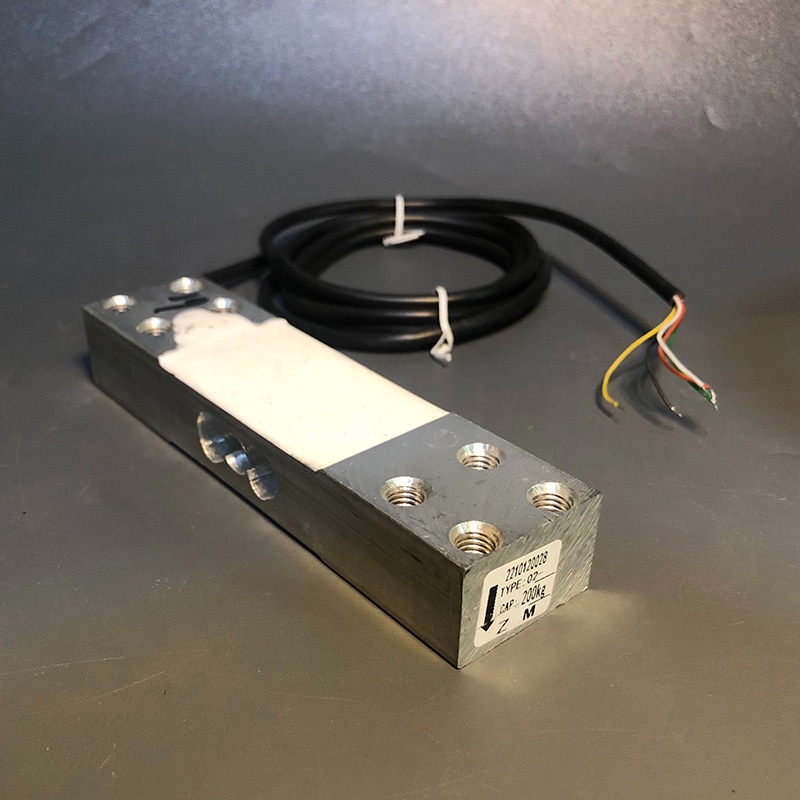

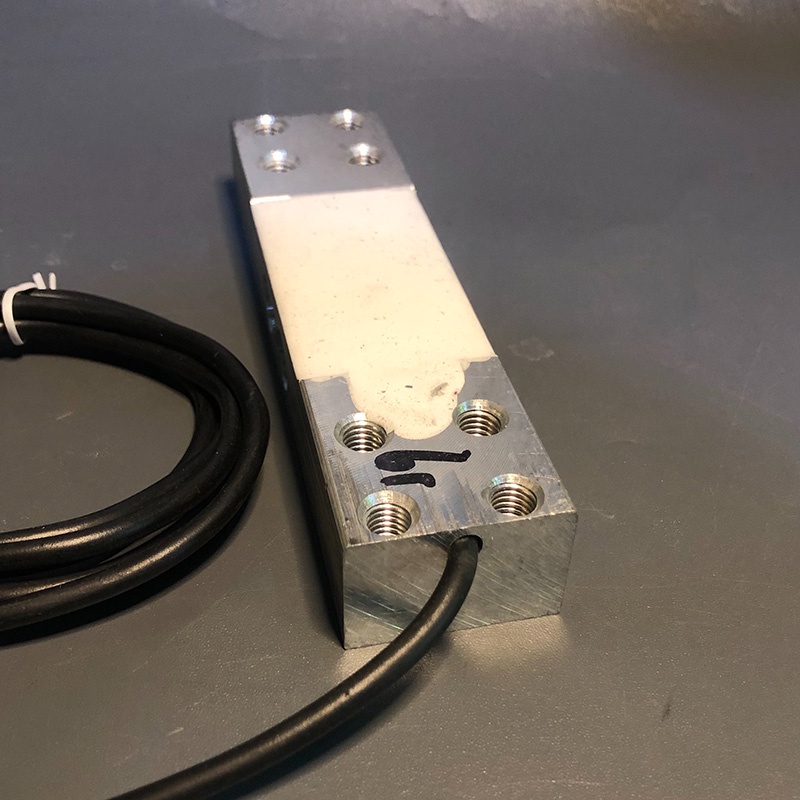

Gambar produk
