Detail Sensor Temperatur 18B20 Waterproof 1 meter (1574)

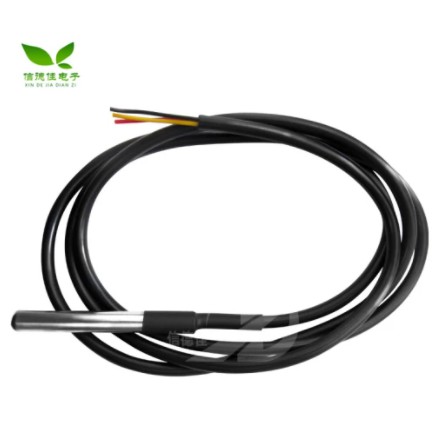

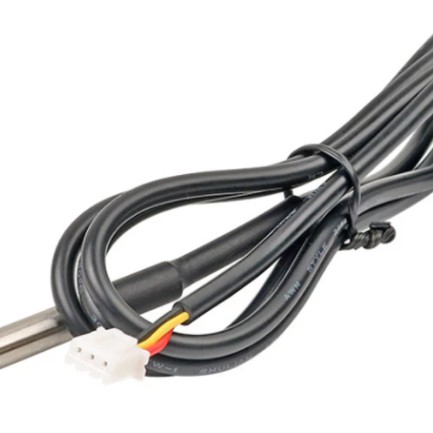

Sensor Temperatur 18B20 Waterproof 1 meter (1574)Here is a DS18B20 original chip,three wire temperature sensor

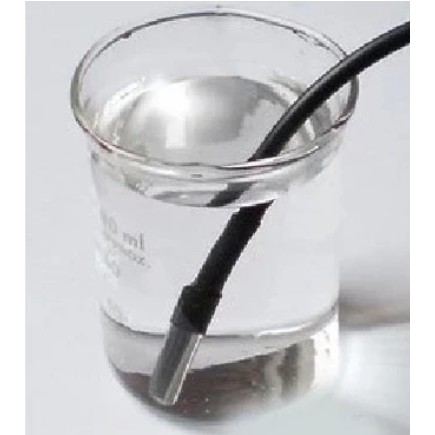

High quality stainless steel tube encapsulation waterproof moistureproof prevent rust
Stainless steel tube size:Approx.6*50mm(Diameter*Length)
9 ~ 12 adjustable resolution
Power supply range:3.0V-5.5V
Operating temperature range: -55C - +125C (-67F - +257F)
Storage temperature range: -55C to - +125C (-67F - +257F)
Accuracy over the range of -10C to +85C: 0.5C.
No other components, unique single bus interface
Output lead:red (VCC), yellow(DATA) , black(GND)
Cable length:Approx.100 cm
