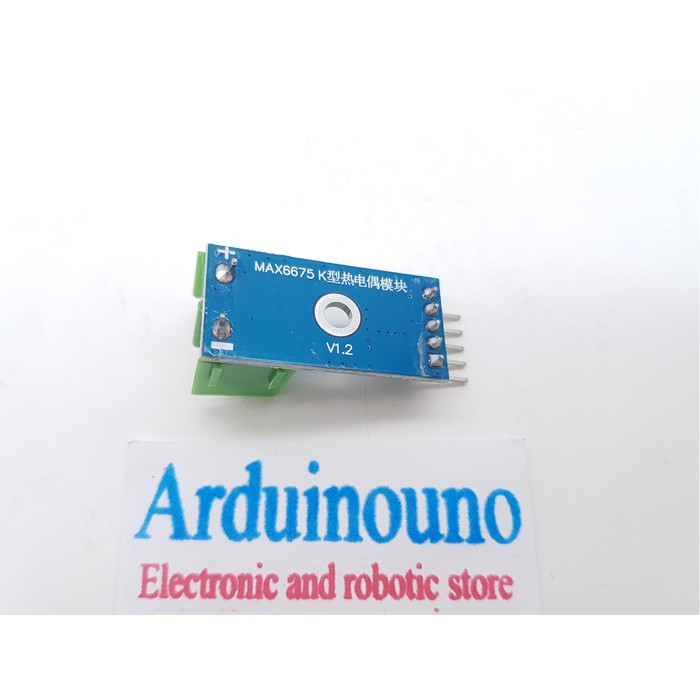

Sensor Suhu Max6675 Module MAX 6675
Deskripsi singkat
Komputer & Aksesoris > Komponen Desktop & Laptop > UPS & Stabilizer > Sensor Suhu Max6675 Module MAX 6675
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail Sensor Suhu Max6675 Module MAX 6675
Deskripsi Sensor Suhu Max6675 Module MAX 6675Deskripsi Produk
- 12-bit resolution Serial K-type thermocouple converter.
- Cold junction compensation.
- Linearity correction.
- Thermocouple break detection.
Based on the principle of the chip, module is available to measure temperature, using the three-wire SPI communication, plus a K-type thermocouple probe connected to Arduino mainboard.
Module can be used in room temperature measurement, also refrigerator, power room, textile machinery, air conditioners and other small space industrial equipment temperature measurement
1. Working voltage: DC5V
2. Operating Current: 50mA
3. Temperature measuring range: -200C - 1300 C [Test procedure for 0-1023 C]
4. Temperature measurement accuracy: 1.5 C
5. Temperature resolution: 0.25 C
6. Output mode: SPI digital signal
7. Storage temperature: -50 ~ 150 C
8. Weight: 4g
9. Size: 25mm * 15mm * 13mm
