Detail Sensor Load Cell Weight CZL-611N ( 1695)

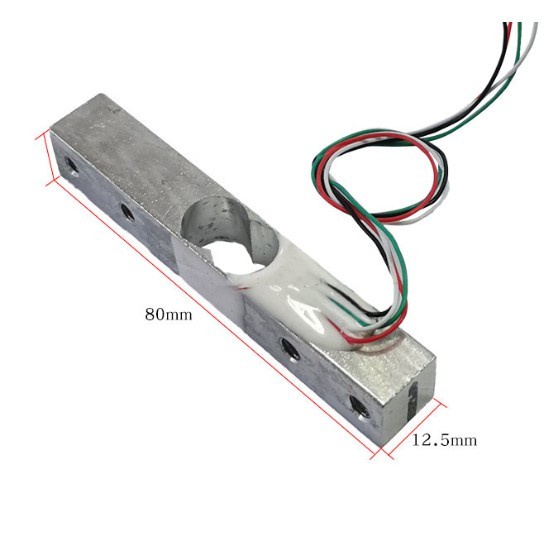

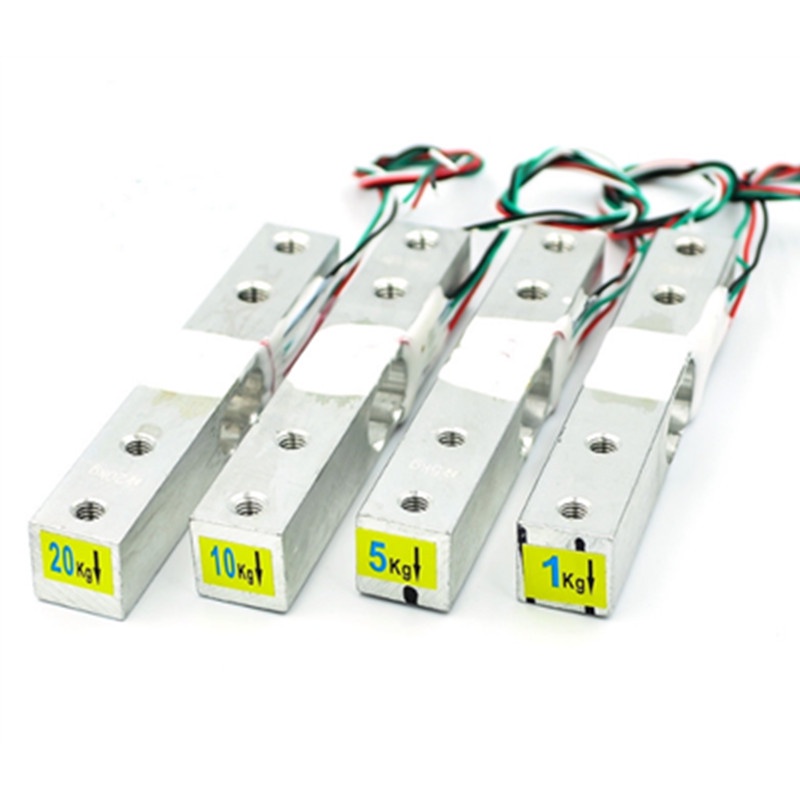

Sensor Load Cell Weight CZL-611N ( 1695)Load Cell Weight Sensor 1KG 5KG 10KG 20KG HX711 Module Electronic Scale Aluminum Alloy Weighing Pressure Sensor
Technical Parameters
Range: 1-10kg
Output sensitivity: 1.0±0.1mV/V
Zero output: ±0.1mV/V
Nonlinear: 0.05% F.S
Lag: 0.05% F.S
Repeatability: 0.05% F.S
Creep: 0.05% F.S/3min
Output impedance: 1000±5% ohms
Zero temperature drift: 0.05% F.S/10°C
Temperature sensitivity drift: 0.05% F.S/10°C
Lead Cable
Motivation is positive: red
Incentive negative: green
Signal is positive: black
Signal Negative : white
