SENSOR LJ18A3-8-Z-BX-NPN NO DC 6V 36V DIAMETER 18MM INDUCTIVE SENSOR PROXIMITY

Elektronik > Kelistrikan > Saklar > SENSOR LJ18A3-8-Z-BX-NPN NO DC 6V 36V DIAMETER 18MM INDUCTIVE SENSOR PROXIMITY
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail SENSOR LJ18A3-8-Z-BX-NPN NO DC 6V 36V DIAMETER 18MM INDUCTIVE SENSOR PROXIMITY

Deskripsi Produk

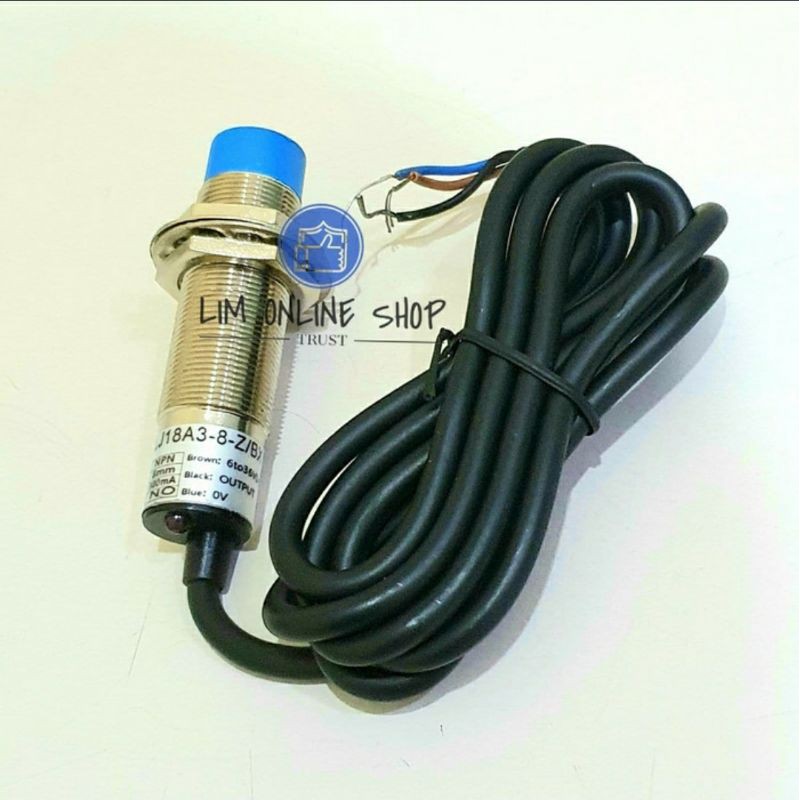

LJ18A3-8-Z/BX NPN DC 6V-36V Inductive Proximity Sensor Detection (3 wires)

Type: LJ18A3-8-Z/BX
Size: 70 x 18mm (L x Max.D)
Output: NPN three wire (NO) normally open type
The detection distance: 8 mm
Supply voltage: 6-36VDC
Output current: 300 mA
Objects can be detected: Metal
Wiring: Brown-Power supply, Blue-GND, Black-Signal

Gambar produk

SENSOR LJ18A3-8-Z-BX-NPN NO DC 6V 36V DIAMETER 18MM INDUCTIVE SENSOR PROXIMITY
SENSOR LJ18A3-8-Z-BX-NPN NO DC 6V 36V DIAMETER 18MM INDUCTIVE SENSOR PROXIMITY
