Sensor Hujan RainDrops Sensor detection sensor air Modul Kit deteksi hujan

Detail Sensor Hujan RainDrops Sensor detection sensor air Modul Kit deteksi hujan

bissmillahirrohmanirrohim



kirim kirim juga aman gan.

kenapa belanja di sini ?

"KARNA KITA MENGHARGAI UANG YANG ANDA KELUARKAN"

Pasalnya barang yang anda beli kan PART ELECTRONIC bos, masak gk kuatir kalo di kirim dari kota nan jauh di sana hehe ^_^
di expedisi kan gk mungkin hanya satu barang yang di kirim boss.

dalam satu box mobil tentu barang anda di tumpuk bersama paket kiriman lainnya bisa dibayangkan kalo barang anda berada di bawah sendiri hehe ^_^

Nah disini lah keuntungan belanja di Bejo Electronic barang anda kita packing dengan sepenuh hati sehingga aman gan bos hehe ^_^ insya allah,

Kita balut dengan bubble wrap dan bahan bahan peredam benturan lainnya. dan dan kita juga packing dengan kardus

jadi ??? gimana ??? Angkut aja bossku !!! ^_^ hehe

Product Use:
Robot kits , rain , rain sensor , can be used to monitor a variety of weather conditions , and turned into several fixed output signal and AO .
Product description:
1, the sensor uses a high -quality double-sided FR-04 materials , the large area of 5.0\'\' 4.0CM, and nickel -plated surface , effective against oxidation, conductivity, superior performance and lifetime areas ;
2 , the comparator output signal clean waveform is good , driving ability, than 15mA;
3 , power bits adjust the sensitivity ;
4, Working voltage 3.3V-5V
5, the output format : Digital switching output ( 0 and 1 ) and analog voltage output AO ;
6, with bolt holes for easy installation
7 , a small board PCB size : 3.2cm x 1.4cm
8 , using a wide voltage LM393 comparator
Features:
Connect the 5V power supply , power indicator light , sensor board does not drop when , DO output is high , the switch lights off , dripping a drop of water , DO output is low , the switch indicator light,
Brush above water droplets, has returned to the output high state. . . .
AO analog output can be connected to the microcontroller detects AD mouth drops of rain in the above size.
DO TTL digital outputs can also be connected to the microcontroller detects whether there is rain .

Wiring:
1, VCC: positive power supply (3-5V)
2, GND: tied to power supply
3, DO: TTL switching signal output
4, AO: analog output

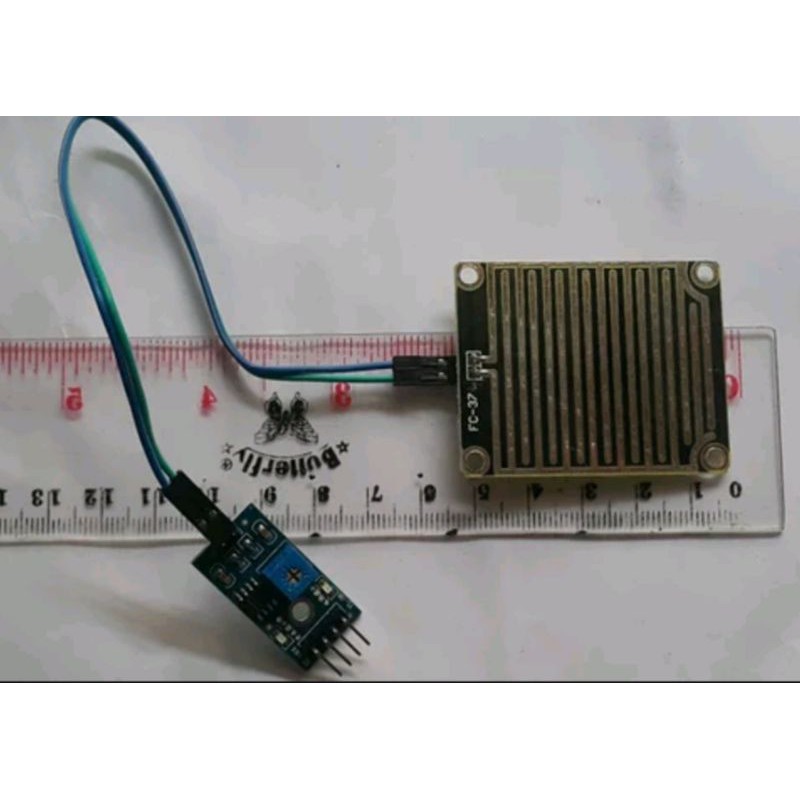

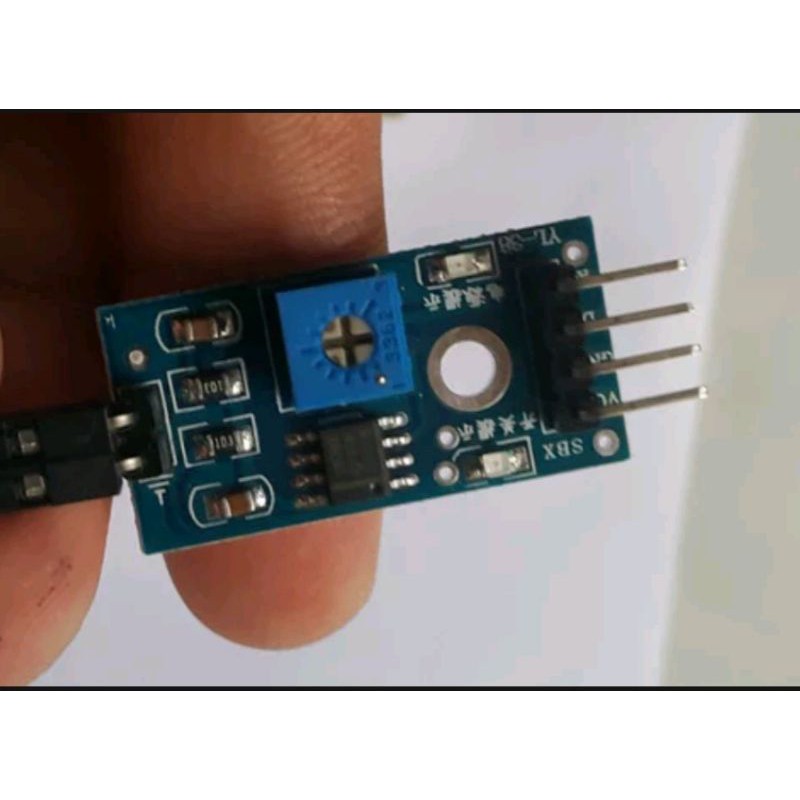

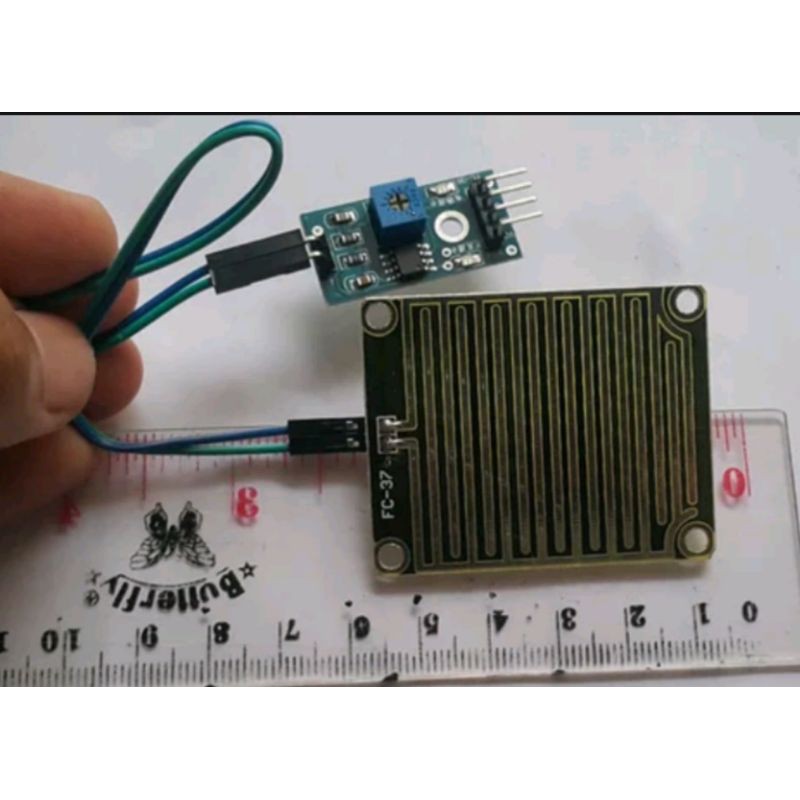

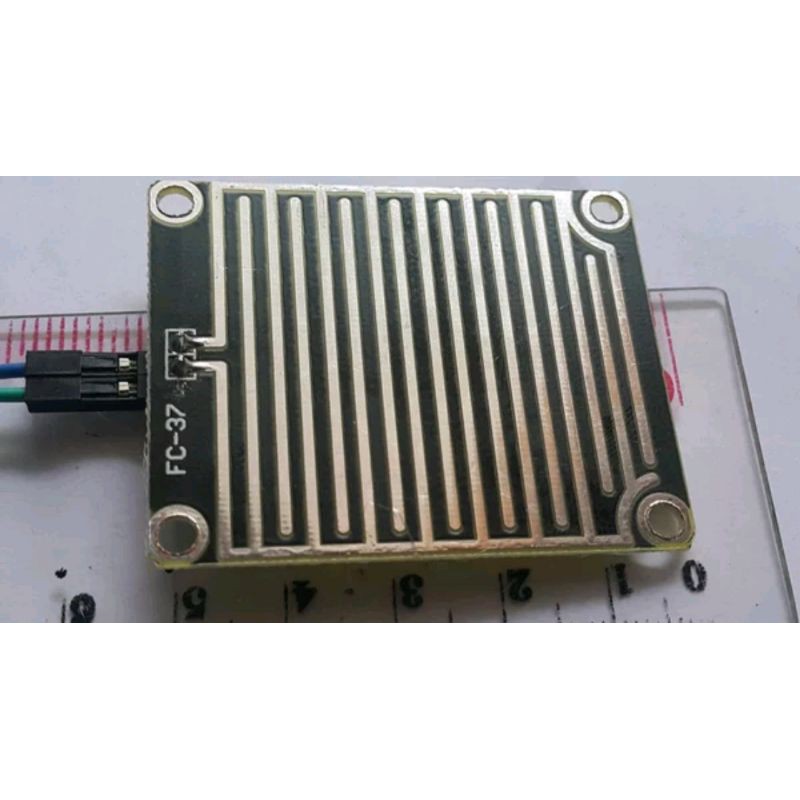

Gambar produk
