Sensor Debu DSM501A Dust Allergic Smoke Particles Module for arduino

Detail Sensor Debu DSM501A Dust Allergic Smoke Particles Module for arduino

Based on the same counter with the particle theory of light scattered by a unique detection method
Will be seized within the unit volume is equivalent to the absolute number of particles as a pulse signal output.
Can sense smoke particles produced smoke, dust and other allergic Housing
Can detect more than 1 micron or 2.5 micron particles of two small threshold.
Small volume, light weight, easy to install.
5V input circuit, to facilitate signal processing.
Built-in air generator, free to attract external atmosphere.
Maintenance is simple, keeping the long term characteristics of the sensor.
Purpose: Air Cleaner, air conditioners, ventilation fans, environmental monitoring

Feature:
Rated Power: 0.5W
Operating Voltage: 5V
Operating Current: 100mA
Open Circuit Current: 106mA
Operating Temperature: -20+or-85 degree
Light Intensity: 1000W/M2, 25 degree,AM1.5

Application:
Air cleaner or Air purifier
Air condition
Air quality monitor
Ventilator etc.

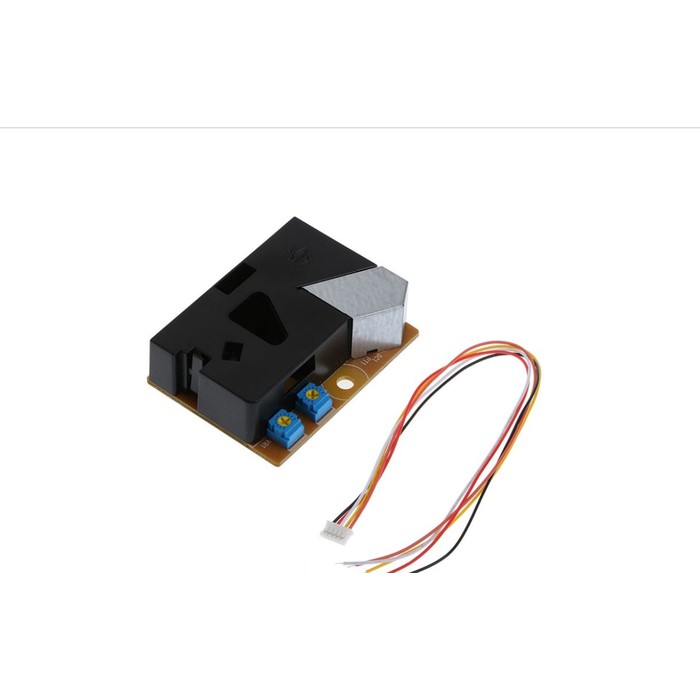

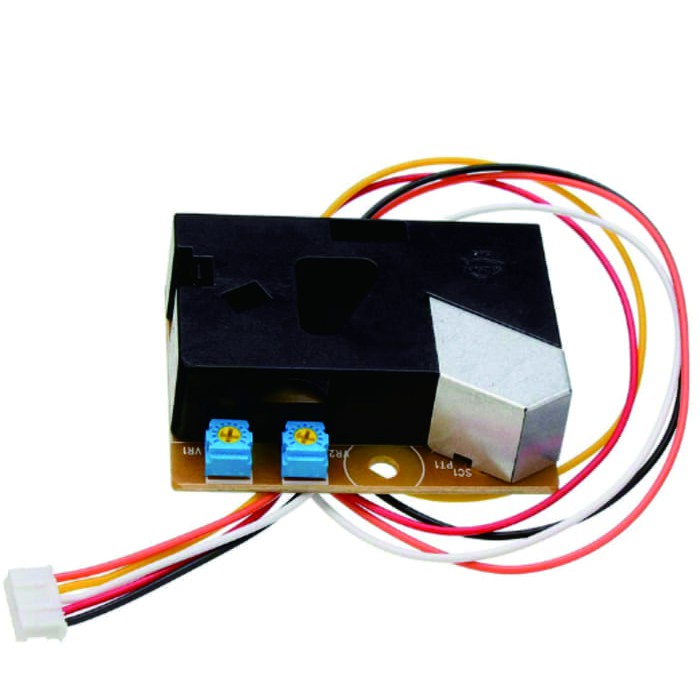

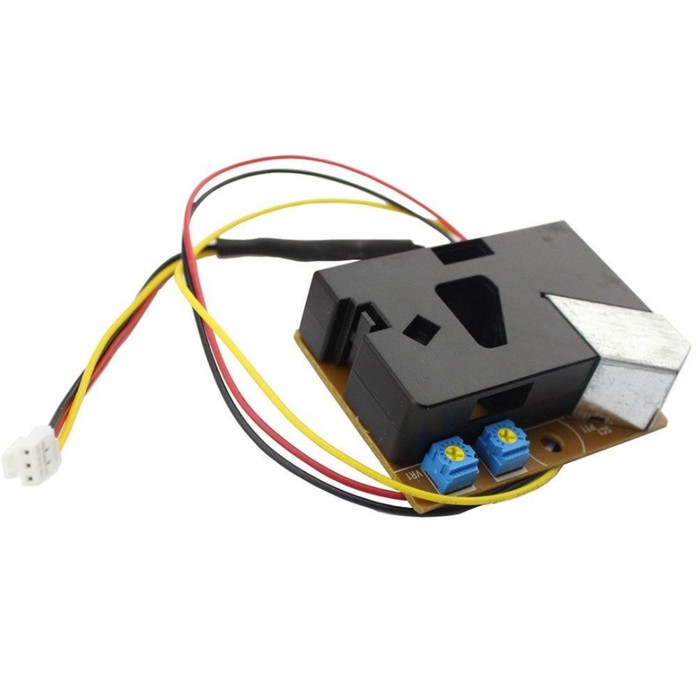

Gambar produk
