Sensor Cahaya AC 220 Volt ( Photo Electronic Sensor )

Detail Sensor Cahaya AC 220 Volt ( Photo Electronic Sensor )

Widely used for street, highway, factories, garden, ports, airports, farm, parks, schools, and other places.
Also can fit into solar lamps and lanterns, electric cars and other power supply voltage of 220V AC lamps and lanterns or equiment. It can be installed on the wood, metal and concrete pole.

Features:
1. Brand New
2. Compact, reliable lighting control consist of hermetically sealed CDS Photocell and Snap action Bimetallic Relay to insure electrical switching.
3. Application: Street Light, Factory, Garden, Harbor, Airport, Farm, Park, any other place

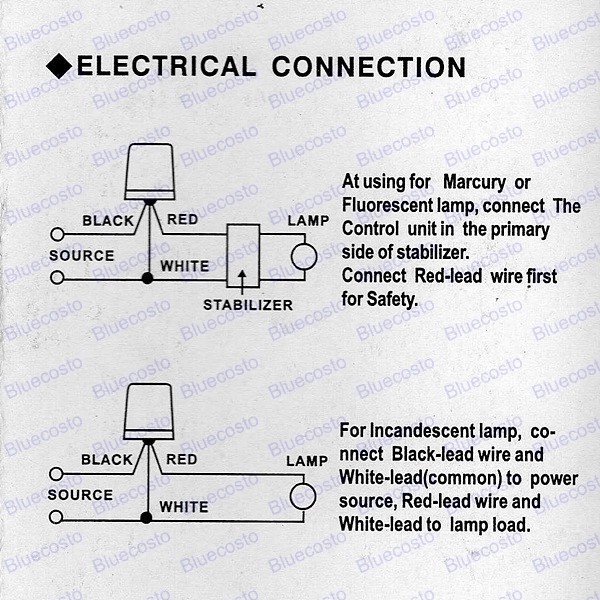

4. Operation: For incandescent lamp, connect black-lead wire and white-lead to power source, Red-lead wire and white-lead to lamp load.

Specification:
Sensitivity: unadjustable
Input Voltage: AC 220V
Max Load Current: 10A
Output: Relay
Delay Time: < 3 minutes
Frequency: 50-60Hz
Size: 5x4x3.2cm (LxWxH)

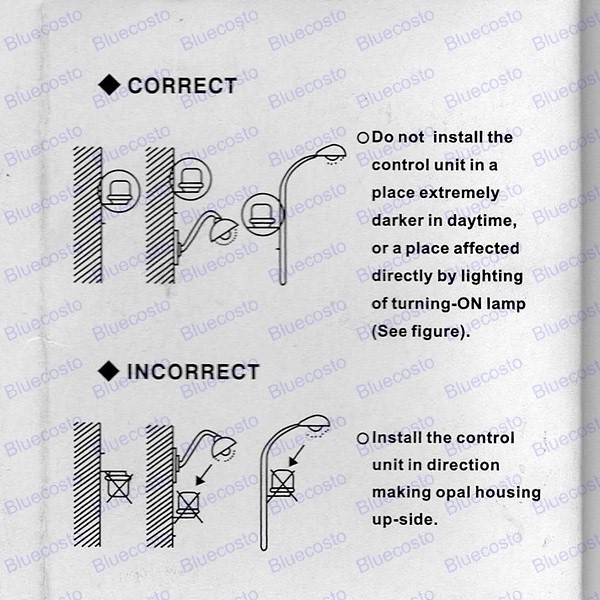

Caution: Do not install the control unit in a place extremely darker in daytime or a
place directly by lighting of turning-ON lamp.

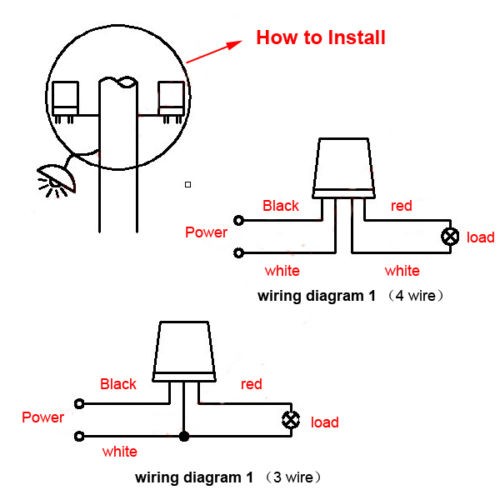

Wire connection: White & Black wire connect power, White & Red wire connect load.

Package Included:
1x Electric Street Lighting Control 220V AC

Catatan : ada jedah waktu sekitar 10-15 detik di sensor nya nya.

Gambar produk
