Sensor Arus ACS712 20A Ac Dc Hall Current ACS 712 Module For Arduino
Deskripsi singkat
Elektronik > Elektronik Lainnya > Sensor Arus ACS712 20A Ac Dc Hall Current ACS 712 Module For Arduino
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait

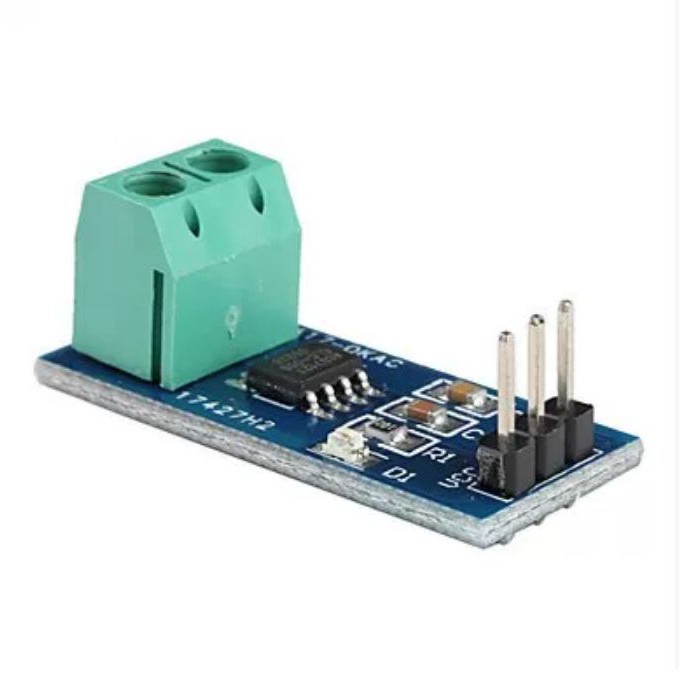

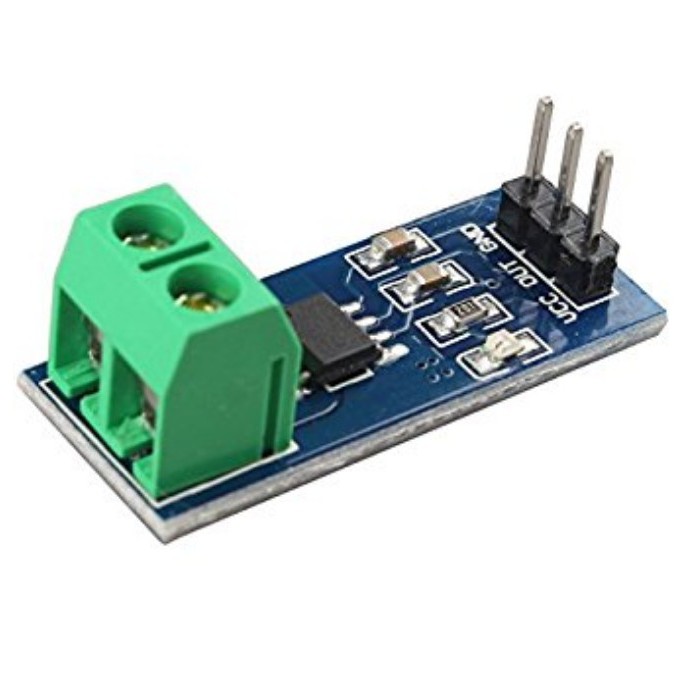

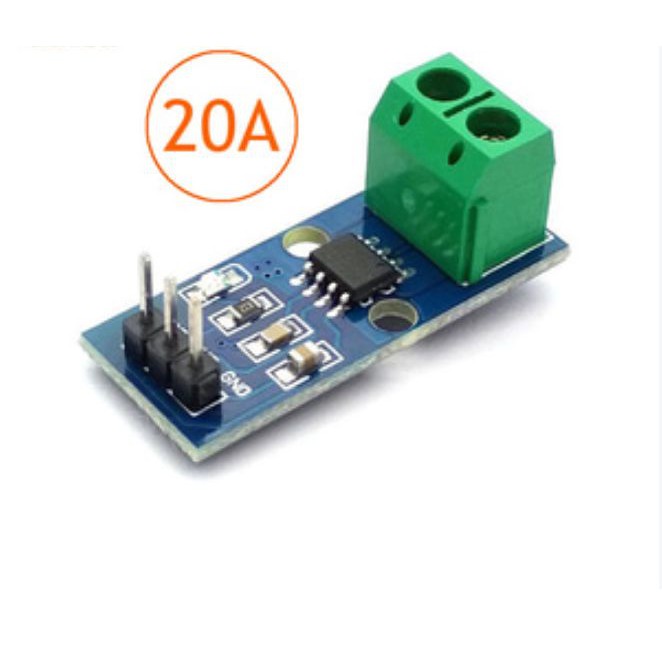

Detail Sensor Arus ACS712 20A Ac Dc Hall Current ACS 712 Module For Arduino
Deskripsi Produk20A
1, current sensor chip: ACS712ELC-20A;
2, pin 5V power supply, on-board power indicator;
3, the module can measure the positive and negative 20 amps, corresponding to the analog output 100mV / A;
4, there is no the detection current through, the output voltage is VCC / 2;
5, PCB board size: 31 (mm) x13 (mm);
Gambar produk
