HDVD 800

D/A amplifier for all common formats up to 24 bit / 192 kHz.


Overview

With Sennheiser’s HDVD 800, sound is perfect. The HDVD 800 is able to connect with digital sources and is equipped with a high-quality Burr-Brown digital/analog converter (DAC) that converts digital audio data into analog signals with a resolution of 24 bits and a sampling rate of up to 192 kHz. This enables the HDVD 800 to transmit the entire frequency spectrum of high-end audio sources without any loss of frequencies.


Features

D/A amplifier for all common formats up to 24 bit / 192 kHz.
D/A amplifier can be used for CD and DVD players.
AES/BU, S/PDIF, USB inputs.
Symmetrical (XLR) and asymmetrical (RCA) analog inputs.
Symmetrical output.
Sockets for four sets of headphones (two of which symmetrical).


Technical Data

Dimensions (W x H x D): approx. 216 mm x 55 mm x 324 mm
Frequency response 0.3 Hz to 100 kHz (-3 dB)
THD, total harmonic distortion < -110 dB (1 kHz / maximum gain)
Weight 2,2 Kg
Audio input
Analogue input XLR-3 : Max. input voltage 20 dBV / Input impedance 10 kOhm
Analogue input RCA: Max. input voltage (eff) 14 dBV / Input impedance 10 kOhm
Digital SPDIF (RCA): Max. sampling frequency 192 kHz /AES3-compatible) / Max. resolution 24 bit
Digital SPDIF (TosLink): Max. sampling frequency: 88,2 kHz (AES3-compatible) Max. resolution: 24 bit
Digital AES/EBU (XLR-3): Max. sampling frequency: 192 kHz (AES3-compatible) / Max. resolution: 24 bit
USB (USB-B) USB standard: USB 2.0 / USB 3.0 USB audio class: USB Audio 2.0
Power consumption 9 W
Input voltage range 100-240 V AC / 50-60 Hz

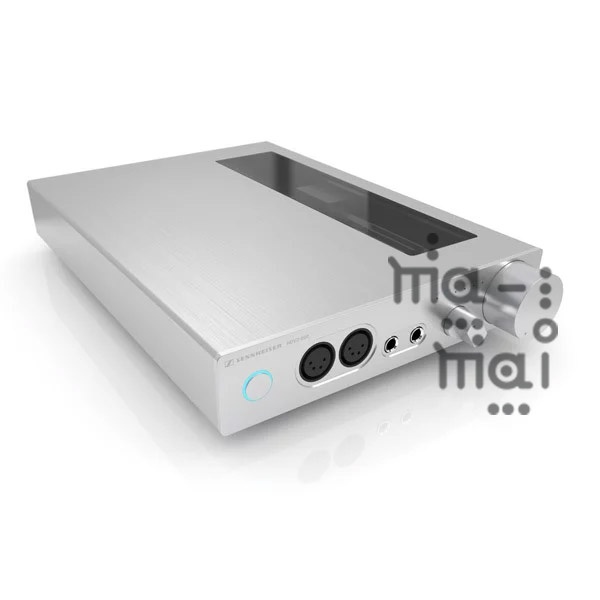

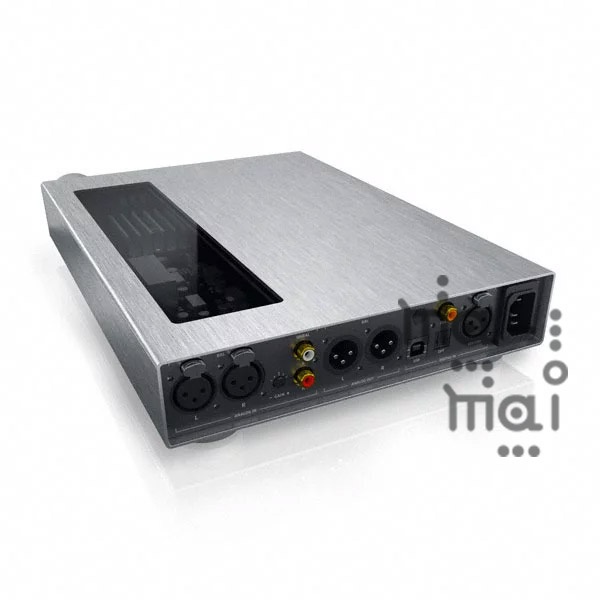

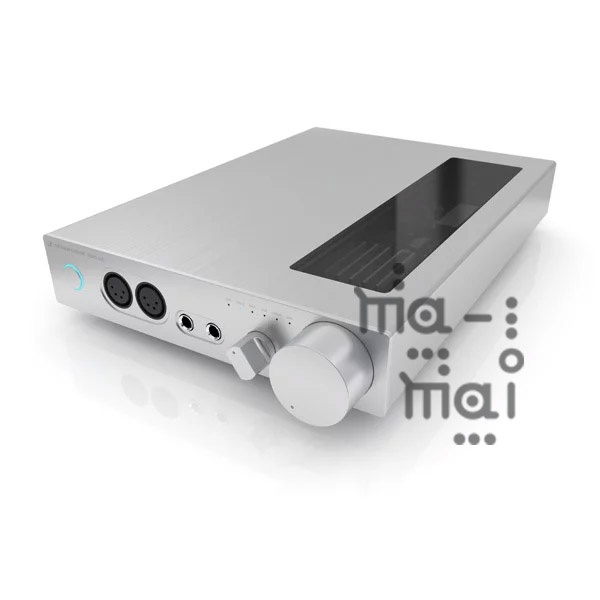

Gambar produk
