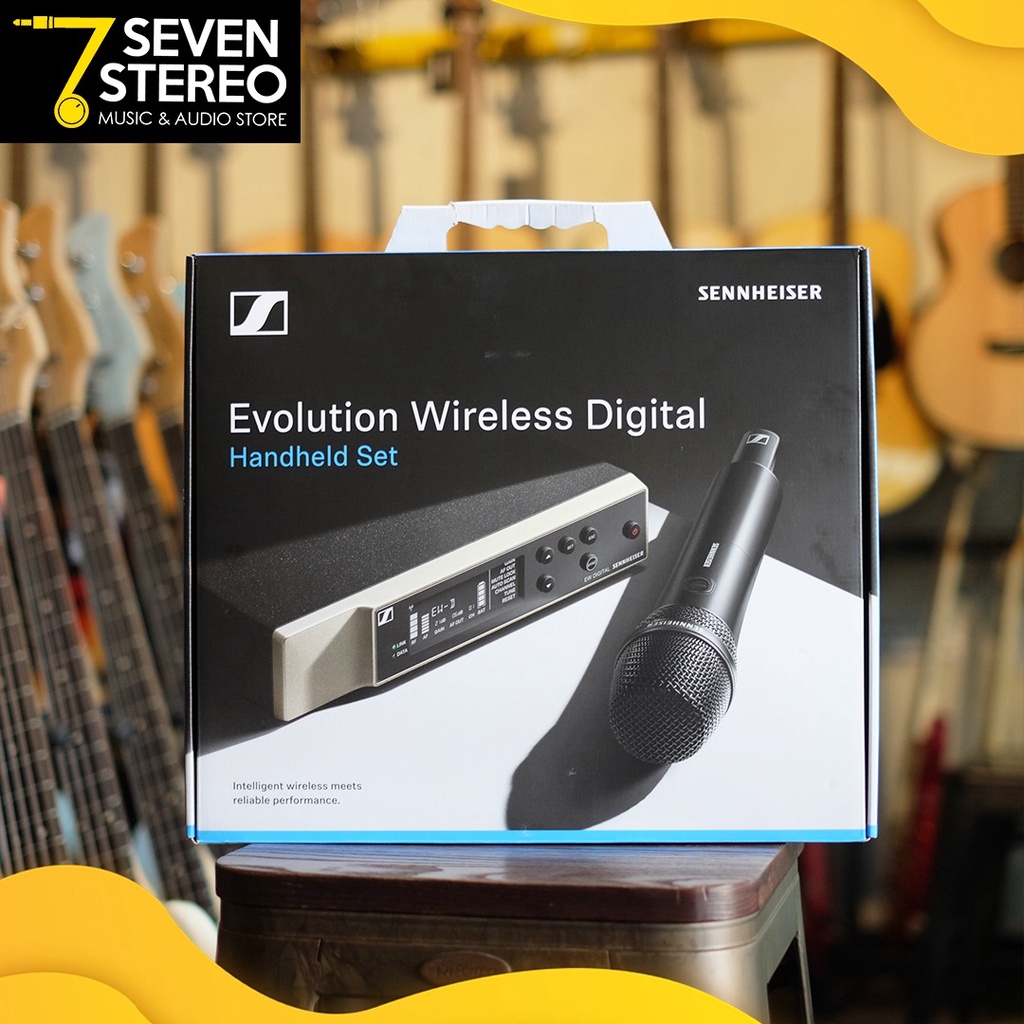

Sennheiser EW-D 835-S SET Wireless Microphone

Detail Sennheiser EW-D 835-S SET Wireless Microphone

Specifications
Frequency range
1785.2 - 1799.8 MHz
823.2 - 831.8 MHz & 863.2 - 864.8 MHz
662 - 693.8 MHz
606.2 - 662 MHz
552 - 607.8 MHz
520 - 576 MHz
470.2 - 526 MHz
925.2 - 937.3 MHz
630 - 662 MHz
THD, total harmonic distortion
-60 dB for 1 kHz @ -3 dBfs input level
Operating temperature
-10 C - +55 C (14 F - 131 F)
Operating relative humidity
5 - 95 % (non-condensing)
Audio frequency response
20 Hz - 20 kHz (-3 dB) @ 3 dBfs
EW-D EM
Dimensions
212 x 44 x 189 mm
Weight
approx. 1000 g (without antennas and power supply)
Current consumption
300 mA
Input voltage range
11 - 13 V
Audio output level
18 dBu max.
Transmission power
BLE: max. 10 mW EIRP
MMD 835
Dimensions
405 x 350 x 73 mm
Sound pressure level (SPL)
154 dB
Transducer principle
dynamic
Weight
3.1 kg
Pick-up pattern
cardioid
Sensitivity
2.1 mV/Pa
EW-D SKM-S
Weight
approx. 304 g (incl. MMD 835 microphone module)
approx. 195 g (without microphone module)
Power supply
2 AA batteries 1.5 V (alkaline manganese)
or BA 70 rechargeable battery pack
Current consumption
< 300 mA
Input voltage range
2.0 - 4.35 V
Transmission power
Audio link: 10 mW
ERP (Range Y1-3): 12 mW ERP
BLE: max. 10 mW EIRP
Dimensions
50 x 268 mm (incl. MMD 835 microphone module)
40 x 200 mm (without microphone module)
What's in the Box
EW-D EM rack receiver
EW-D SKM-S handheld transmitter
MMD 835 microphone module
MZQ 1 microphone clamp
2 rod antennas
power supply with country adapters
rackmount set
4 rubber feet
quick guide
safety guide
manufacturer declaration sheet
