[SEN-9014] 10W SUPER BRIGHT HPL CREE XML XMK T6 LED 6000k-6500K

Detail [SEN-9014] 10W SUPER BRIGHT HPL CREE XML XMK T6 LED 6000k-6500K

HARAP BACA DESKRIPSI


barang yang kami jual sudah melalui QC pabrik untuk jaminan kualitas dan fungsi. tidak ada garansi untuk barang yang kami jual, kecuali kesalahan kirim barang atau kekurangan barang dapat diselesaikan melalui diskusi. membeli berarti setuju dengan ketentuan ini.


DESKRIPSI:
SALE !! 10 WATT SUPER BRIGHT HPL CREE XML XMK LED 6000K-6500K
FORWARD WORKING VOLTAGE : 3,0 - 3,3V ( TESTED )
FORWARD WORKING CURRENT : 1500-3000mA ( TESTED )
INCLUDED HEATSINK 16mm ( DISCOUNTINOUSE )
NEW GENERATION HEATSINK 19mm ( expand thickness to 1,5mm )
VIEW ANGEL : 120 degree
ILUMINOUSE : 550-980LM

HPL CREE 5 WATT XML LED 6000-6500K
FORWARD WORKING VOLTAGE : 3,0 - 3,15V ( TESTED )
FORWARD WORKING CURRENT :900mA - 1550mA ( TESTED )
INCLUDED HEATSINK 16mm ( Dis continoue )
NEXT GENERATION HEATSINK 19mm ( expand thickness to 1,5mm )
VIEW ANGEL : 120 degree
ILUMINOUSE :330-520LM

NOTICE :
Note: FOR LONG TIME OPERATION ( > 8 HOUR / DAY )
ADEQUATE HEATSINK NEEDED
LED CHIP INSIDE OPERATION TEMPERATURE : UP TO 75 DEGREE CELCIUM.
( MAX LED CHIP OPERATION TEMPERATUE 85 DEGREE CELCIUM )
LED BODY MAX OPERATING TEMPERATURE UP TO 65 DEGREE CELCIUM.
HEATSINK TEMPERATURE SHOULD BE LESS THAN 55 DEGREE CERCIUM.

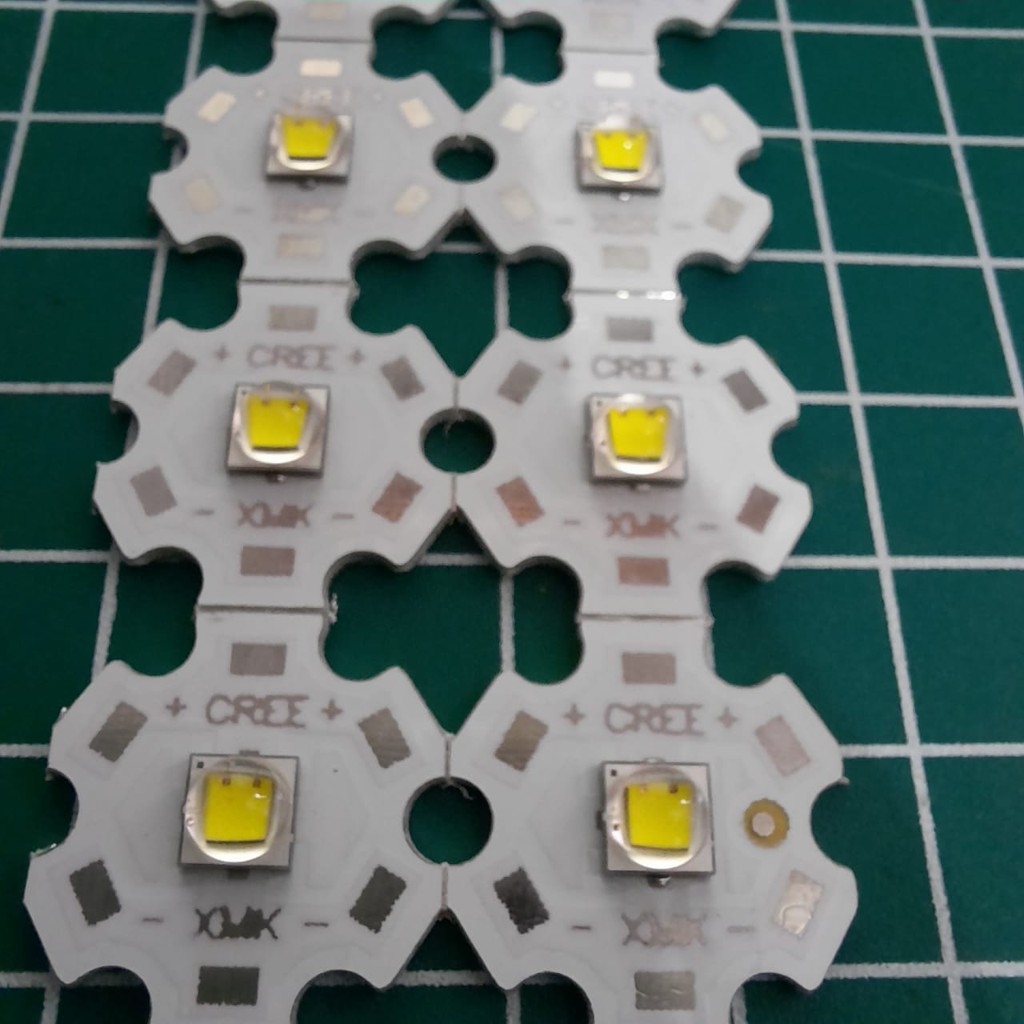

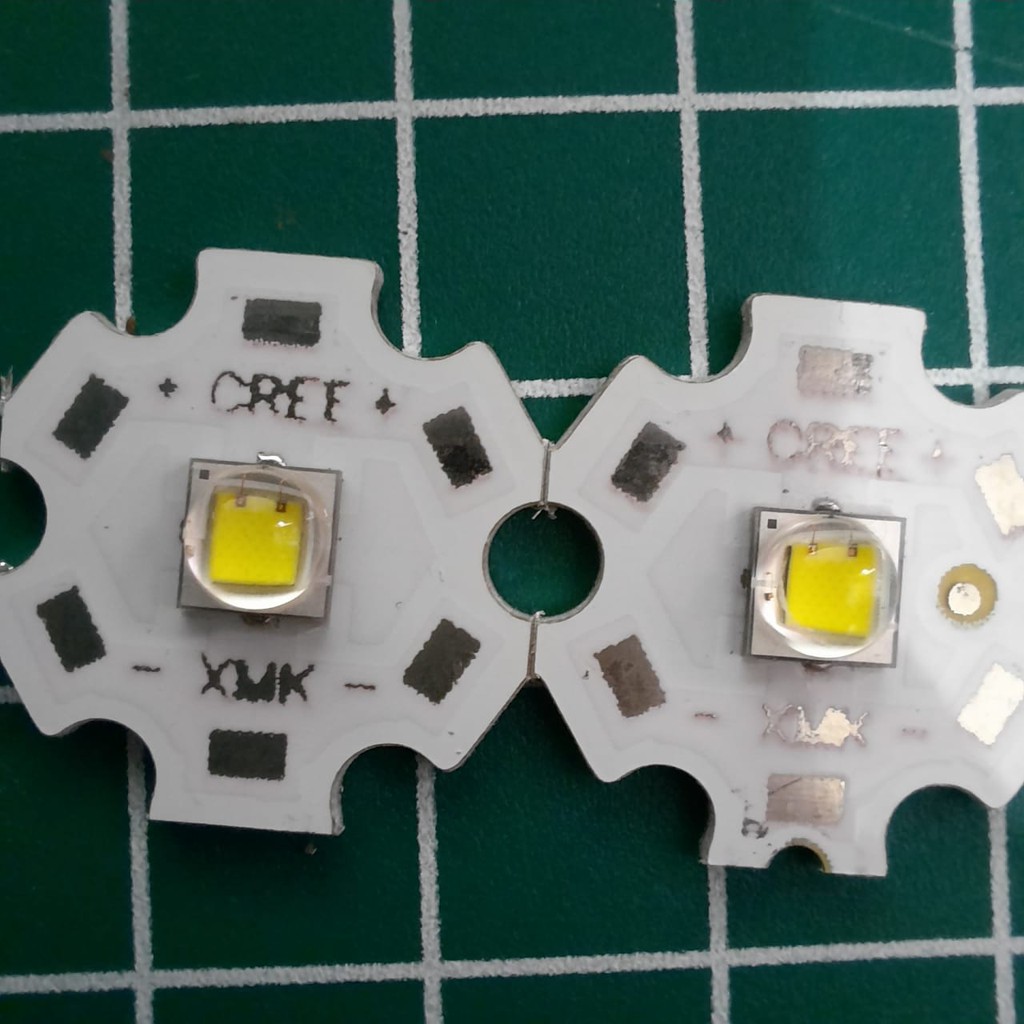

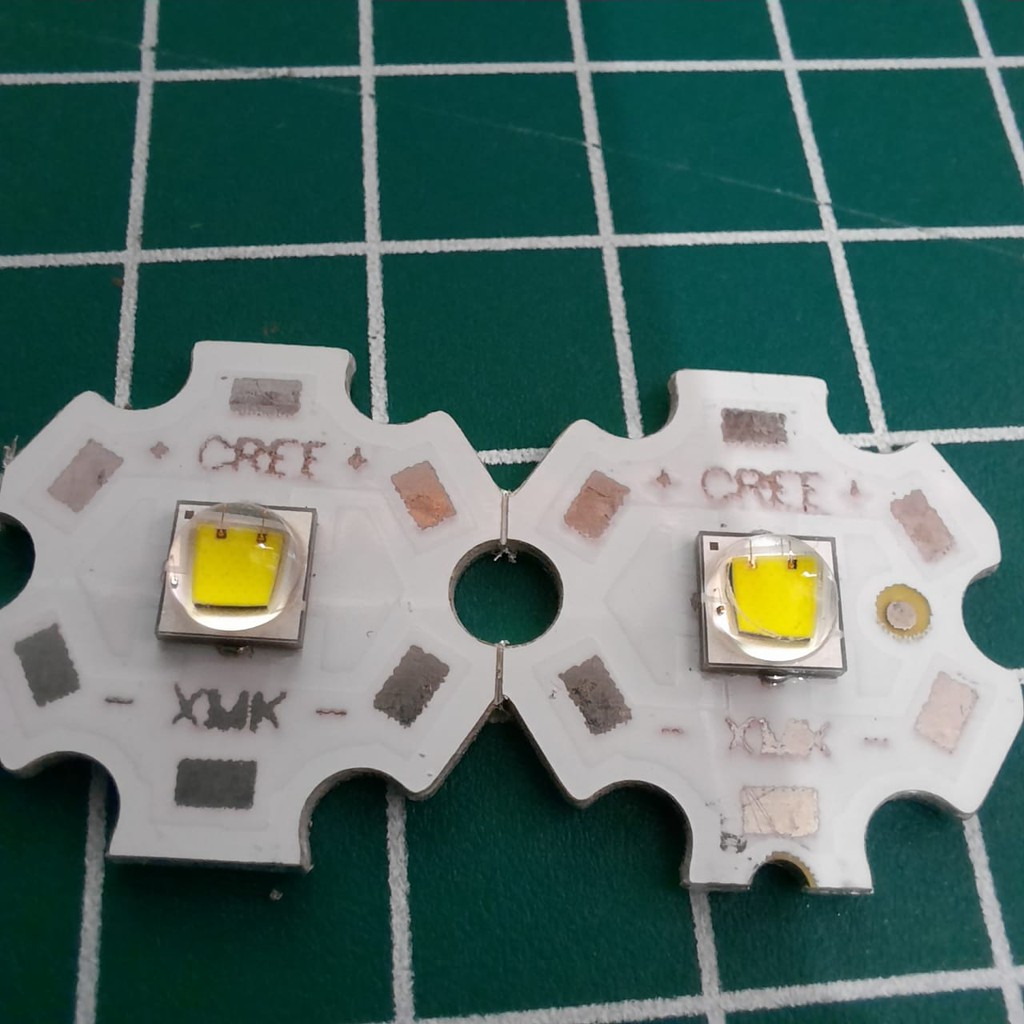

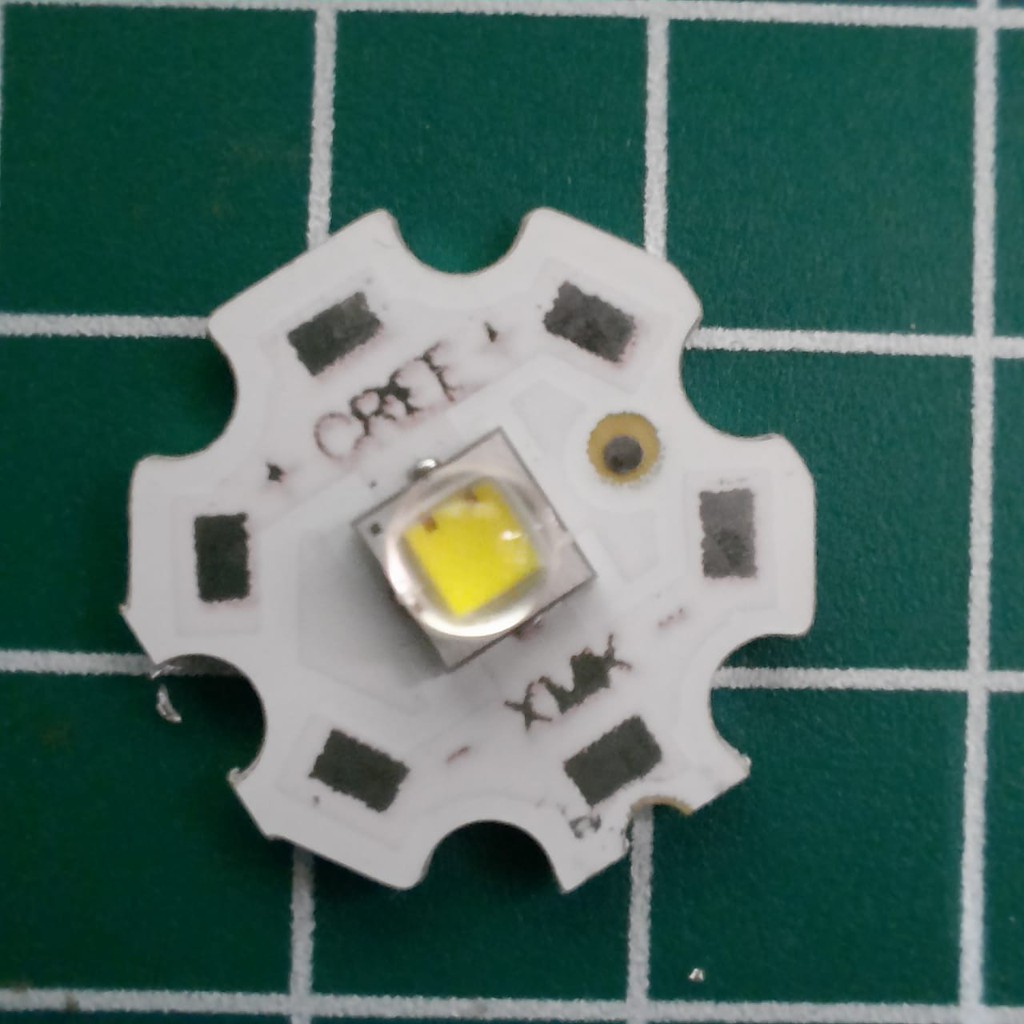

Gambar produk
