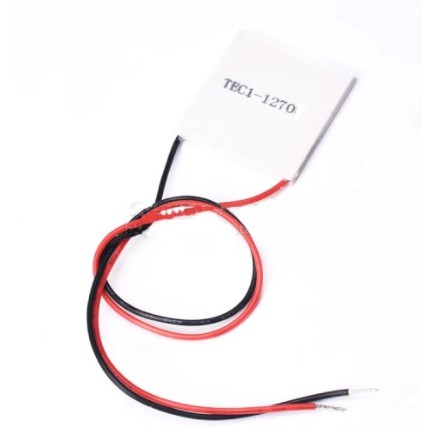

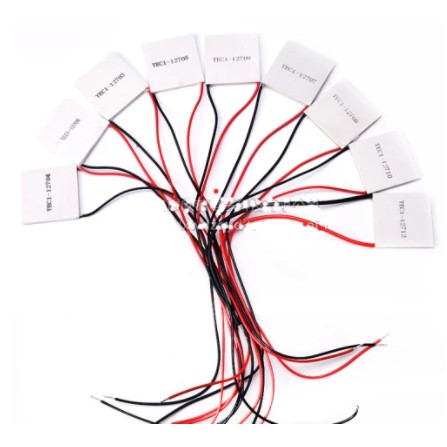

Semiconductor refrigeration( 40x40) 12708 12709 12710 (1533)

Detail Semiconductor refrigeration( 40x40) 12708 12709 12710 (1533)

Semiconductor refrigeration( 40x40) 12708 12709 12710 (1532)

Ada 3 type sbb :

*** Type 12708

Model: TEC1-12708
Dimensions: 40x40x3.5mm Component log 127
Wire size: lead length 300±8mm RV standard wire single head 5mm tinned
Internal resistance: 1.51.8Ω ambient temperature 23±1°C, 1kHZ Ac test
Maximum temperature difference: ΔTmax Qc = 0 67 ° C or more.
Working current: Imax=8 when rated voltage starts
Rated voltage: DC12V Vmax: 15.5V
Cooling power: Qcmax 77W
Assembly pressure: 85N/cm2
Working environment: Temperature range -55 °C 83 °C excessive ambient temperature will directly affect cooling efficiency
Pack process: four weeks standard 704 e rubber seal
Packing standard: foam box pack, storage conditions, ambient temperature -10 ° C 40 ° C
Storage conditions: -40 60°C

*** Type 12709

Model: TEC1-12709
Dimensions: 40x40x3.5mm Component log 127
Wire size: lead length 300±8mm RV standard wire single head 5mm tinned
Internal resistance: 1.51.8Ω ambient temperature 23±1°C, 1kHZ Ac test
Maximum temperature difference: ΔTmax Qc = 0 67 ° C or more.
Working current: Imax=9A when rated voltage starts
Rated voltage: DC12V Vmax: 15.5V
Cooling power: Qcmax 85 W
Assembly pressure: 85N/cm2
Working environment: Temperature range -55 °C 83 °C excessive ambient temperature will directly affect cooling efficiency
Pack process: four weeks standard 704 e rubber seal
Packing standard: foam box pack, storage conditions, ambient temperature -10 ° C 40 ° C
Storage conditions: -40 60°C

*** Type 12710

Model film: TEC1-12710
Dimensi: 40 * 40 * 3.5mm
Hambatan internal: 1.2 ~ 1.5 (suhu sekitar 23 1 C, 1kHZ Ac test)
Perbedaan suhu maksimum: Tmax (Qc = 0) 60 C atau lebih.
Bekerja saat ini: Imax = 10A (ketika tegangan 15Vmax dimulai)
Tegangan terukur: DC12V ( V max: 15.5V)
Daya pendinginan: Qcmax 92W
Tekanan perakitan: 85N / cm2
Lingkungan kerja: Kisaran suhu -55 C ~ 83 C (suhu lingkungan yang berlebihan akan secara langsung mempengaruhi efisiensi pendinginan)

Gambar produk
