Semiconductor refrigeration( 40x40) 12703 12705 12707 (1532)

Detail Semiconductor refrigeration( 40x40) 12703 12705 12707 (1532)

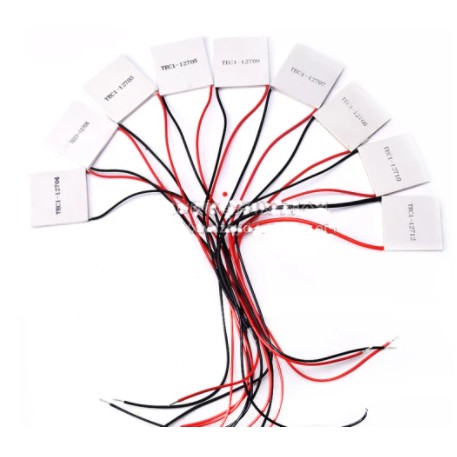

Semiconductor refrigeration sheet 12703 12705 12707 12708 (1528)

Terdiri dari 4 type sbb :

*** Type 12703 (40x40)

Model: TEC1-12703
Dimensions: 40x40x 3.6mm ±0.1
Component Logarithm 127
Wire size: lead length 310mm ± 5mm RV standard wire single head 5mm tinned
Internal resistance: 4.04.3Ω ambient temperature 23±1°C, 1kHZ Ac test
Maximum temperature difference: ΔTmax Qc = 0 60 ° C or more.
Working current: Imax=12 when rated voltage starts
Rated voltage: DC12V Vmax: 15.5V
Cooling power: Qcmax 27W
Assembly pressure: 85N/cm2
Working environment: Temperature range -55 °C 83 °C excessive ambient temperature drop directly affects cooling efficiency
Pack process: four weeks standard 704 e rubber seal
Packing standard: foam box pack, storage conditions, ambient temperature -10 ° C 40 ° C
Storage conditions: -4060°C

*** Type 12705 (40x40)

Model: TEC1-12705
Dimensions: 40 x40 x3.6mm,
Component :Logarithm of 127
Wire Size:Lead Length 100 ± 5mm,RV standard wire,Single head 5mm Tin Plated
Internal resistance: 2.4 2.7Ω ambient temperature 23 ± 1 ℃, 1kHZ Ac test
Maximum temperature: △ Tmax Qc = 0 :60 ℃
Operating current: Imax = 12 rated voltage startup
Rated voltage: DC12V Vmax: 15.5V
Cooling power: Qcmax 30W
Assembly Pressure: 85N/cm2
Working environment: Temperature range -55 ℃ 83 ℃
high ambient temperature will directly affect the cooling efficiency
Storage conditions: -40 60 ℃
Encapsulation Process:Standard 704 Silastic Seal

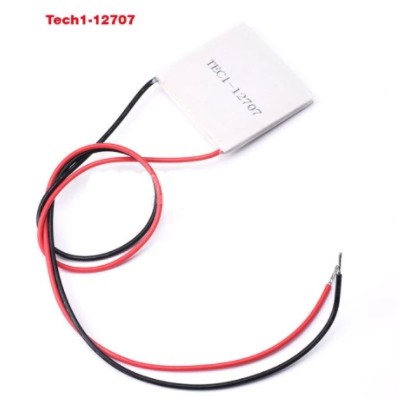

***12707 (40x40)

Model: TEC1-12707

Dimensions: 40 x40x 3.6mm,
Component :Logarithm of 127
Wire Size:Lead Length 100 ± 5mm,RV standard wire,Single head 5mm Tin Plated
Internal resistance: 2.4 2.7Ω ambient temperature 23 ± 1 ℃, 1kHZ Ac test
Maximum temperature humidity : △ Tmax Qc = 0 :60 ℃
Working current Imax : 7A
Rated voltage: DC12V Vmax: 15.5V
Cooling power: Qcmax 67 W
Assembly Pressure: 85N/cm2
Working environment: Temperature range -55 ℃ 83 ℃
high ambient temperature will directly affect the cooling efficiency

Gambar produk
