Ada 2 type sbb :

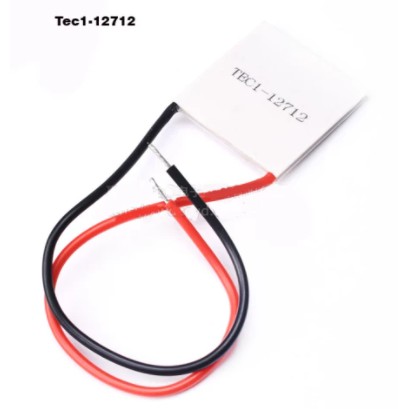

**** Type 12712

model: TEC1-12712

Dimensions: 40x40x3.3mm component logarithm 127 pairs
Wire size: lead length 200±8mm RV standard wire single head 5mm tinned
Internal resistance: 1.01.1Ω ambient temperature 23±1°C, 1kHZ Ac test
Maximum temperature difference: above 62 °C
Working current: Imax=9.5A 12A for maximum voltage 15.5V startup
Rated voltage: DC12V maximum voltage: 15.7V
Cooling power: 114W the cooling surface temperature is too high will reduce the cooling power
Assembly pressure: 85N/cm2
Working environment: Temperature range -55 °C 83 °C excessive ambient temperature will directly affect cooling efficiency
Pack process: four weeks standard 704 e rubber seal
Packing standard: foam box pack, storage conditions, ambient temperature -10 ° C 40 ° C
Storage conditions: -40 60°C

*** Type 19906

Features:Model: TEC1-19906
Dimensions : 40x40 x4.2 mm
Rated voltage: DC24v
Maximum current: 6A
Cold production: 86.4W
Maximum temperature : 200 celcius
Working temperature range : -55 sd 83C
Max temperature difference : above 63 c

Working characteristics: cooling on having word side and heating on the other.Positive and negative: red line is positive, black line is negative

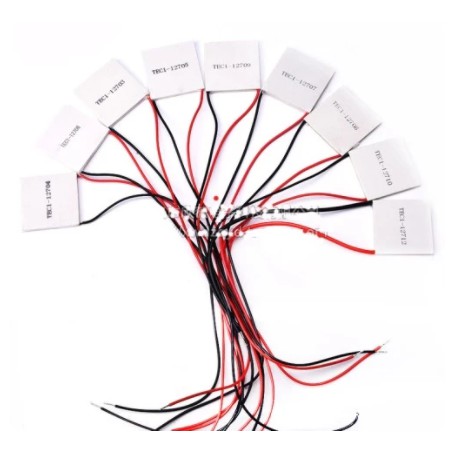

Gambar produk
