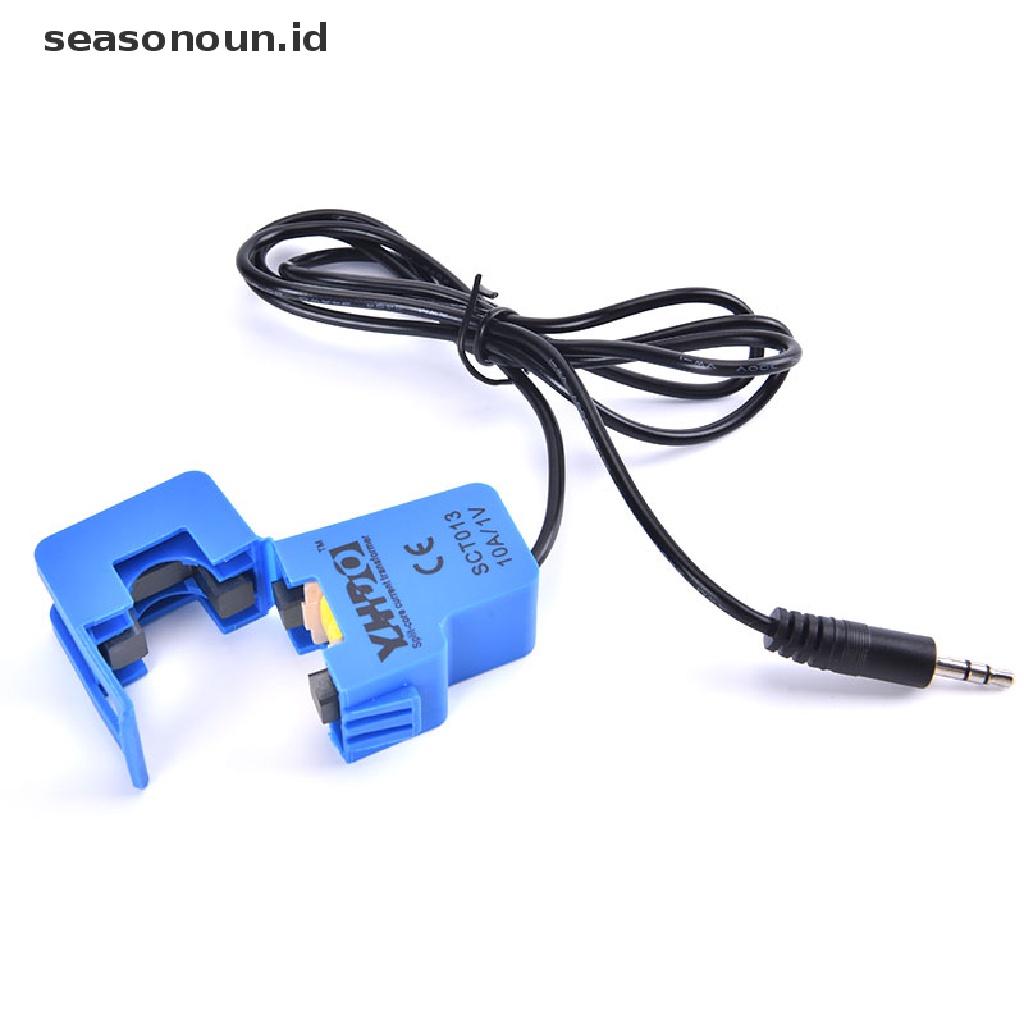

Detail 【seasonoun】 SCT-013 Open-Close Current Transformer 10-100A Non-invasive AC Current Sensor .

Features:
Model : SCT-013-000
Opening size:13mmx13mm
Non-linearity 3%(10%-120% rated input current)
1.5m leading wire,Φ3.5 3 core plug standard output.
Two form of output current, voltage (voltage output built-in the sampling resistor).


Specification：
100% new and high quality
Material: ABS
Mechanical strength: opening and closing times, no less than 1000 times (20 C)
Safety indicators: Dielectric strength 6000V AC/1min
Meet UL94-V0 flame retardant properties
Operating Temperature: -25 C ~ +70 C
N1:10A/1V/1%
N2: 20A/1V/1%
N3: 30A/1V/1%
N4: 50A/1V/1%
N5: 60A/1V/1%
N6: 100A/1V/1%
N7: 100A/50MA/1%


Package include :
1 pcs AC Current Sensor


Note:
Please be aware that due to your computer monitor display the color may have some difference between the picture and the real item.
There is 2-3% difference according to manual measurement.
