(seasonoun) Papan Sirkuit PCM Charger Baterai 25A 12V BMS Dengan Balan

Detail (seasonoun) Papan Sirkuit PCM Charger Baterai 25A 12V BMS Dengan Balan

Features:
1) high-accuracy voltage detection circuit;
2) terminal of the charger using high voltage device;
3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit);
4) MOS transistor can control the battery charge and discharge;
5) low standby current consumption.



Description:
100% brand new and high quality
Over Charge voltage:4.25-4.35v±0.05v
Over Discharge voltage: 2.3-3.0v±0.05v
Max Working current:25A
Max peak current:35-40A
Working temperature:-40---+50
Storage Temperature:-40-- +80
Small current:50uA
Life cycle:more then 30000 hours
Resistance:Less than 100mΩ
Short Cut:Protectable,Charge can repair
Size:56*45*4.0mm


Package include:

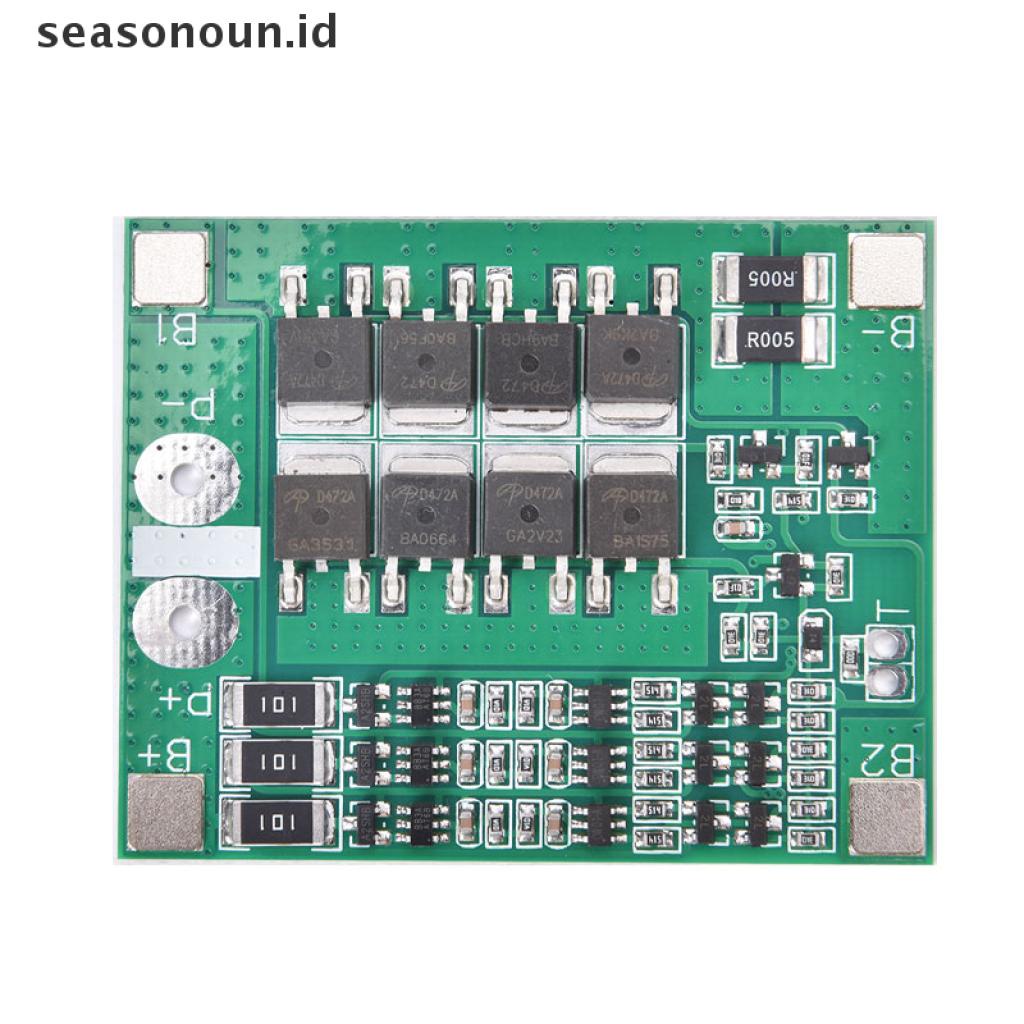

1 pcs battery protection board



Notes:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3cm measuring deviation due to manual mearement.

Gambar produk
