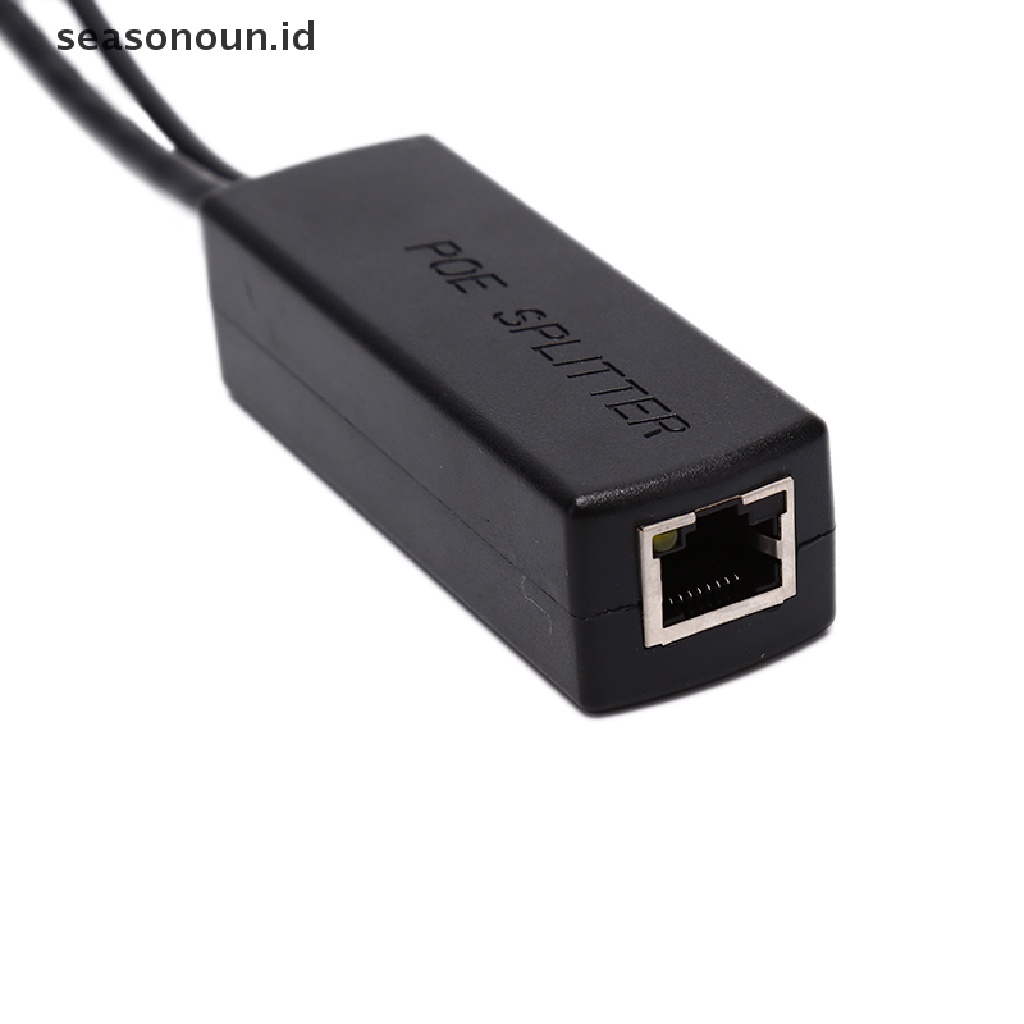

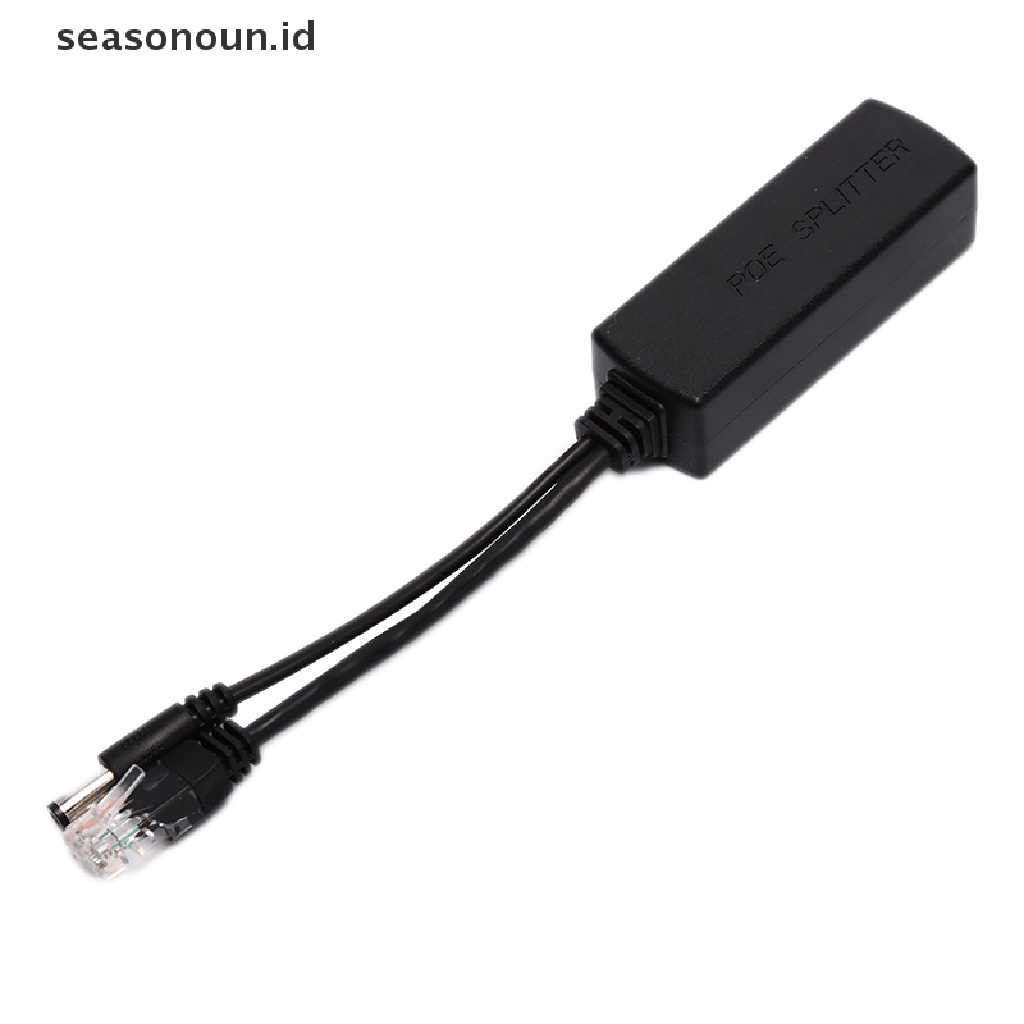

Detail (seasonoun) Gigabit Splitter Power Over Ethernet 48V Ke 12V 1A-2A 10 / 100 / 1000Mbps
Description
RJ45 female INPUT Port:
Support the IEEE 802.3af/802.3AT the Power over Ethernet PoE Switch
Support 48V-12V Unsolicited Power Over Ethernet PoE Switch
Support 48V-12V Unsolicited Power Over Ethernet PoE Adapter
Specification:
Compliant with IEEE802.3af 14W
Isolation: 1.5kV
Power Input: DC38~57V
Power Output: DC12V 1A~2A(Rated 1.3A, max. 2A)
Data&Power INPUT Port: from RJ45 female
Data Output Port: RJ45 Male
Power Output Port: 5.5x2.1mm DC Power Plug
Data Transfer Rate: 10/100Mbps
Devices will be detected before poe input
Power Pin:support both 1/2(+),3/6(-) or 4/5(+),7/8(-)
Body size: 83 x 29x 23 mm
DC cable length:135mm
RJ45 Modular Plug cable length:155mm
Weight : 48g
DC Out Power Pin: inside positive (+) outside negative (-)
Operation Temperatue:-20℃ ~ 45℃
Storage Temperature:-30℃ ~ 70℃
Item Included:
Ethernet Gigabit Active PoE Splitter x1
