SCYTHE MUGEN 5 Rev.B CPU AIR Cooler INTEL READY AMD AM4

Detail SCYTHE MUGEN 5 Rev.B CPU AIR Cooler INTEL READY AMD AM4

Deskripsi SCYTHE MUGEN 5 Rev.B CPU AIR Cooler INTEL READY AMD AM4
Model name:
Mugen 5 Rev.B CPU cooler
Model number: SCMG-5100
EAN : 4571225056357

Compatibility:
Intel®:
Base LGA775
Base LGA1150
Base LGA1151
Base LGA1155
Base LGA1156
Base LGA1200
Base LGA1366
Base LGA2011 / 2011-v3 ( Square ILM )
Base LGA2066

AMD®:
socket AM2
socket AM2 +
socket AM3
socket AM3 +
socket AM4
socket FM1
socket FM2
socket FM2 +


Please note that a screwed original backplate of the mainboard is required for mounting on mainboards with AMD® base . Before buying, please check whether it is screwed ( example )! If this means plastic pins to be attached, one is mounting this cooler not possible .

If you have the predecessor model, you can order an AM4 conversion kit from Scythe Service by presenting proof of purchase of the cooler and an AM4 mainboard or a Ryzen ™ CPU . The HPMS II AM4 conversion kit will be sent to you free of charge after completing this simple process.

Overall dimensions W: 130 x 154.5 x 110 mm (including fan - other dimensions )
Total weight: 890 g
Accessories: Mounting material for Intel & AMD sockets, fans, thermal paste, fan terminals, installation instructions.
Base plate / heat pipe material: Nickel-plated copper ( more info )

Fan specifications
Model name: Kaze Flex 120 PWM
Fan dimensions: 120 x 120 x 27 mm
Noise level: 4 ~ 24.9 dBA
Air flow: 16.6 ~ 51.17 CFM / 28.2 ~ 86.93m³ / h
Fan speed: 300 (± 200 rpm) ~ 1,200 rpm (± 10%) (PWM controlled)
Static pressure: 0.75 ~ 10.3 Pa / 0.076 ~ 1.05 mmH²O
Bearing type: Sealed Precision FDB
Voltage: 12V
MTTF: 120,000 hours at 25 ° C

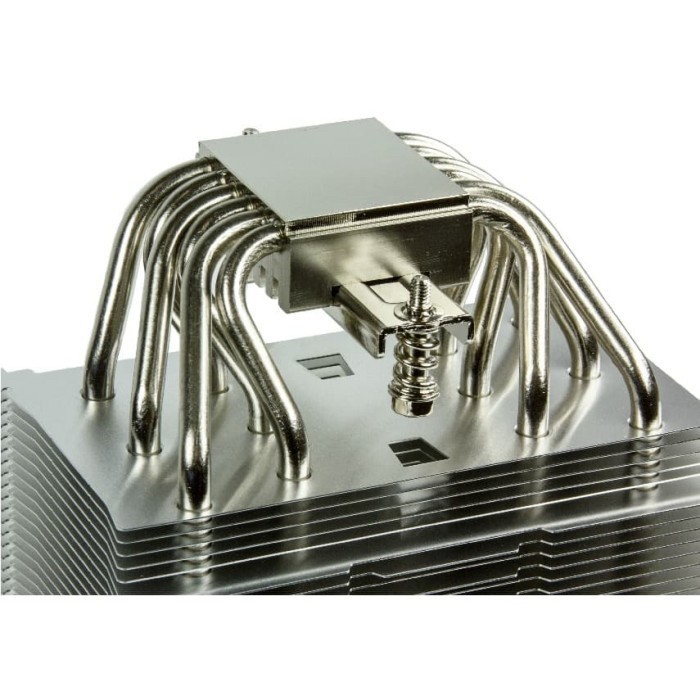

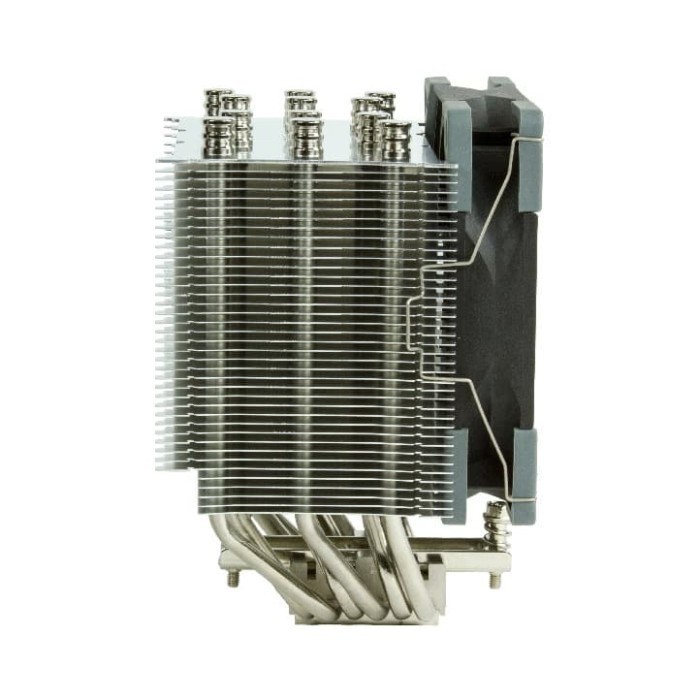

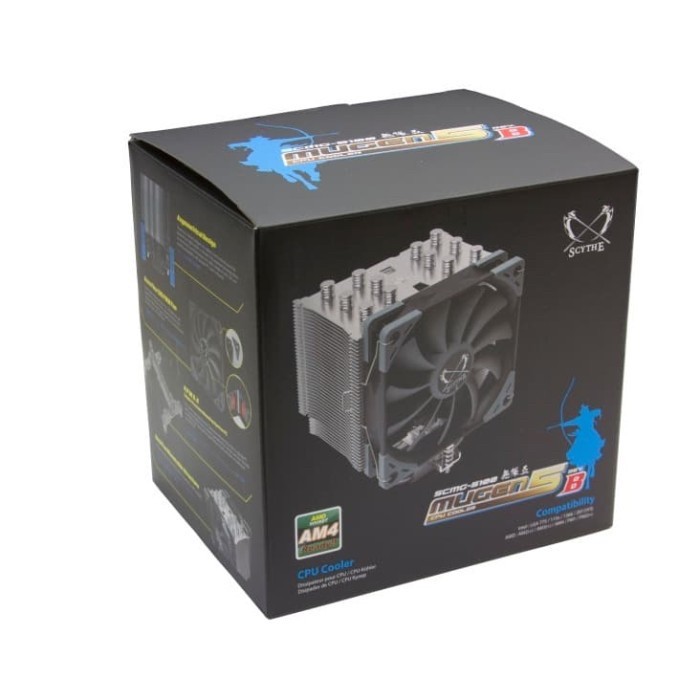

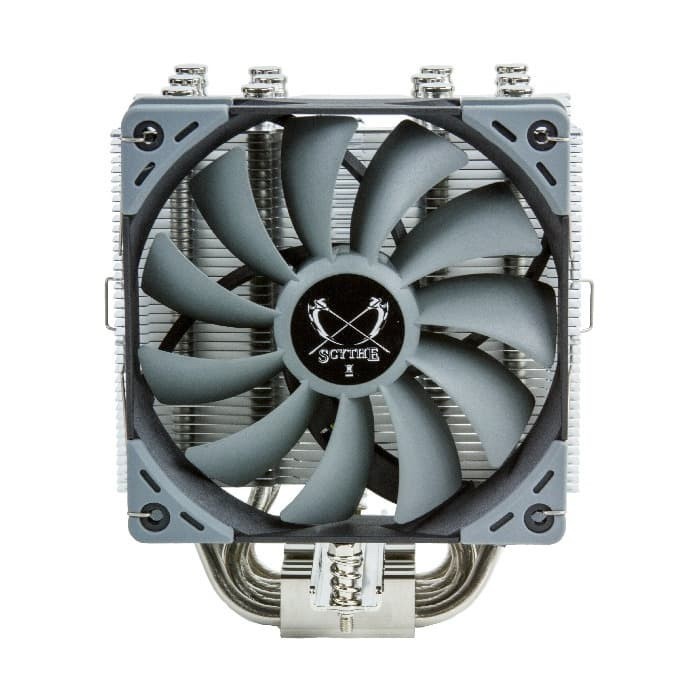

Gambar produk
