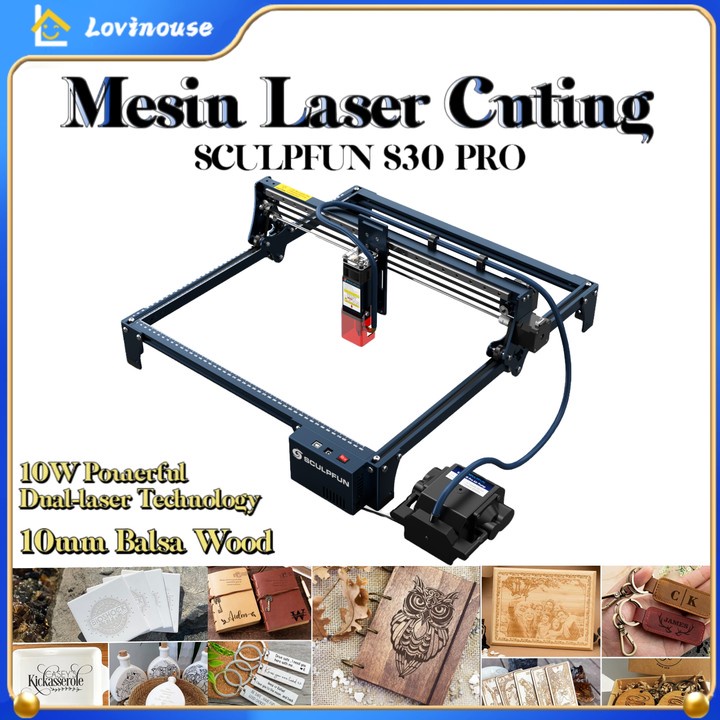

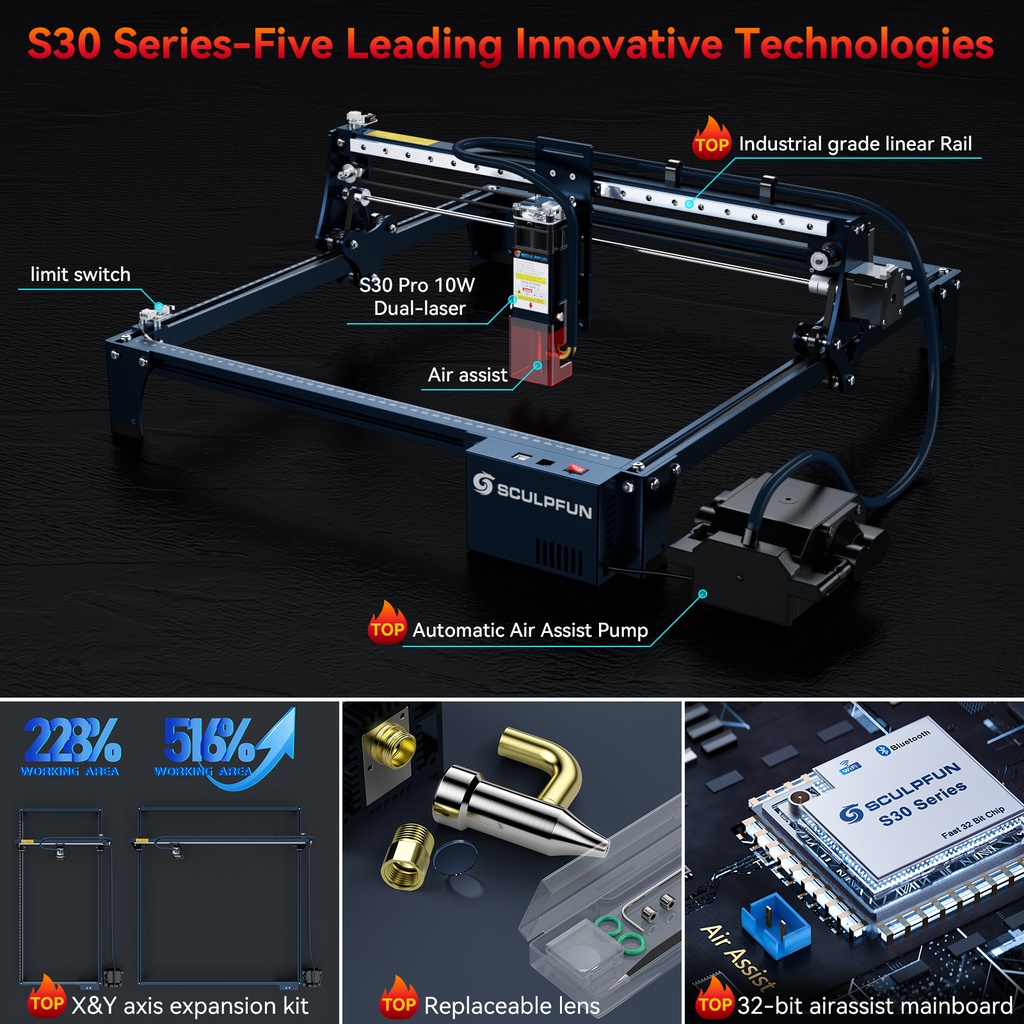

SCULPFUN S30 Pro Mesin laser cuting automatic air-assist pembentukan sinar laser ultra-tipis Expandable to 410*400mm engraving area Replaceable lens design

Merek: Sculpfun | Lihat selengkapnya produk Perlengkapan Rumah dari Sculpfun
Perlengkapan Rumah > Perkakas > Gergaji, Mesin Pemotong, & Gerinda > SCULPFUN S30 Pro Mesin laser cuting automatic air-assist pembentukan sinar laser ultra-tipis Expandable to 410*400mm engraving area Replaceable lens design
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:LovinouseLihat semua produk Perlengkapan Rumah oleh Lovinouse
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail SCULPFUN S30 Pro Mesin laser cuting automatic air-assist pembentukan sinar laser ultra-tipis Expandable to 410*400mm engraving area Replaceable lens design


Video perkenalan produk SCULPFUN S30 Pro Mesin laser cuting automatic air-assist pembentukan sinar laser ultra-tipis Expandable to 410*400mm engraving area Replaceable lens design. Sumber: Shopee.

Specification:
Model: SCULPFUN S30 PRO
Power Input: 100-240V AC, 50/60HZ Output: 12V 5A
Engraving accuracy: 0.005mm

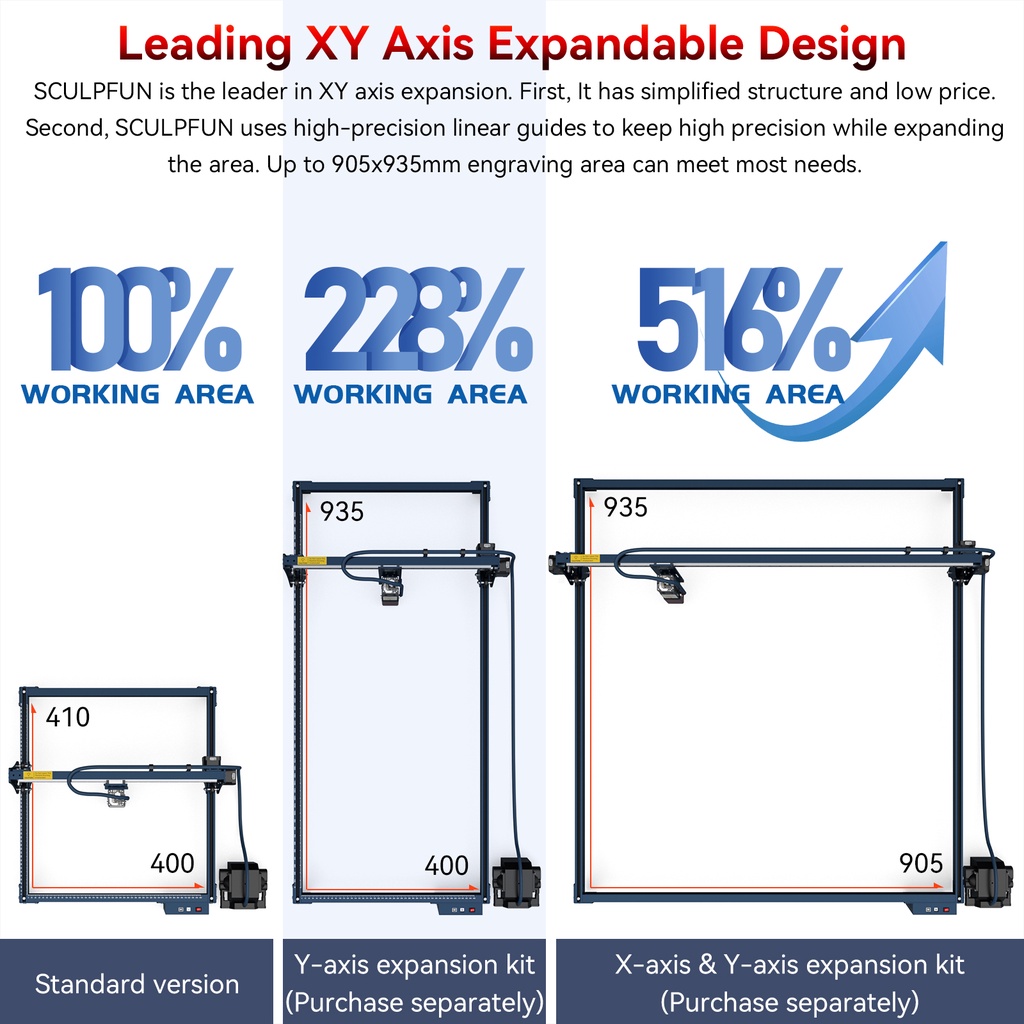

Engraving area size: 410*400mm
Machine power: about 84W

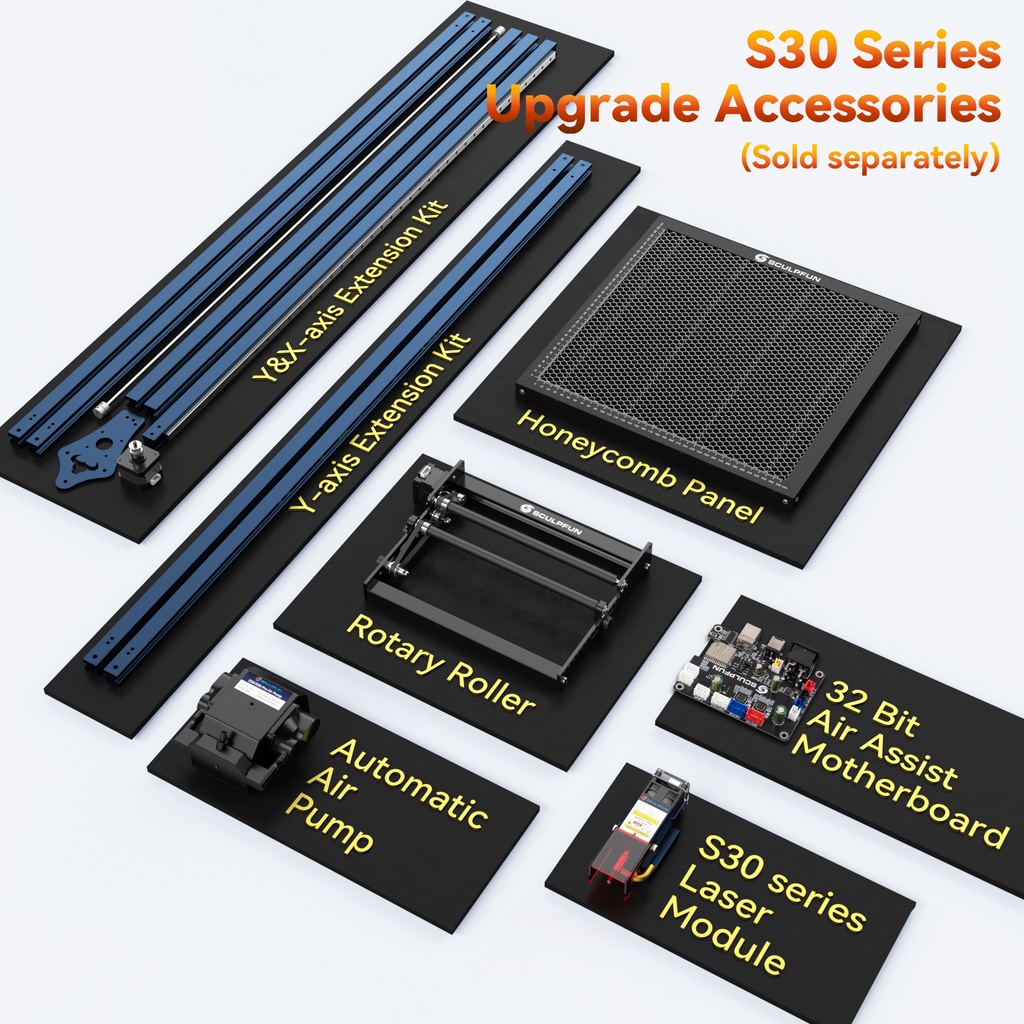

Motherboard: 32-bit air-assisted motherboard, reserve Bluetooth, SD card offline printing function. (Upgrade Kit sold separately)

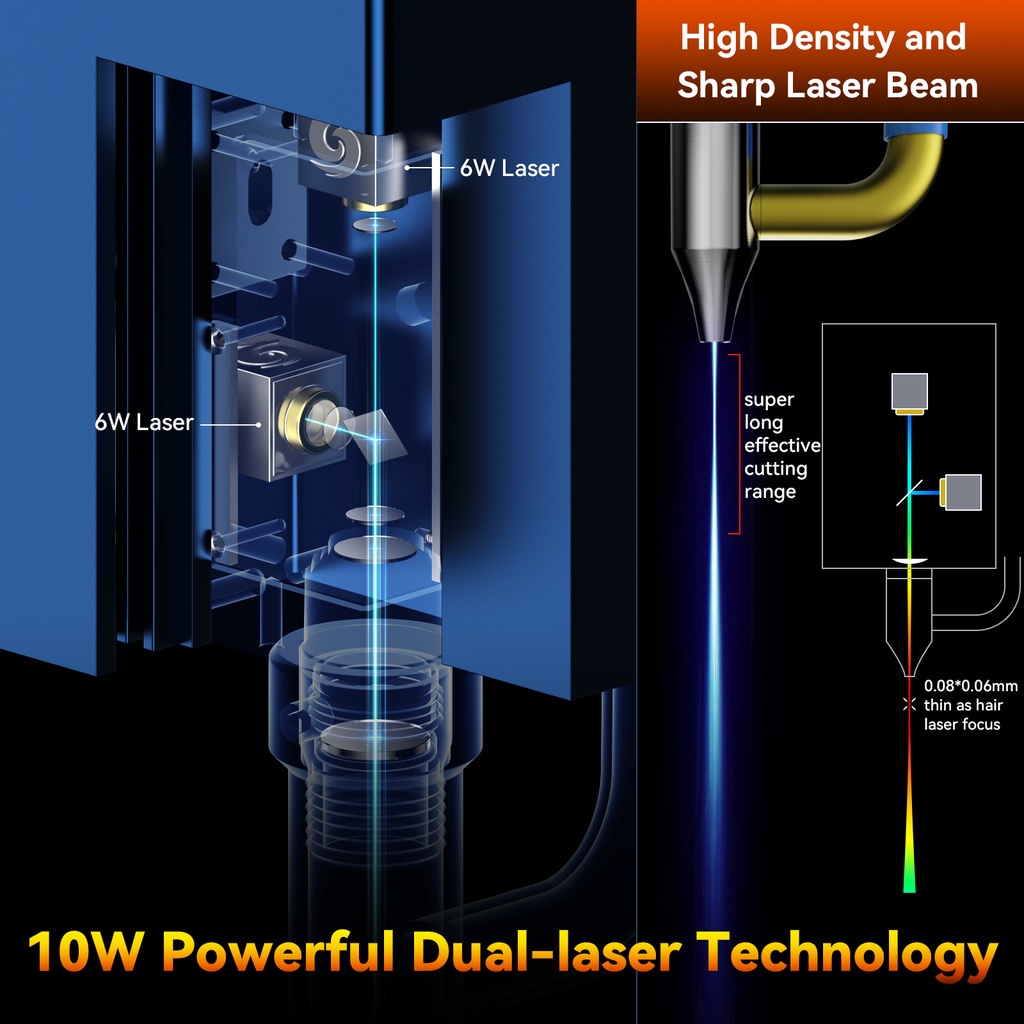

Diode laser output power: 10W (note that this is light energy not electrical energy)
Laser focus: 0.06x0.08mm
Laser wavelength 455±5nm
Focusing method: fixed focus column + sliding device
Laser protection cover: Equipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or remove the goggles.

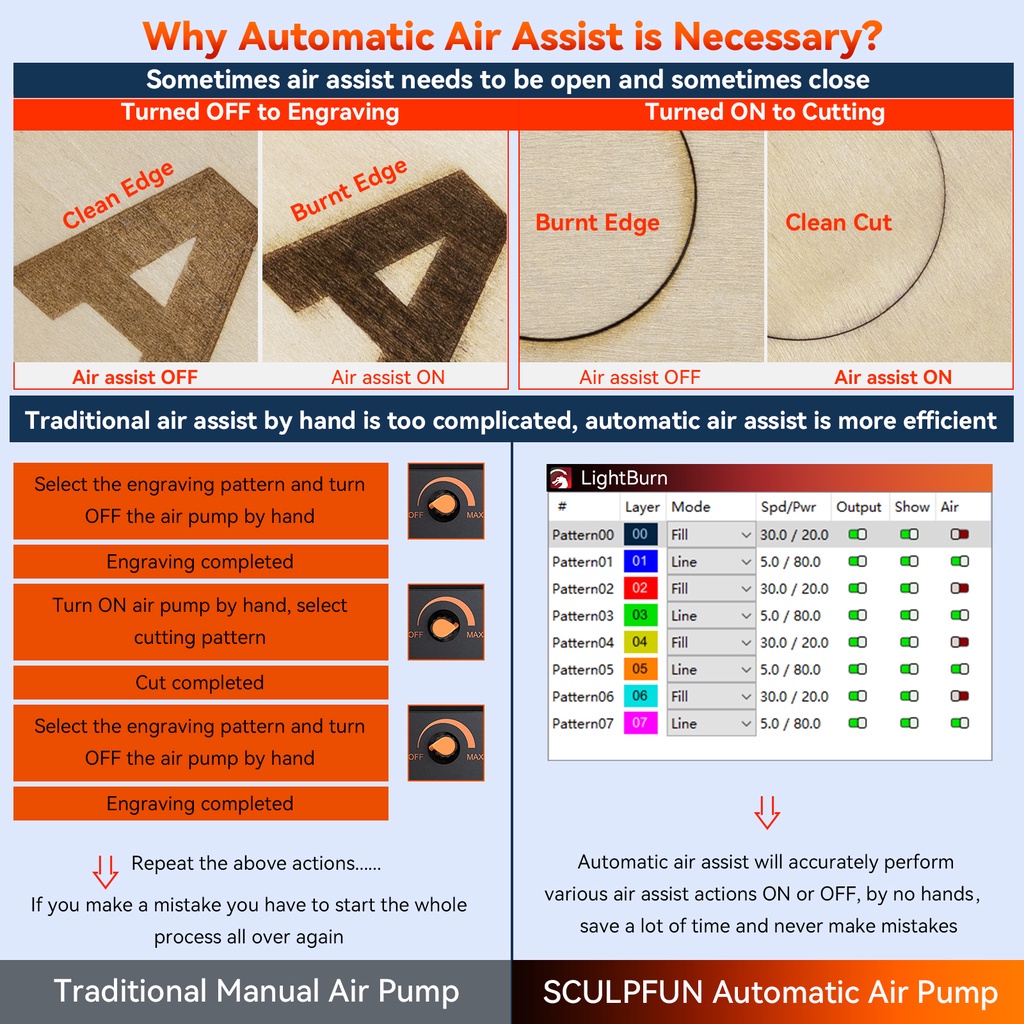

Air pump:
Type: mainboard-controlled air pump, voltage 12V, flow 30L/min
Air hose inner diameter: 7.5mm

Engraving material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, zigzag, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stone
Cutting material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic board, cardboard, non-woven, bamboo, leather, some plastic boards, PCB boards
Operating software: LightBurn (with air assist function M8), LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.
Data transmission method: USB connection or BT wireless connection

Package Size: 62.3x24x22.5cm/24.5x9.4x8.8in
Package Weight: 6.85kg/15.1lb

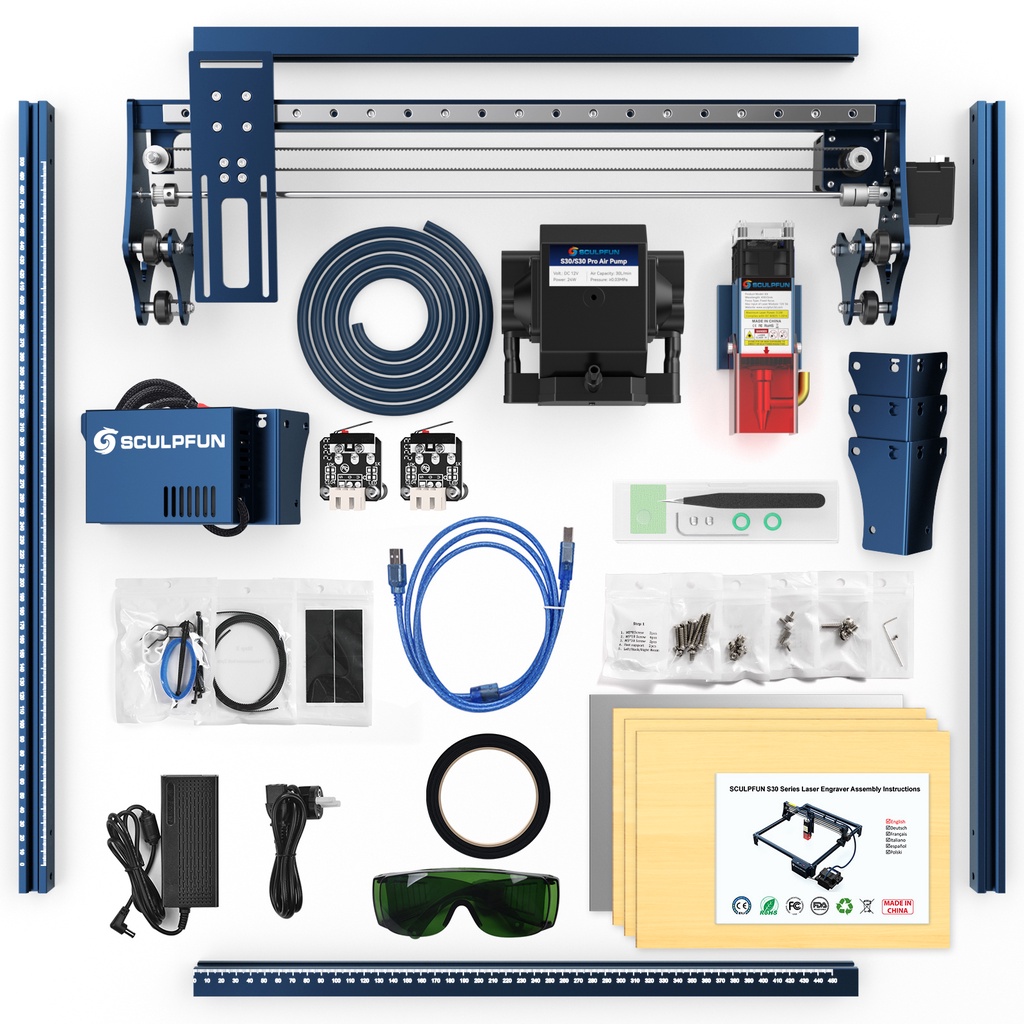

Packing List:
1 x S30 PRO laser
1 x Laser Repair Kit
1 x 12V automatic air pump
3 x A4 size 3mm wooden board
2 x Limit Switch
1 x 12V 5A power adapter
1 x power cord
1 x USB cable
1 x Air tube
1 x Installation tool Kit
1 x Laser Goggles
1 x A4 metal backing plate

Step 1-6 Install the package
1 x Manual
1 x X-axis assembly
2 x X profiles
2 x Y profiles
1 x Control Box Assembly
3 x support feet
