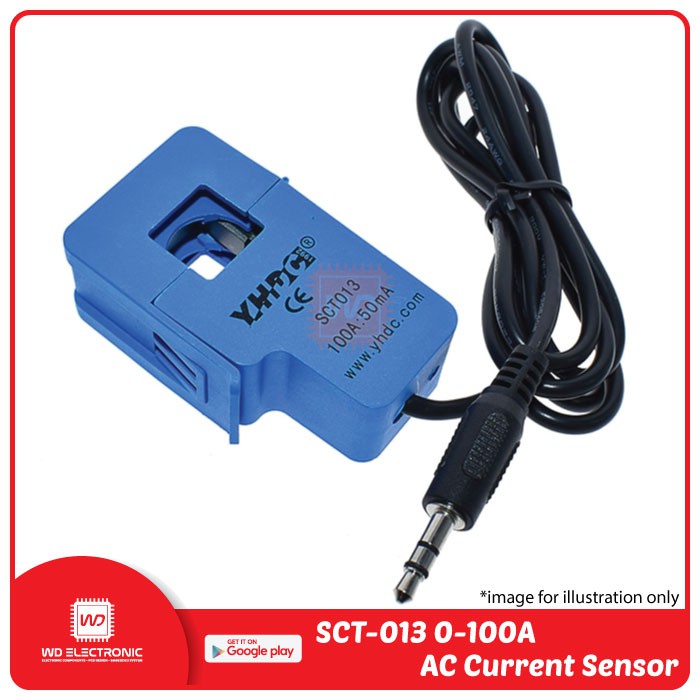

SCT-013 0-100A Non-invasive Split Core Current Transformer AC Current

Elektronik > Elektronik Lainnya > SCT-013 0-100A Non-invasive Split Core Current Transformer AC Current
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail SCT-013 0-100A Non-invasive Split Core Current Transformer AC Current

Hi #RekanEasyWare ...
- EasyWare Part# [30A]: EP001780
- EasyWare Part# [50A]: EP001781
- EasyWare Part# [100A]: EP001782

Spesifications :
- Model: SCT013 Non-invasive current transformer
- Meet UL94-V0 flame retardant properties
- Two form of output current,
- Voltage (voltage output built-in the sampling resistor)
- Non-linearity +/-3%(10%-120% rated input current)
- Reference project: Open Energy Monitor
- Core Material: Ferrite
- Dielectric Strength:6000V AC/1min
- Anti-flaming rate: UL94-V0
- Mechanical strength: opening and closing times, no less than 1000 times (20 Celsius)
- Opening Size: Approx. 0.51 x 0.51inch / 13 x 13mm
- Dielectric Strength: 6000V AC/1min
- Working Temperature:-25-70 Celsius
- Cable Length: Approx. 41.37 inch / 105cm

Applications :
- Suitable for lighting equipment, AC motors, air compressors, monitoring, current measurement, and protection
- Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.

Package :
- 1x SCT-013-050 Non-invasive Split Core Current Transformer AC Current sensor
