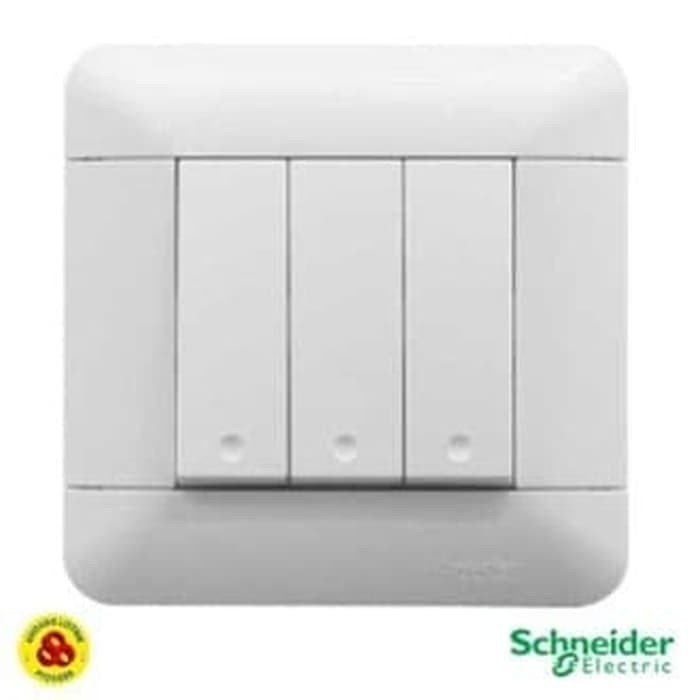

Schneider Saklar Triple 3G Arcato E8133L1_WE 3 Gang 1 Way Putih

Merek: SCHNEIDER | Lihat selengkapnya produk Elektronik dari SCHNEIDER
Elektronik > Kelistrikan > Saklar > Schneider Saklar Triple 3G Arcato E8133L1_WE 3 Gang 1 Way Putih
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Schneider Saklar Triple 3G Arcato E8133L1_WE 3 Gang 1 Way Putih

SAKELAR 3GANG 1WAY E8133L1_WE ARCATO SCHENEIDER ELECTRIC
Colour tint White
Device mounting Flush mounted, embedding depth: >= 35 mm
Mounting support Mounting box conforming to BS 4662
Fixing mode By screws M3.5, length = 25 mm
By screws M4, length = 25 mm
Fixing center 60.3 mm
Switch function 1-way
Number of gangs 3 gangs
Size 16.8 x 50 mm
Actuator Rocker
Rated current 10 AX at 250 V AC (f = 50 Hz)
Connections - terminals Pillar terminals
Cable cross section 1...2 x 2.5 mm stranded copper cable
1...2 x 2.5 mm solid copper cable
1...4 x 1.5 mm stranded copper cable
1...4 x 1.5 mm solid copper cable
1 x 4 mm stranded copper cable
1 x 4 mm solid copper cable
Height 86 mm
Width 86 mm
