Detail Schneider Saklar Seri 2 Gang Arcato E8132L1_WE 2 Gang 1 Way Putih
SAKELAR 2GANG 1WAY E8132L1_WE ARCATO SCHNEIDER ELECTRIC Colour tint White Device mounting Flush mounted, embedding depth: >= 35 mm Mounting support Mounting box conforming to BS 4662 Fixing mode By screws M3.5, length = 25 mm By screws M4, length = 25 mm Fixing center 60.3 mm Switch function 1-way Number of gangs 2 gangs Size 25 x 50 mm Actuator Rocker Rated current 10 AX at 250 V AC (f = 50 Hz) Connections - terminals Pillar terminals Cable cross section 1...2 x 2.5 mm stranded copper cable 1...2 x 2.5 mm solid copper cable 1...4 x 1.5 mm stranded copper cable 1...4 x 1.5 mm solid copper cable 1 x 4 mm stranded copper cable 1 x 4 mm solid copper cable Material Steel terminals Brass spring Nylon terminals Extruded brass spring Polycarbonate spring Polycarbonate terminals Height 86 mm Width 86 mm

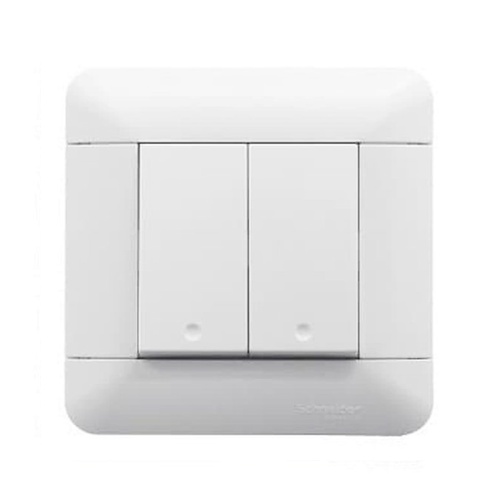

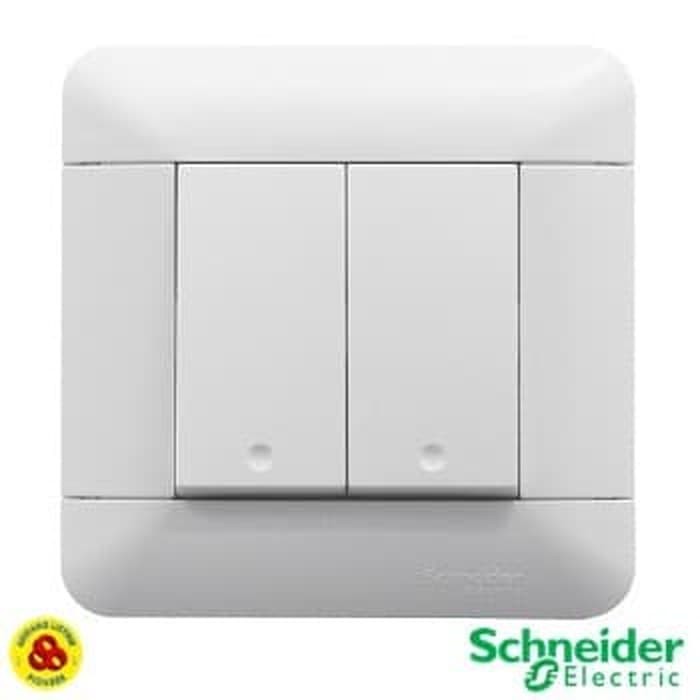

Gambar produk
Schneider Saklar Seri 2 Gang Arcato E8132L1_WE 2 Gang 1 Way PutihSchneider Saklar Seri 2 Gang Arcato E8132L1_WE 2 Gang 1 Way Putih
