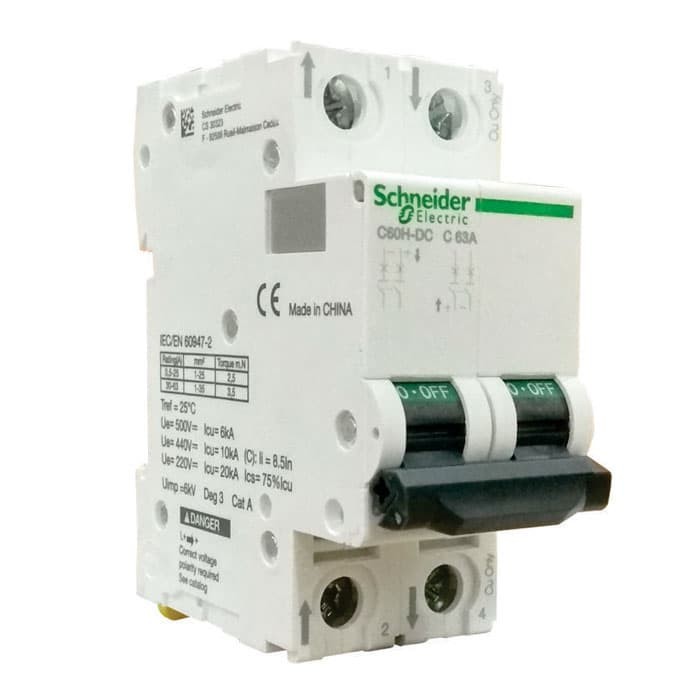

Detail SCHNEIDER MCB DC C60H-DC 500VDC 63A 2P - A9N61539

range of product C60
range Acti 9
product name Acti 9 C60H-DC
product or component type Miniature circuit-breaker
device short name C60H-DC
device application Distribution
poles description 2P
number of protected poles 2
[In] rated current 63 A at 25 C
network type DC
trip unit technology Thermal-magnetic
curve code C
breaking capacity code H
breaking capacity Icu 20 kA at 220 V DC conforming to GB 14048.2
Icu 10 kA at 440 V DC conforming to EN 60947-2
Icu 10 kA at 440 V DC conforming to IEC 60947-2
Icu 6 kA at 500 V DC conforming to EN 60947-2
Icu 6 kA at 500 V DC conforming to IEC 60947-2
Icu 20 kA at 220 V DC conforming to IEC 60947-2
Icu 20 kA at 250 V DC conforming to GB 14048.2
Icu 20 kA at 250 V DC conforming to IEC 60947-2
suitability for isolation Yes conforming to EN 60947-2
Yes conforming to IEC 60947-2

Complementary
network frequency 50/60 Hz
[Ue] rated operational voltage 500 V DC
[Ics] rated service breaking capacity 15 kA 75 % x Icu at 220 V DC conforming to EN 60947-2
15 kA 75 % x Icu at 220 V DC conforming to IEC 60947-2
15 kA 75 % x Icu at 250 V DC conforming to EN 60947-2
15 kA 75 % x Icu at 250 V DC conforming to IEC 60947-2
4.5 kA 75 % x Icu at 500 V DC conforming to EN 60947-2
4.5 kA 75 % x Icu at 500 V DC conforming to IEC 60947-2
7.5 kA 75 % x Icu at 440 V DC conforming to EN 60947-2
7.5 kA 75 % x Icu at 440 V DC conforming to IEC 60947-2
