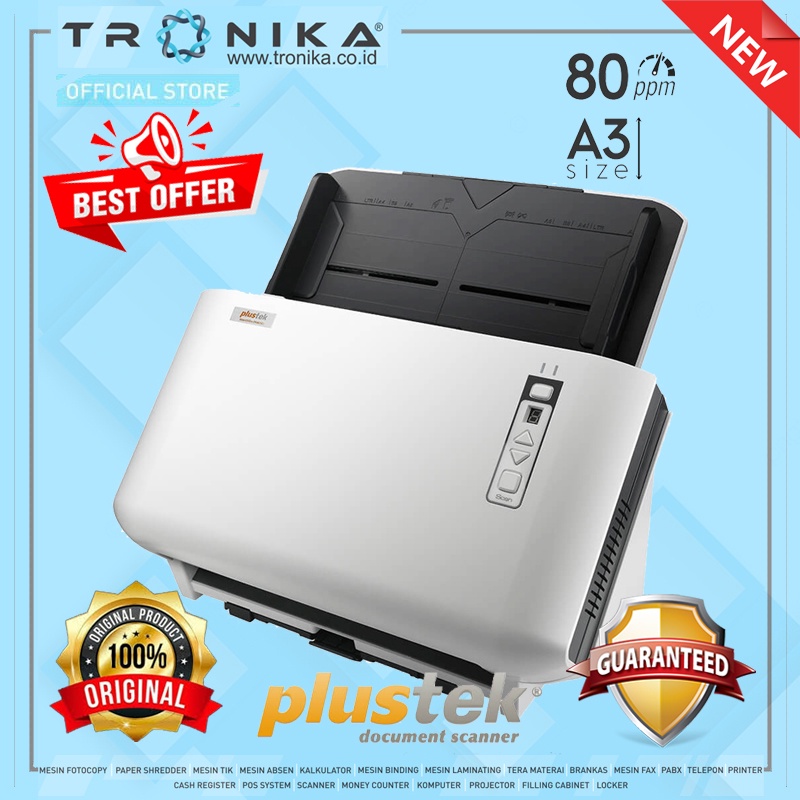

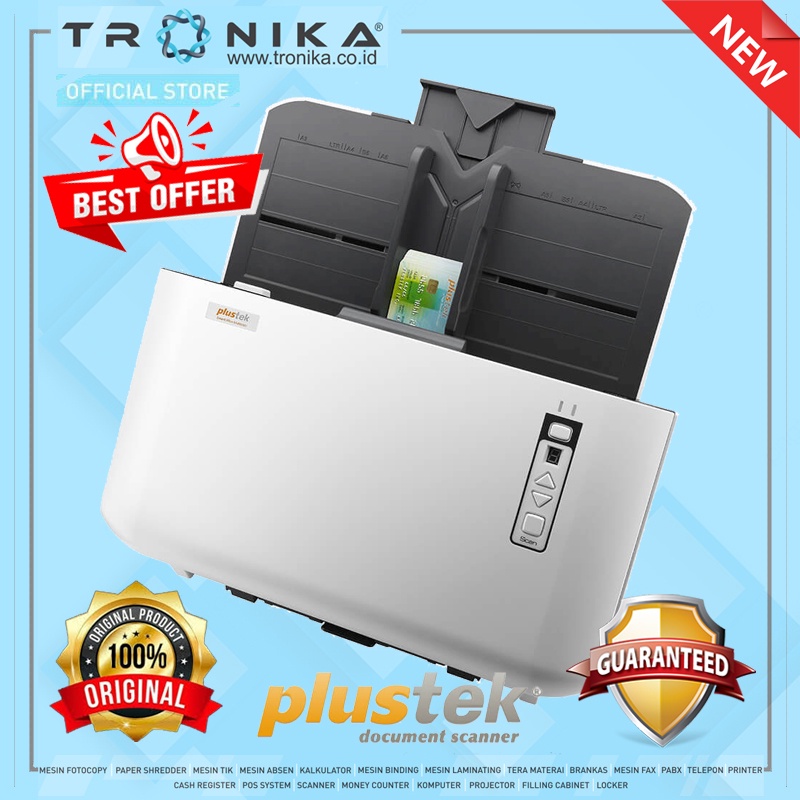

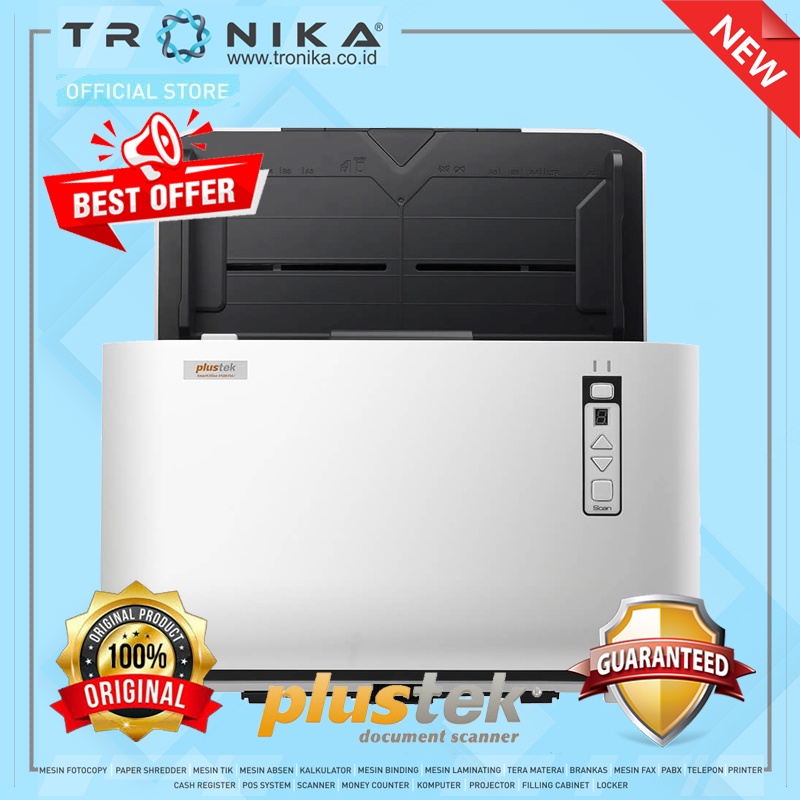

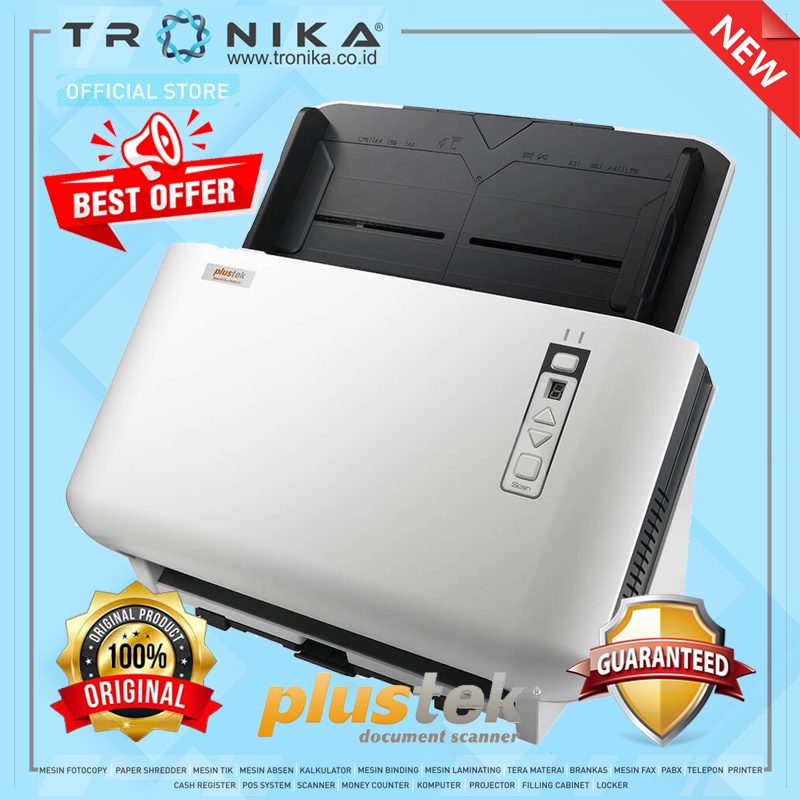

SCANNER DOKUMEN PLUSTEK SmartOffice SC8016U Automatic Document Feeder (ADF)

Detail SCANNER DOKUMEN PLUSTEK SmartOffice SC8016U Automatic Document Feeder (ADF)

PLUSTEK SmartOffice SC8016U

Type Automatic Document Feeder (ADF)

Image Sensor CIS x 2

Optical Resolution 600 dpi

Hardware Resolution 600 x 600 dpi




ADF Capacity

* 1. 100 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs), Max. thickness under 10 mm
(0.4”)
* 2. 50 sheets (A3, 70 g/㎡ or 18 Lbs)
* 3. 20 sheets (Business Cards)
* 4. Plastic Card (Portrait Loading), Max. thickness under 1 mm, embossed cards
can be scanned.
* Note: Maximum ADF capacity varies, depending upon paper weight.

Scanning Speed ( ADF ) 80 ppm/ 160 ipm (Grayscale/ B&W mode, 300 dpi, A4
Landscape)

* 45 ppm/ 90 ipm (Color mode, 200 dpi, A4 Landscape)
* 30 ppm/ 60 ipm (Color mode, 300 dpi, A4 Landscape)
* Note: Results may vary depending upon your scanning application, computer
processor and system memory.

Scanning Area (W x L)

* Max: 297 x 5080 mm (11.69” x 200”)
* Min: 13.2 x 13.2 mm (0.52” x 0.52”)
* Scan: Kartu Nama, A5, Kuarto, Letter, A4, Folio (F4), Legal, A3

Acceptable Paper Sizes (W x L)

* Max: 305 x 5080 mm (12” x 200”)
* Min: 50.8 x 63.5 mm (2” x 2.5”)

Acceptable Paper Weight (Thickness)

*  40 to 220 g/㎡ (10 to 58 Lbs)
* Daily Duty Scan ( Sheets ) 8,000
* Roller Lifetime (Scans) 300,000
* Pad Lifetime (Scans) 100,000

Action Button

* 4 Buttons: Up, Down, Scan, Standby
* 9 function keys: all customizable.




Power Supply 24 Vdc/ 2.7 A

Interface USB 2.0

Net Weight 9 Kgs (19.8 Lbs)

Dimensions (W x D x H) 436 x 262 x 266 mm (17.16″ x 10.31″ x 10.47″)

Protocol TWAIN Compliant

OS Windows XP / Vista / 7 / 8 / 10 / 11




Hardware Requirements

* Pentium IV 3.2 GHz processor
* CD-ROM Driver
* One available USB Port (USB 2.0 recommended)
* 1GB RAM or higher recommended
* 800 MB free HDD space (1 GB or larger recommended)
* For longer documents/higher resolutions: Pentium IV, 3.2 GHz processor, 3 GB
RAM

Spesifikasi Berat Produk

* Berat Bersih 9 Kg
* Berat Kotor 14 Kg
* Dimensi Produk (P) 43,6 x (L) 26,2 x (T) 26,6 cm
* Dimensi Kardus Luar (P) 47 x (L) 56 x (T) 52 cm

**Note :

Untuk Pengiriman di Luar Daerah, kami menyarankan untuk menggunakan Packing Kayu
Tambahan untuk Meminimalisir Kerusakan dalam Pengiriman Jarak Jauh.

Harga Belum Termasuk Biaya Pengiriman. Mohon tanyakan kepada kami terlebih
dahulu / silahkan Pilih kurir yang anda butuhkan.

==========================================================
