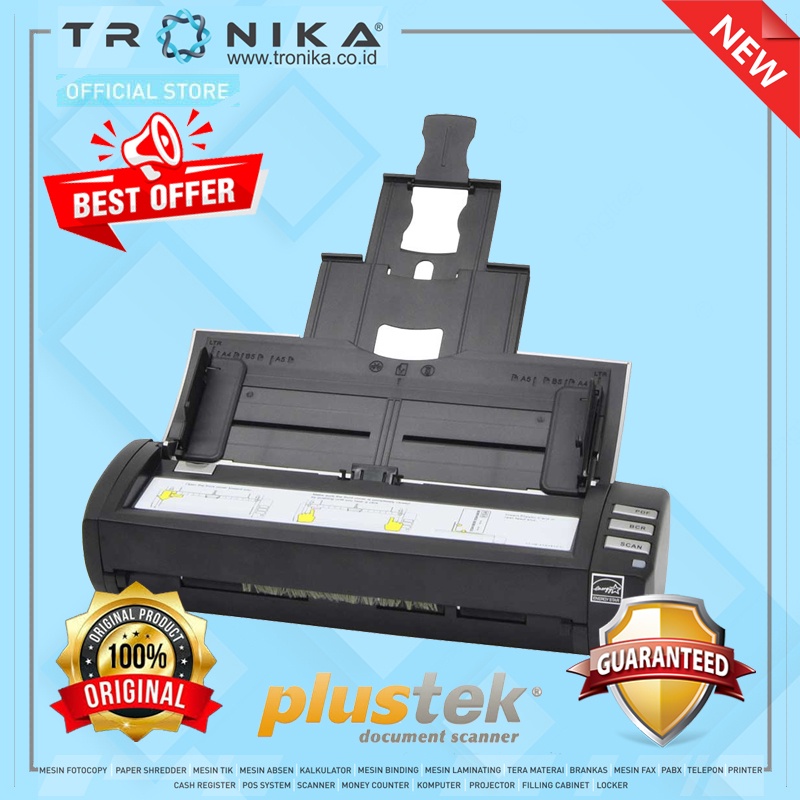

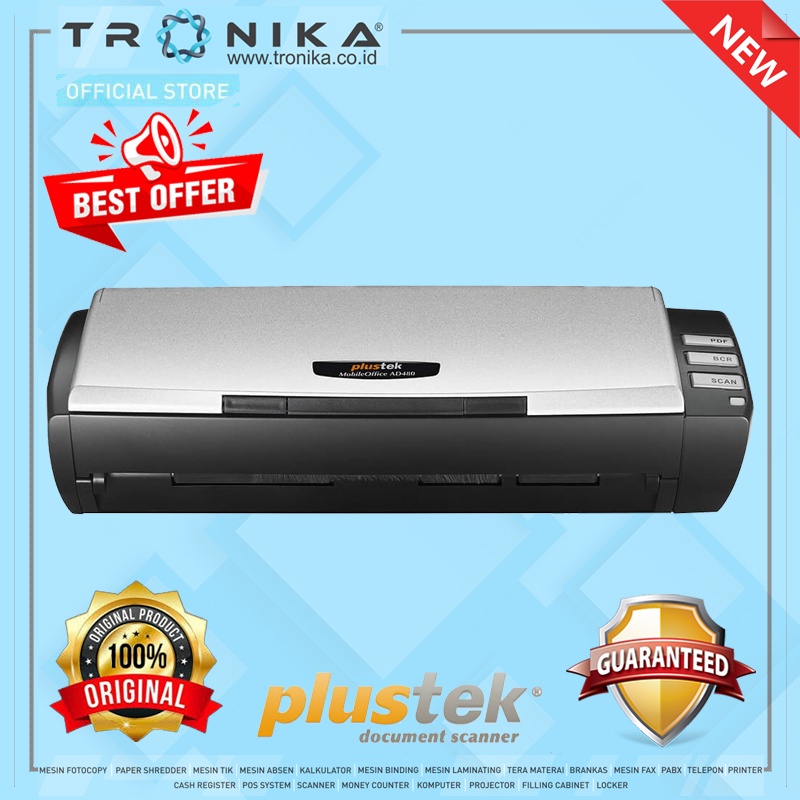

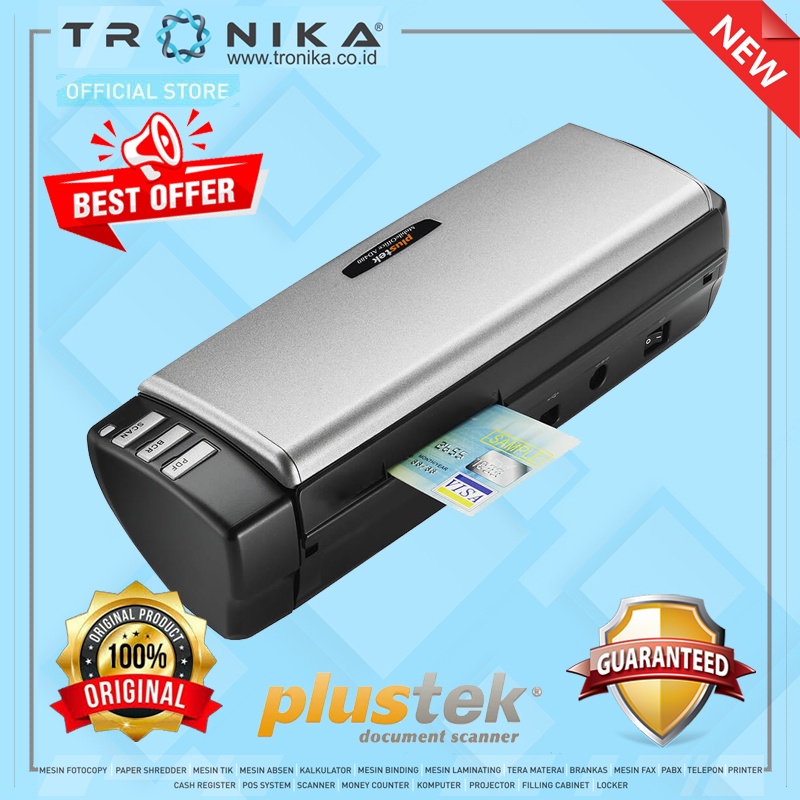

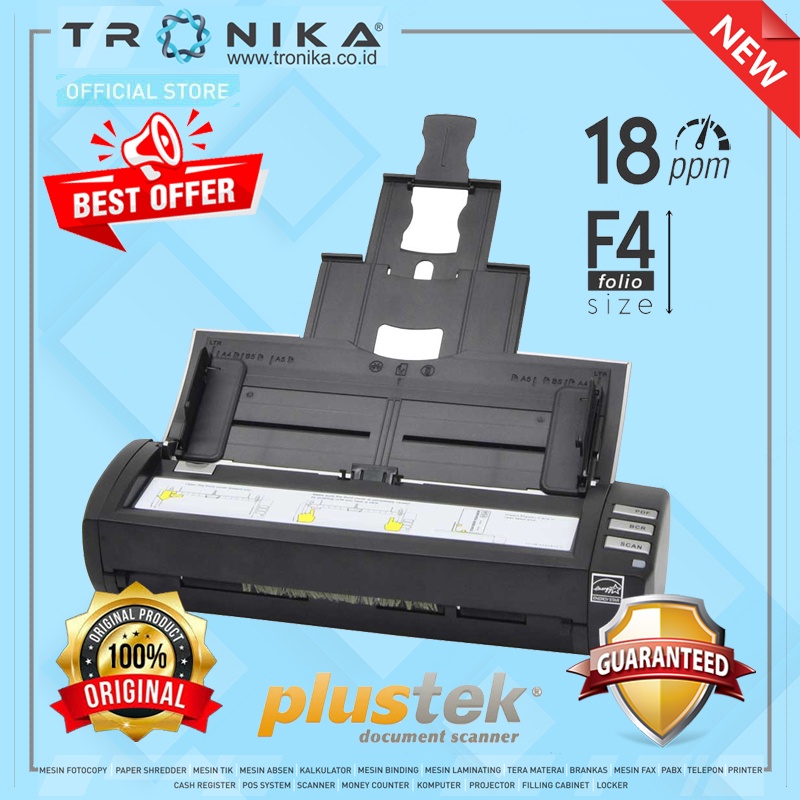

SCANNER DOKUMEN PLUSTEK MobileOffice AD480 Automatic Document Feeder (ADF)

Detail SCANNER DOKUMEN PLUSTEK MobileOffice AD480 Automatic Document Feeder (ADF)

PLUSTEK MobileOffice AD480




 Type : Automatic Document Feeder (ADF)

Image Sensor : CIS x 2

Light Source : LED

Optical Resolution : 600 dpi

Hardware Resolution : 600 x 600 dpi

Scan Modes

* Color: 48-bit Input; 24-bit Output
* Grayscale: 16-bit Input; 8-bit Output
* B/W: 1-bit

ADF Capacity

* 20 Sheets (A4/ Letter, 70 g/㎡ or 18 Lbs)
* 6 Sheets (Business Card)

Scanning Speed

* 20 ppm / 40 ipm (Color, 200 dpi, A4)
* 20 ppm / 40 ipm (Grayscale, 200 dpi, A4)

Scanning Area (W x L)

ADF:

* Maximum: 216 x 914.4 mm (8.5″ x 36″)
* Minimum: 12.7 x 12.7 mm (0.5″ x 0.5″)

Scan: Kartu Nama, A5, Quarto, Letter, A4, Folio (F4), Legal

Cardslot:

* Maximum: 90.9 x 105 mm (3.58″ x 4.13″)
* Minimum: 12.7 x 12.7 mm (0.5″ x 0.5″)

Acceptable Paper Sizes (W x L)

ADF:

* Maximum: 216 x 914.4 mm (8.5″ x 36″)
* Minimum: 50.8 x 50.8 mm (2″ x 2″)

Cardslot:

* Maximum: 90.9 x 105 mm (3.58″ x 4.13″)
* Minimum: 50.8 x 50.8 mm (2″ x 2″)

Acceptable Paper Weight (Thickness)

* Paper: up to 0.4 mm or 50 g/㎡ to 120 g/㎡
* Plastic card: Non-Embossed up to 0.76 mm & Embossed up to 1.24 mm (ISO 7810)

Daily Duty Scan ( Sheets ) : 1.500

Roller Lifetime (Scans) : 100.000

Pad Lifetime (Scans) : 20.000

Action Button : PDF, BCR, Scan

Power Supply : AC adapter: 24 V / 0.75 A

Interface : USB 2.0 (x1)

Net Weight : 1.3 Kgs (2.87 Lbs)

Dimensions (W x D x H) : 98 x 288.5 x 75 mm (11.36″ x 3.8″ x 2.96″)

Protocol : TWAIN compliant

OS : Window XP / Vista / 7 / 8 / 10 / 11

Hardware Requirements :

* Pentium® IV 2.0 GHz processor or higher
* CD-ROM/ DVD-ROM drive
* One available USB 2.0 port
* 1GB RAM (1GB or higher recommended)
* 800MB Free HDD space (1GB or larger recommended)

Daftar Kelengkapan Produk

* 1 Scanner MobileOffice AD480 1 AC Adaptor 24V
* 1 CD Instalasi 1 Kabel USB
* 1 Lap Pembersih 1 CD Plustek Tools
* 1 Kertas Kalibrasi
* 1 Panduan cara pemasangan scanner (Bahasa Indonesia)
* 1 Panduan cara pemasangan scanner (Bahasa Inggris)

Spesifikasi Berat Produk

* Berat Bersih 1,3 Kg
* Berat Kotor 3 Kg
* Dimensi Produk (P)28,85 x (L)9,8 x (T)7,5 cm
* Dimensi Kardus Luar (P)35 x (L)16 x (T)20 cm

**Note :

Untuk Pengiriman di Luar Daerah, kami menyarankan untuk menggunakan Packing Kayu
Tambahan untuk Meminimalisir Kerusakan dalam Pengiriman Jarak Jauh.
