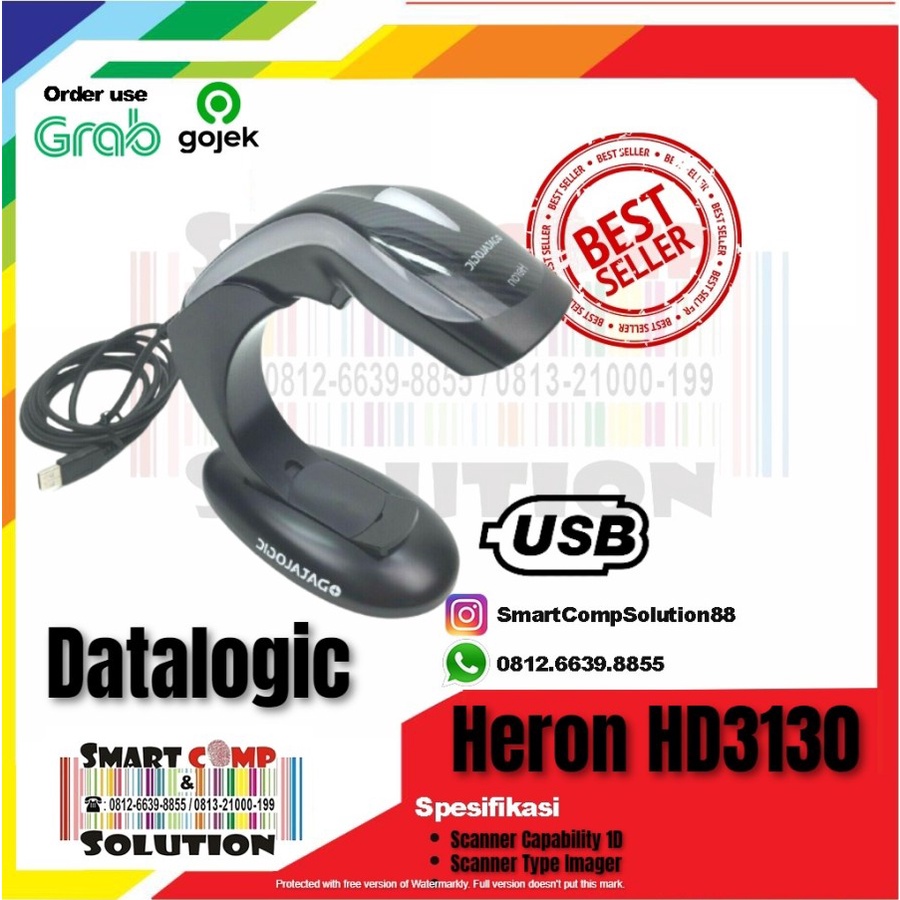

Scanner Barcode USB 1D Datalogic Heron HD3130 / HD-3130 / HD 3130

Detail Scanner Barcode USB 1D Datalogic Heron HD3130 / HD-3130 / HD 3130

canner Capability 1D
Connection USB
Connectivity Corded
Scanner Type Imager
Scan Pattern LED Beam
Form Factor Presentation, Handheld
Color Black
Included Cables USB
Ruggedness General Purpose
DECODING CAPABILITY
1D / LINEAR CODES Autodiscriminates all standard 1D codes
including GS1 DataBar™ linear codes.
POSTAL CODES China Post
STACKED CODES GS1 DataBar Expanded Stacked; GS1 DataBar
Stacked; GS1 DataBar Stacked Omnidirectional
ELECTRICAL
CURRENT Operating (Maximum): <500 mA @ 5 VDC
Operating (Typical): <300 mA @ 5 VDC
INPUT VOLTAGE 5 VDC +/- 5%
ENVIRONMENTAL
AMBIENT LIGHT 0 - 100,000 lux
DROP RESISTANCE Withstands repeated drops from 1.5 m / 5.0 ft
onto a concrete surface.
ESD PROTECTION (AIR DISCHARGE) 16 kV
HUMIDITY (NON-CONDENSING) 5 - 90%
PARTICULATE AND WATER SEALING IP40
TEMPERATURE Operating: 0 to 50 °C / 32 to 122 °F
Storage/Transport: -20 to 70 °C / -4 to 158 °F
INTERFACES
INTERFACES RS-232 / USB / Keyboard Wedge Multi-Interface
PHYSICAL CHARACTERISTICS
COLORS AVAILABLE Black; White
Other colors and custom logo options are
available for minimum quantity purchase.
TOP CAP DESIGN Carbon-Fiber; Silver
DIMENSIONS 15.2 x 15.3 x 6.8 cm / 6.0 x 6.0 x 2.7 in
WEIGHT 150.0 g / 5.3 oz
READING PERFORMANCE
IMAGER SENSOR CCD Solid-State (2500 pixels)
PRINT CONTRAST RATIO (MINIMUM) 15%
READ RATE (MAXIMUM) 270 reads/sec.
READING INDICATORS Beeper (Adjustable Tone and Volume);
Datalogic ‘Green Spot’ Good Read Feedback;
Side and Upper Illumination
Good Read LED
RESOLUTION (MAXIMUM) 0.100 mm / 4 mils

mohon chat kami terlebih dahulu sebelum bertransaksi untuk ketersediaan barang.
terimakasih.
