SC8108 Cable Tester LCD Digital Cat5 RJ45 Network Lan

Detail SC8108 Cable Tester LCD Digital Cat5 RJ45 Network Lan

SC8108 Cable Tester LCD Digital Cat5 RJ45 Network La

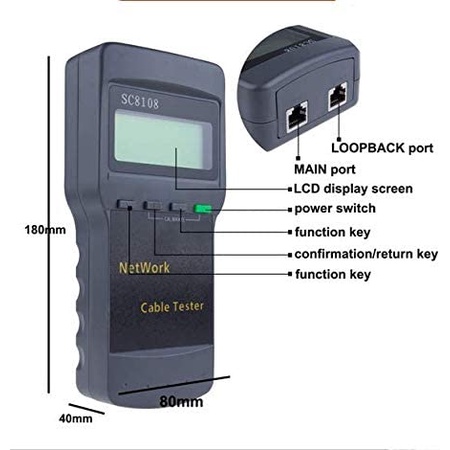

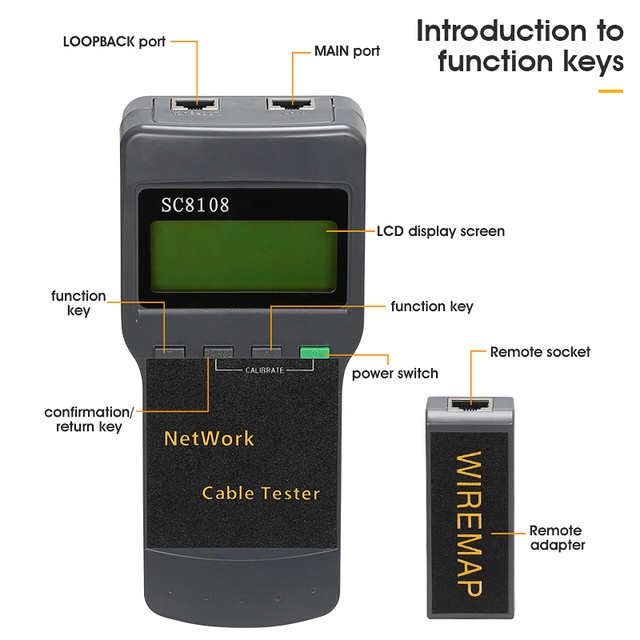

SC8108 CAT5, CAT6 RJ45 Network LAN Length Cable Tester Meter Tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), far-end recognizer RJ45 port (R).
LCD: 4 x 16 characters (visible dimension: 61.6 x 25.2 mm)
Application: STP / UTP twin twisted cable.
Tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), far-end recognizer RJ45 port (R)
Length measurement of twin twisted cable:
Scope : 1350M (31,200 FT)
Calibration accuracy : 3% ( 0.5m or 1.5 ft) (calibrating cable > 5 M)
Shipment accuracy : 5% ( 0.5m or 1.5 ft) (AMP, AT&T Class 5 cable)
Display : M or FT
Length calibration: User can set calibration factor by himself by a given length cable.
The length of calibrating cable is more than 5m.
Working temperature: -10C to 60C
Powered by 4 AAA batteires (NOT included)
Dimension: 180 x 80 x 40 mm

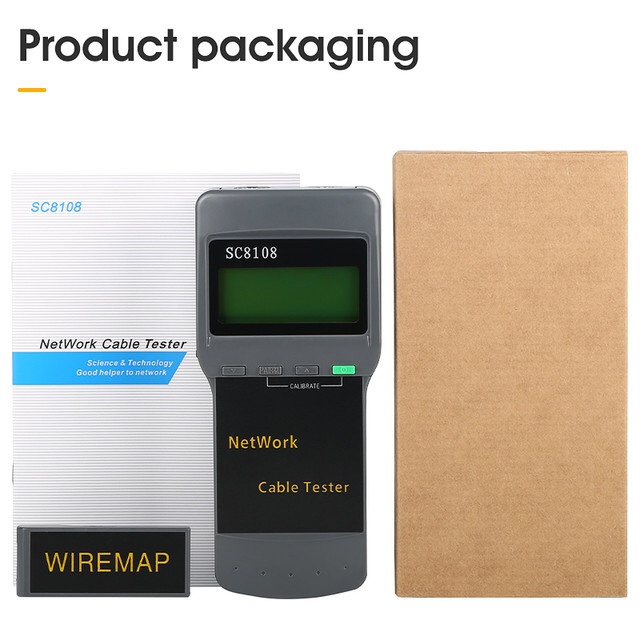

ISI KEMASAN/PAKET
1 X Network tester
1 X User manual

FUNGSI PRODUK
1. Mudah dioperasikan
2. Memeriksa kesalahan kabel dari 5E & 6E kabel,
3. Hubung singkat, kawat jumper, membalikkan koneksi dan cross-talk gangguan
4. Cari lokasi kabel atau koneksi error
5. Mengukur panjang kabel, dan menemukan lokasi sirkuit terbuka dan sirkuit pendek

Gambar produk
