Satu Pair 1000 Mbps Fiber Optik Media Converter Optic Rj45

Detail Satu Pair 1000 Mbps Fiber Optik Media Converter Optic Rj45

Barang jamin ready


Harga yang tertera per pair yah!
1 pair = dapet side A dan side B (htb3100A + htb3100B + 2Adaptor)
High quality 10/100Mbps Ethernet to Fiber Optic Media Converter 25KM SC (1 Pasang)

MEREK :netLINK
Model:HTB-3100AB

Features:
-An RJ45 ports and a single-fiber SC optical port,to achieve optical signal conversion between 10/100base TX twisted pair (Ethernet )and 100base FX (fiber optic);
-Core optical fiber can be completed in just one way signal transmission compared to dual fiber optic data transmission mode to improve the quantity doubled;
-Compliance with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX, 100Base-FX standards;
-Has 10M/1000M adaptive capacity;
-Ethernet interface can adaptively direct line / crossover cable connection;
-Support full / half duplex mode;
-Support IEEE802.3X duplex flow control and half-duplex backpressure flow control;
-Supports broadcast storm prevention function;
-Built- in lightning protection circuit , which can greatly reduce the damage caused by lightning induction;
-UTP up to 100 meters; longest 100 km single-mode fiber;
-Six LED indicators: Power, TX 100, TX Link / Act, FX 100, FX Link / Act, FDX / Col;easy to monitor the working status of the transceiver and determine the cause of the fault;
-Ambient temperature: 0-70 degree
-Humidity: 5% to 90%

Fiber Optic Parameters:
Fiber optic type:Single mode
Connector type:SC
Transmit Wave length:1310/1550nm
Transmission distance:25 Km
Min TX PWR:-9.0 dBm
Max TX PWR:-3 dBm
Sensitivity:-31.0 dBm
Link Budget:22.0 dBm

Package Include:
1xHTB-3100A atau HTB-3100B
1xAdaptor
1xManual

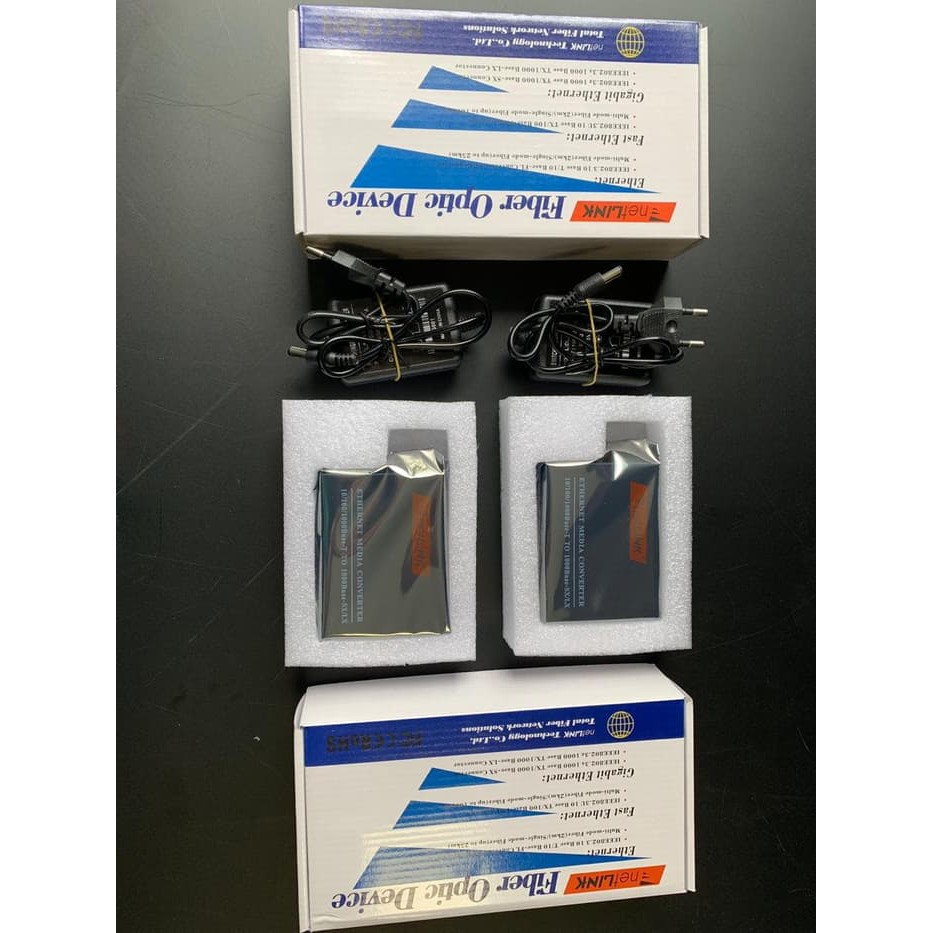

Gambar produk
