SAMYUNG SART SAR-9 SART9 RADAR TRANSPONDER NEW ORIGINAL GARANSI RESMI

Detail SAMYUNG SART SAR-9 SART9 RADAR TRANSPONDER NEW ORIGINAL GARANSI RESMI

Deskripsi Produk : SAMYUNG SART SAR-9 RADAR TRANSPONDER

Features
• Complied with related IMO/GMDSS requirements
• Designed for reliable operation in the roughest of marine evironments
• Lightweight and rugged construction is suitable for placing at liferafts.
• Complete set with a liferaft mounting kit
• Efficiently assisting ship or survival craft rescue operations

Specifications
• Frequency : 9.2 ~9.5 GHz
• Polarization : Horizontal
• Vertical beam width : +12.5 Degrees
• Azimuthal beam width : Omnidirectional to ±2dB
• Radiated power : > 400mW (+26dBm)
• Form of sweep : Sawtooth(12 sweeps)
• Pulse emission : < 100㎲
• Forward sweep time : 7.5㎲ ± 1㎲
• Return sweep time : 0.4㎲ ± 0.1㎲
• Recovery time : < 10㎲
• Response time : < 0.5㎲
• Effective sensitivity : better than -50dBm
• Duration of operation : 96 hours in standby condition followed by a minimum 8 hours of transmissin while being
continuously interrograted by an X-band radar with a pulse repetition frequency of 1KHz at extreme temperatures
• Battery life : 5 years
• Temperature range : Operating -20℃ to 55℃, Storage -30℃ to 65℃

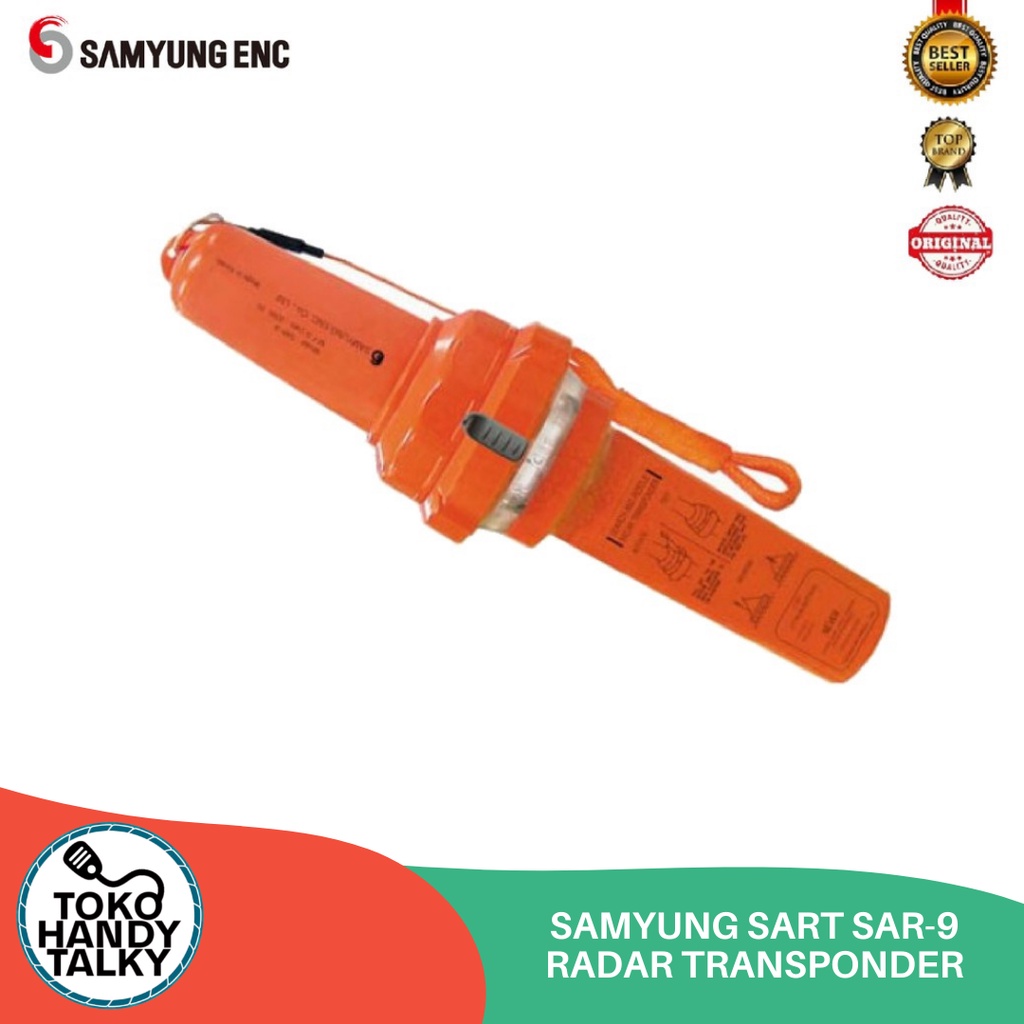

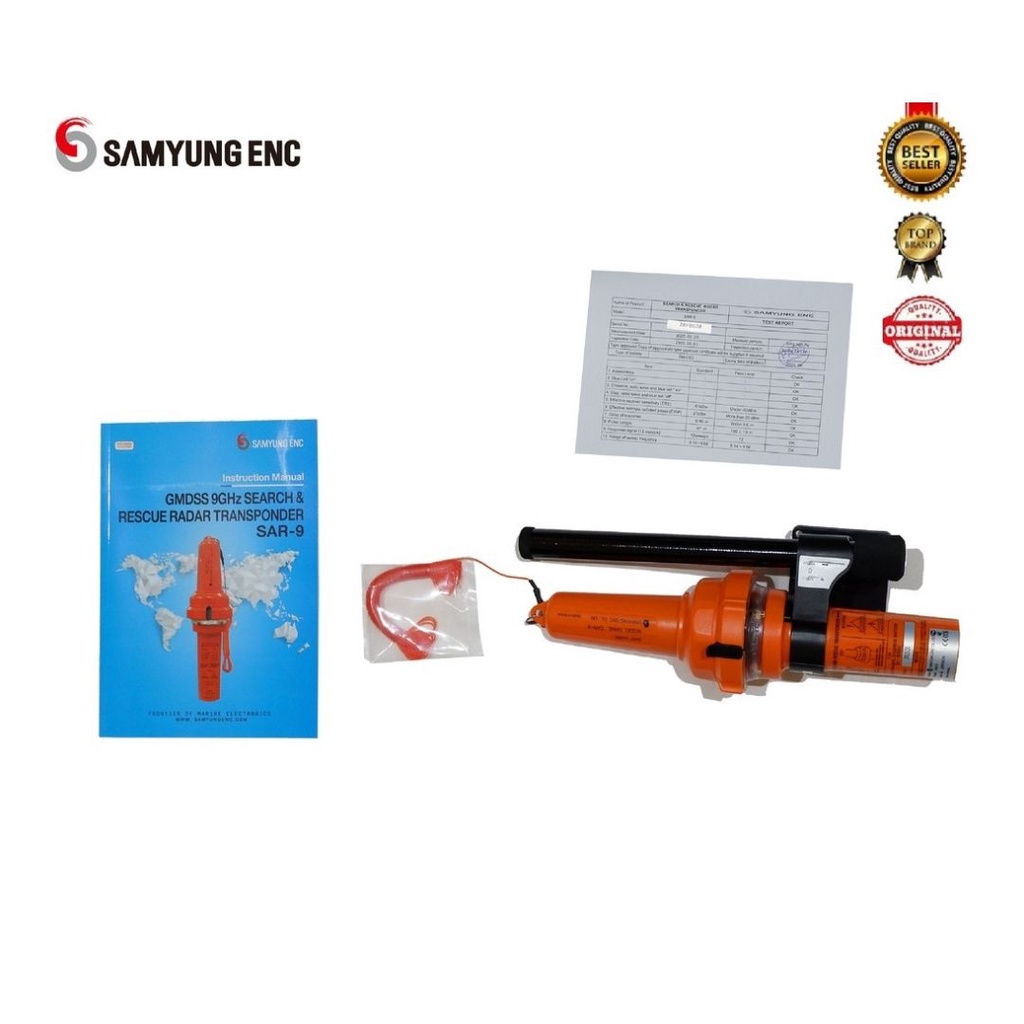

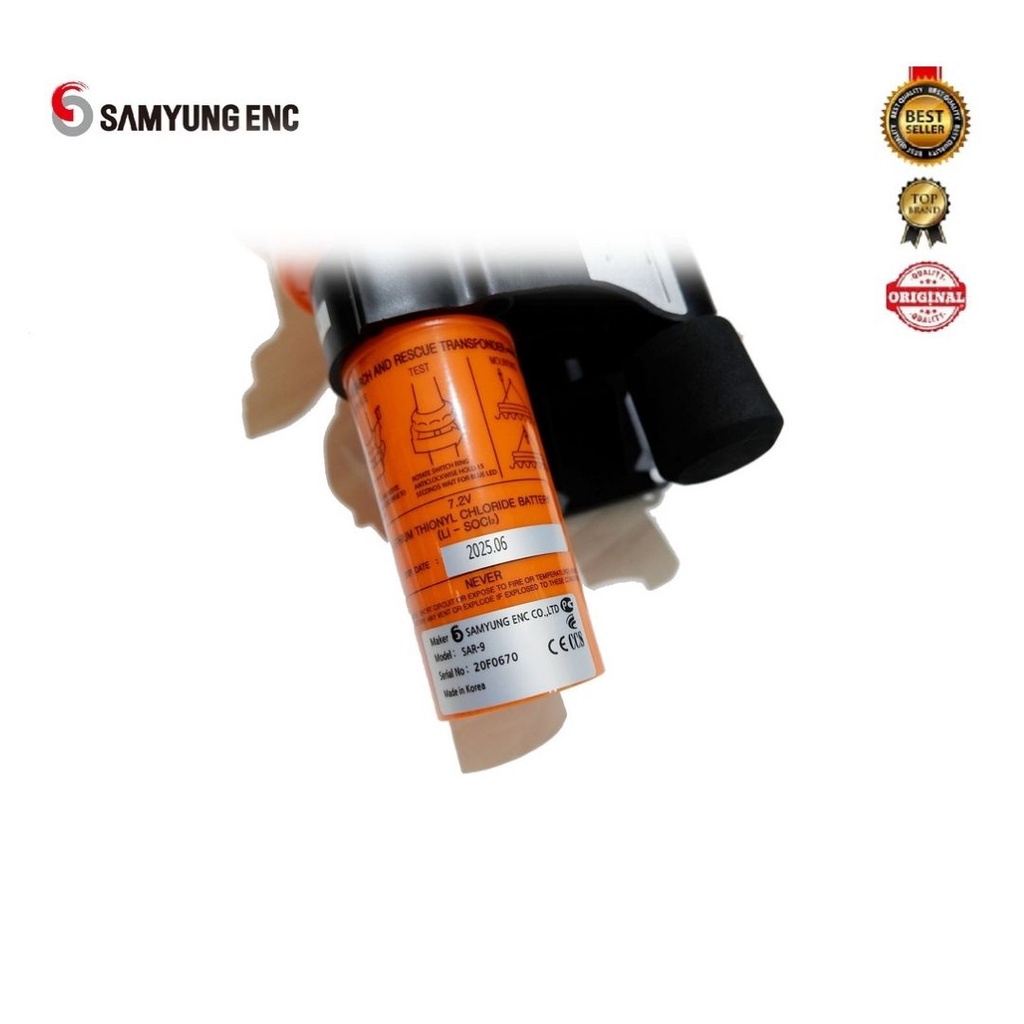

Gambar produk
