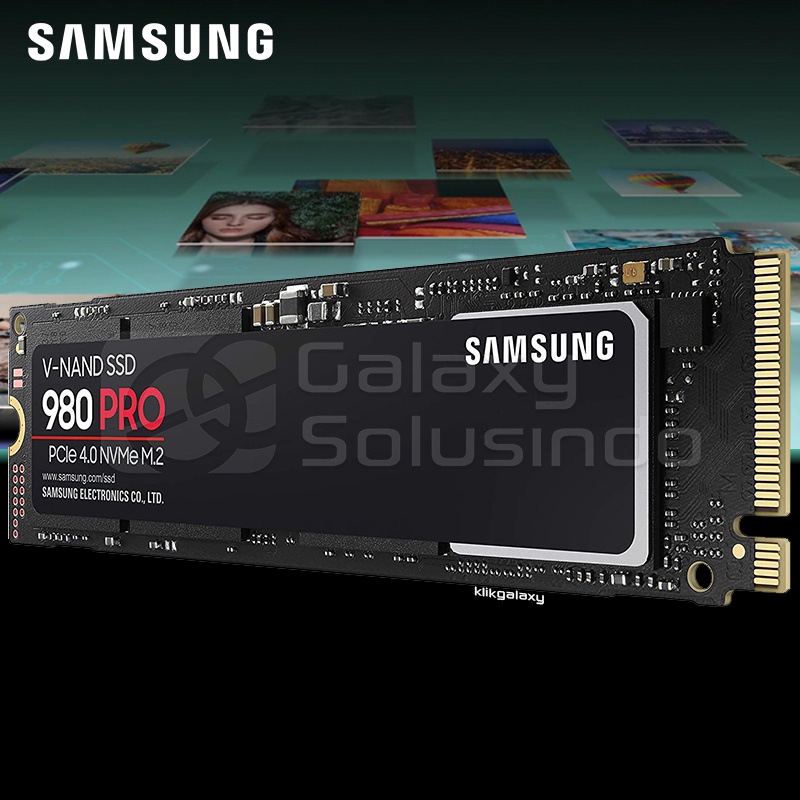

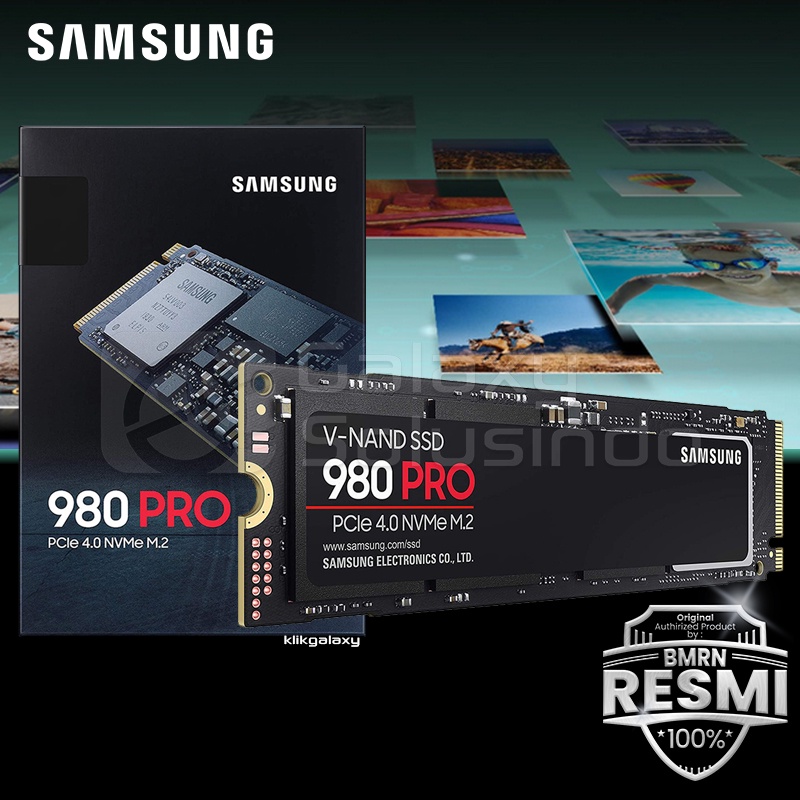

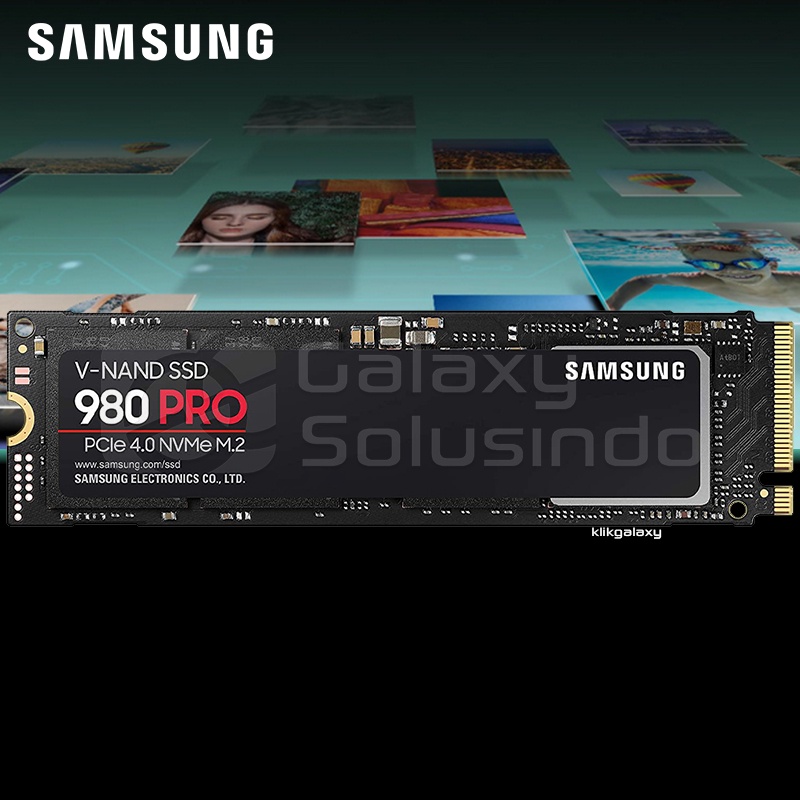

Samsung SSD 980 PRO M.2 NVMe 250GB

Detail Samsung SSD 980 PRO M.2 NVMe 250GB

Model Code (Capacity)1)

MZ-V8P250BW (250GB)

General Feature

Application

Client PCs
FORM FACTOR

M.2 (2280)
INTERFACE

PCIe® Gen 4.0 x4, NVMe™ 1.3c
DIMENSION (WxHxD)

80.15 x 22.15 x 2.38 (mm)
WEIGHT

Max 9.0 g
STORAGE MEMORY

Samsung V-NAND 3-bit MLC
CONTROLLER

Samsung Elpis Controller
CACHE MEMORY

Samsung 512MB Low Power DDR4 SDRAM (250GB)

Special Feature

TRIM Support

Supported
S.M.A.R.T Support

Supported
GC (GARBAGE COLLECTION)

Auto Garbage Collection Algorithm
ENCRYPTION SUPPORT

AES 256-bit Encryption (Class 0), TCG/Opal, IEEE1667 (Encrypted drive)
WWN SUPPORT

Not Supported
DEVICE SLEEP MODE SUPPORT

Yes

Performance2)

SEQUENTIAL READ

250GB: Up to 6,400 MB/s
SEQUENTIAL WRITE

250GB: Up to 2,700 MB/s
RANDOM READ (4KB, QD32)

250GB: Up to 500,000 IOPS
RANDOM WRITE (4KB, QD32)

250GB: Up to 600,000 IOPS
RANDOM READ (4KB, QD1)

250GB: Up to 22,000 IOPS
RANDOM WRITE (4KB, QD1)

250GB: Up to 60,000 IOPS

Environment

AVERAGE POWER CONSUMPTION
(System Level)3)

250GB: Average 5 W Maximum 7 W
(Burst mode)
POWER CONSUMPTION (IDLE)3)

Max. 35 mW
POWER CONSUMPTION (DEVICE SLEEP)

Max. 5 mW
ALLOWABLE VOLTAGE

3.3 V ± 5 % Allowable voltage
RELIABILITY (MTBF)

1.5 Million Hours Reliability
OPERATING TEMPERATURE

0 - 70 ℃
Shock

1,500 G & 0.5 ms (Half sine)

Accessories

INSTALLATION KIT

Not Available

Software

MANAGEMENT SW

Magician Software for SSD management

Warranty

MZ-V8P250BW (250GB)

5 Years or 150 TBW
