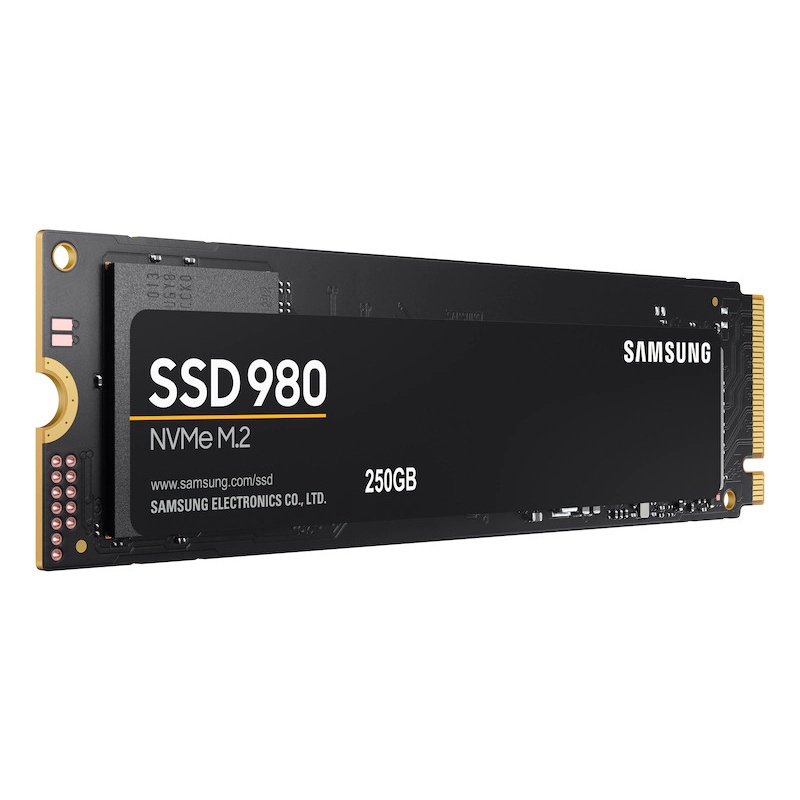

General Feature Product Type 980 PCIe® 3.0 NVMe® SSD 250GB
Family Line 980 PCIe® 3.0 NVMe® SSD
Capacity 250GB
Interface PCIe® Gen 3.0 x4, NVMe® 1.4
Dimension (WxHxD)
80.15 x 2.38 x 22.15 (mm)
Performance Speed Read/write speeds up to: 2,900/1,300MB/s
Encryption AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667)
Type Interface PCIe® Gen 3.0 x4, NVMe 1.4
Usage Application Client PCs
Storage Capacity 250GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Key Features Sequential Read Speed Up to 2,900 MB/s * Performance may vary based on system hardware & configuration
Sequential Write Speed Up to 1,300 MB/s * Performance may vary based on system hardware & configuration
Cache Memory
HMB(Host Memory Buffer)
Trim Support Supported
S.M.A.R.T. Support Supported
GC (Garbage Collection) Auto Garbage Collection Algorithm
WWN Support
Not supported
Device Sleep Mode Support Yes
NVMe PCIe® 3.0
General Average Power Consumption (system level) *Average: 3.7 W* Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle) Max. 45 mW * Actual power consumption may vary depending on system hardware & configuration
Reliability (MTBF) 1.5 Million Hours Reliability (MTBF)
Environmental Specs Shock 1,500 G & 0.5 ms (Half sine)
